AMK Products Master Chassis Kit With Drum Brakes 289 1967

AMK Products: 67Z-DRSB
CJ's Low Price:
$304.99
1419465600 24930
Earn 304 RPM Points What's this?
MCK67DRSB

Product Description

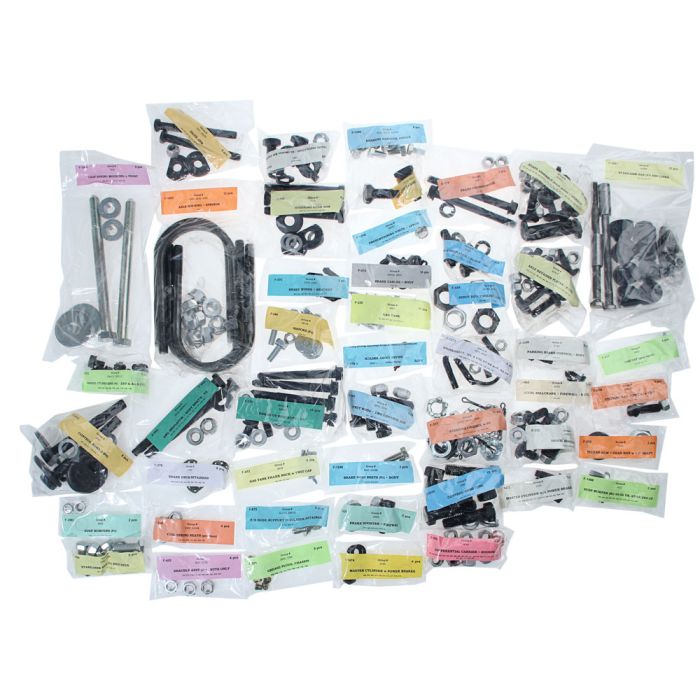

AMK Products Master Chassis Kit for 1967 Mustangs with a 289 Engine and Drum Brakes.

This Master Chassis Kit from AMK Products includes 347 total pieces of factory correct, OE style fasteners that are required to properly reassemble your 1967 Mustang's chassis in one convenient kit! The kit is specifically assembled for 1967 Mustangs with a 289 V8 engine and drum brakes.

AMK Products' Master Chassis Kit includes individually packaged sets of hardware for various applications on your 1967 Mustang. Each package is thoroughly labeled so you know exactly where it goes on your Mustang. The individual sets of hardware also include the total number of pieces that are required for the specific application.

Master Chassis Kit Includes:
- Accelerator Bellcrank to Firewall: Hex Washer Head Sheet Metal Screws (3)
- Axle Housing to Springs: 5-1/2" U-Bolts, Flange Nuts (12)
- Axle Retainer Plates: T-Bolts, Lock Nuts (16)
- Front Drum Brake Assembly to Spindle: T-Bolts, Lock Nuts (16)
- Brake Cables to Body: Hex Washer Head Screws, Retainers, Washers, Nut (10)
- Brake Drum Retainers: Green Push-On Retainers (6)
- Front Brake Hose Brackets to Body: Hex Head Heavy-Duty Machine Screws (2)
- Brake Hoses to Bracket: U-Clips (3)
- Brake Light Switch: Retaining Pin (1)
- Coil Spring Perches: Hug-Lok Nuts (4)
- Lower Control Arms to Shock Tower: Grade-8 Cam Bolts, Nuts, Washers (8)
- Upper Control Arms to Shock Tower: Grade-8 Knurled Bolts, Nuts, Split Washers (12)
- Front Tubular Crossmember: Special Hex Countersunk Bolts (2)
- Differential Carrier to Housing: Cadmium Lock Nuts, Copper Washers (20)
- Driveshaft: 5/16" U-Bolts, Lock Nuts (6)
- Engine Body Brackets: Flange Bolts and Nuts (12)
- Engine Insulator to Block: Hex Bolts and Split Washers (8)
- Engine Insulator to Body Brackets: 4-3/4" Bolts, Flange Nuts, Flat Washers (6)
- Single Exhaust Hanger: Hex Machine Screws (8)
- Pop Open Gas Cap: Phillips Flat Sheet Metal Screws (4)
- Gas Tank: Hex Washer Head Sheet Metal Screws (11)
- Gas Tank Filler Neck with Twist Cap: Hex Washer Head Sheet Metal Screws (5)
- Chassis Grease Plugs: Hex Plugs (9)
- Idler Arm: Hex Bolts "F", Lock Nuts, Clipped Washers (6)
- Front Eye Leaf Springs: Pointed Hex Bolts, Flange Nuts, Washers (6)
- Master Cylinder without Power Brakes: Hex Screw and Split Washer Assembly (2)
- Power Steering Hose Support Insulator Retainer: Hex Washer Head Machine Screws (2)
- Parking Brake Control to Body: Phillips Pan Head Screw/External Tooth Washer Assembly, Caged/Flange Nuts (6)
- Pitman Arm to Gear Box with 1.0" Shaft: 1-1/8" Hex Jam Nut, Split Washer (2)
- Proportioning Valve to Apron: 5/16"-18 Hex Washer Head Machine Screw (1)
- Rear Shackle Assembly: Lock Nuts (4)
- Front Shock Brackets: Lower Heavy-Duty Carriage Bolts, Flange Nuts (12)
- Front Shocks: Hex Screw/External Tooth Washer Assembly "ANCHOR", Nuts, Washers (12)
- Front Stabilizer Bar to Body: Hex Bolts, Lock Nuts (8)
- Front Stabilizer End Links: Bolts, Retainers, Bushings, Spacers, Nuts (22)
- Steering Gear Box: Hex Bolts, Clipped Flat and Split Washers (9)
- Steering Linkage with Power Steering: Slotted Nuts, Cotter Pins, Flat Washer (23)
- Steering Rag Joint without Tilt: 12-Point Bolt, Lock Nuts (3)
- Strut Rod Threaded Ends to Body: Lock Nuts (4)
- Strut Rods to Lower Control Arm: Hex Bolts, Lock Nuts (8)
- Rear Suspension Bumper: Hex Screws (2)
- Front Suspension Bumpers: Hug-Lok Nuts (2)
- Transmission Crossmember: Hex Washer Head Bolts, Lock Nuts, Flat Washer (5)
- Transmission Insulator: (10)
- Wheel Cylinders: 5/16"-18 Hex Screw and External Tooth Washer Assembly (8)

Buying individual sets of hardware for your 1967 Mustang can be expensive and time consuming if you're not sure which hardware you need. This Master Chassis Kit makes it easy by including 85% of the original, factory correct hardware that specifically fits your 1967 Mustang with a 289 V8 engine and drum brakes. With a Master Chassis Kit from AMK Products, you will not only save time and money, but you will have the confidence knowing your 1967 Mustang is going to be restored with the finest factory correct hardware on the market.

AMK Products produces the most factory correct hardware for your classic Mustang. No matter what kind of Mustang you're building, there's no company better for nuts and bolts than AMK Products!
