AMK Products Underhood Detailing Kit 1969

AMK Products: 69Z-UH
CJ's Low Price:
$119.99
1419379200 37500
Earn 119 RPM Points What's this?
AMK Products Underhood Detailing Kit 1969

Product Description

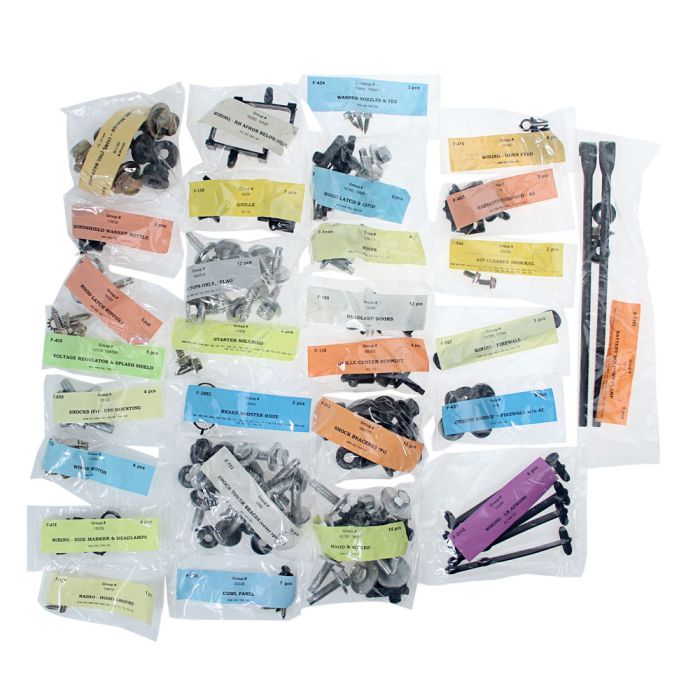

AMK Products Underhood Detailing Kit for all 1969 Mustangs.

This Underhood Detailing Kit from AMK Products includes 176 total pieces of original style, factory correct fasteners that are intended to substantially improve the overall underhood appearance of your assembled 1969 Mustang in one convenient kit! If your newly restored 1969 Mustang is suffering from incorrect or unsightly mounting hardware under the hood, this kit is a must have for that final touch.

AMK Products' Underhood Detailing Kit includes individually packaged sets of hardware for numerous parts under the hood of your 1969 Mustang. Each package of hardware is thoroughly labeled so you know exactly where it goes on your Mustang. The individual sets of hardware also include the total number of pieces that are required for the specific application. This kit will work on all 1969 Mustangs.

Underhood Detailing Kit Includes:
- Air Cleaner Snorkel: Hex Washer Head Screws (2)
- Battery Hold Down Clamp: J-Hooks, Hex Washer Head Sheet Metal Screw, Nut/Conical Spring Washer Assembly (5)
- Brake Booster Hose: Black Flat Wound Spring Clamps (2)
- Cowl Braces to Cowl: Hex Flange Screw/Conical Spring Washer Assembly, Bolts, Flange Nuts (8)
- Cowl Panel: Hex Washer Head/Phillips Pan Head Sheet Metal Screws (7)
- Fender Tops Only "FLAG": Hex Screw/Conical Spring Washer Assembly (12)
- Front Shocks (Top Mount Only): Hex Screw/External Tooth Washer Assembly "Anchor" (4)
- Front Shock Brackets: Lower Heavy Duty Carriage Bolts, Flange Nuts (12)
- Grille: Hex Washer Head Screw, Plastic Rivets, Nut (7)
- Grille Center Support: Hex Screw/Conical Spring Washer Assembly, U-Nuts (4)
- Headlight Doors: Phillips Oval Head/Pan Head/Round Washer Head Screws, Nuts (12)
- Heater Assembly to Firewall without Air Conditioning: Stamped Nuts, Sealer Washers (5)
- Hood and Hinges: Hex Screw/Conical Spring Washer Assembly, U-Nuts (14)
- Hood Latch and Catch: Hex Screw/Conical Spring Washer Assembly, U-Nuts (6)
- Hood Latch Support: Hex Screw/Conical Spring Washer Assembly (3)
- Horns: Hex Screw/Conical Spring Washer Assembly, Serrated Flange Nuts (4)
- Radiator Fan Shroud: Special Hex Washer Head Screws, Spring Nuts (8)
- Radio Hood Ground: Hex Washer Head Sheet Metal Screw (1)
- Shock Tower Braces: Hex Screw/Conical Spring Washer Assembly, Flange Nuts (24)
- Starter Solenoid: Hex Washer Head Sheet Metal Screws "D" (2)
- Voltage Regulator and Splash Shield: Hex Washer Head Sheet Metal Screws "D", External Washer (5)
- Washer Nozzles and Tee: Hex Washer Head Sheet Metal Tapping Screws (3)
- Windshield Washer Bottle: Hex Washer Head Sheet Metal Screw/Flat Washer Assembly (3)
- Windshield Wiper Motor: Hex Washer Head Screw/External Tooth Washer Assembly, Hex Washer Head Sheet Metal Screw (4)
- Wiring for Horn Feed: Nylon "O" Clips (4)
- Wiring for Side Markers and Headlights: Nylon "O" Clips (4)
- Wiring to Driver Side Aprons: 4" Nylon Straps (6)
- Wiring to Firewall: 4" Nylon Straps (1 for Washer Hose) (3)
- Wiring to Passenger Side Apron Below Relay: D-Shaped Nylon Retainers (2)

Buying individual sets of hardware for under the hood of your 1969 Mustang can be expensive and time consuming if you're not sure which hardware you need. This Underhood Detailing Kit makes it easy by including factory correct fasteners that specifically fit your 1969 Mustang. With an Underhood Detailing Kit from AMK Products, you will not only save time and money, but you will have the confidence knowing that the parts under the hood of your 1969 Mustang will be fastened or assembled with the finest hardware on the market.

AMK Products produces the most factory correct hardware for your classic Mustang. No matter what kind of Mustang you're building, there's no company better for nuts and bolts than AMK Products!

*Not for use on 1969 Shelbys, Shelby specific kits are available.
