ARP Wheel Studs Rear 3 Inch 1965-2004

ARP: ARP 100-7703

Regular Price: $20.99

Special Price: $16.79

1490140800 18333
Earn 16 RPM Points What's this?
1490054400 1490918400
On Sale: Up to 30% Off Sale!

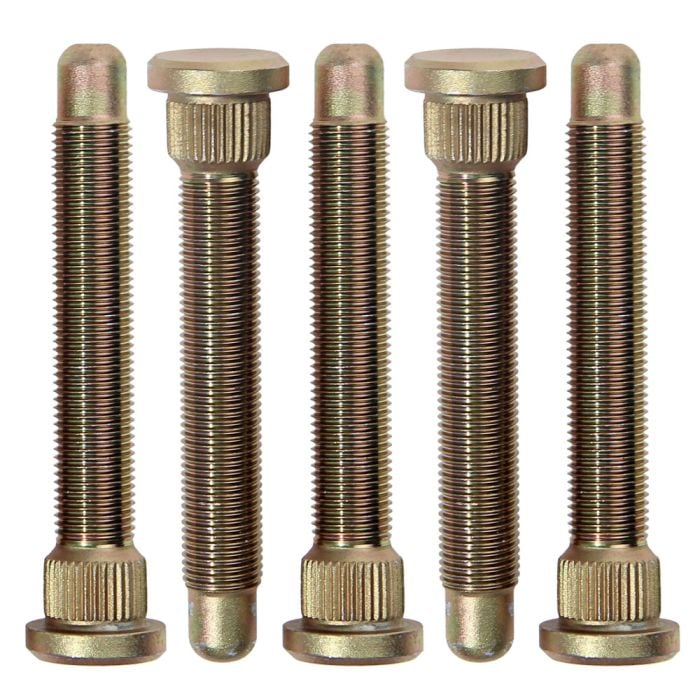

ARP Wheel Studs Rear 3 Inch 1965-2004
ARP Wheel Studs Rear 3 Inch 1965-2004 ARP Wheel Studs Rear 3 Inch 1965-2004

Product Description

ARP 3 Inch Rear Wheel Studs for all 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004 Mustangs.

Replace your broken or missing factory lug studs with this set of extended wheel studs from ARP. These extended wheel studs are made from 8740 chromoly steel which meets NHRA requirements for safety to prevent a possible lug nut or stud failure. This set of rear wheel studs features a 3 inch threaded length stud with a knurl length of 0.400 in.

- Press-in design
- Made from 8740 chromoly steel
- Rated at 190,000 psi
- Cadmium plated finish
- Made in USA

These ARP extended wheel studs are cadmium plated preventing corrosion build up on the wheel stud. These high quality wheel studs are hardened to a tensile strength of 190,000 psi to provide superior strength. Tensile strength is the maximum stress that a material can withstand while being stretched or pulled before failing or breaking.

*This set of extended wheel studs from ARP will need to have open ended lug nuts

The Mustang is held together by a myriad of nuts, bolts and screws, which allow it to work despite the incredible pressures and forces acting upon it. However, what happens if that hardware fails, or you need to upgrade it to handle additional performance? With the hardware from ARP, you're getting the best products on the market, and those trusted by Formula 1, Indy Car, NHRA and NASCAR. So with that being said, you know you are getting the best hardware money could buy.


Installation Instructions

Mustang Installation

Product Reviews

Write a review
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 20.44ms
  • bvseo-msg: HTTP status code of 404 was returned;

Product Questions

ARP #100-7703 / ARP Wheel Studs Rear 3 Inch 1965-2004 / knurl length of 0.400 in. Can you tell me the Knurl diameter? I want similar studs for the front rotors of a 68 Mustang. thx

Asked by: Bobj
knurl is 0.625 in. dia and .400 long
Answered by: tom cjpp
Date published: 2016-01-13

How many studs come in a pack?

Asked by: Robd
5 enough for one wheel
Answered by: tom cjpp
Date published: 2016-01-14

I need a 10m lug bolt 1.25 thread 2" or longer. Do you have anything?

Asked by: Rancher
We may. Browse our hardware selection to see if we have what you need. If you could tell me what purpose you're looking for on your Mustang, I can further advise you where to look, but we don't sort hardware by sizes.
Answered by: CJ Pony Parts
Date published: 2015-10-05
