Classic Instruments 6-Gauge Set Bomber Series With Scott Drake Instrument Bezel 1965-1966

CJ's Part Number: CIBK-V
MSRP: $867.95
From:
CJ's Low Price:
$824.99
1408665600
Earn 790 RPM Points What's this?
Classic Instruments 6-Gauge Set Bomber Series With Scott Drake Instrument Bezel 1965-1966
Play Classic Instruments 6-Gauge Set Bomber Series With Scott Drake Instrument Bezel 1965-1966 Video 1

Product Description

Classic Instruments Bomber Series 6-Gauge Set with a Scott Drake Instrument Bezel for 1965 and 1966 Mustangs.

Upgrade the cockpit of your Mustang with this stealthy gauge set. Capture the look and feel of WWII era aircraft instruments with Classic Instruments Bomber Series Gauge Set. This is a universal gauge set but it fits 1965-1966 GT instrument bezels.

This set of gauges includes a 3-3/8" speedometer and tachometer and four 2-1/8" gauges to cover the fuel level, oil pressure, water temperature and volts. The speedometer increases the reading to 200 MPH and the tachometer ends at 10,000 RPM. Bomber Series gauges are some of the most unique gauges offered by Classic Instruments. WWII era aircraft instruments found their way into many post war hot rods and land speed contenders. Steve Moal captured the look and feel of the aircraft gauges and improved them to fit the Mustangs perfectly. The large speedometer features LED turn signal and high beam indicator lights in "adjuster knobs".

All necessary sending units are included. A fuel sending unit is not included but the fuel gauge is set to work with the stock 75-10 ohm fuel sender. All gauges are 12 volt electronic. The gauges will mount with a supplied u-bracket. All installation hardware is included as well as an easy to follow step-by-step instruction manual to wire in all your gauges.

Gauges Included:
- 3-3/8" 200 MPH Speedometer
- 3-3/8" 10,000 RPM Tachometer
- 2-1/8" Fuel Level
- 2-1/8" Oil Pressure
- 2-1/8" Water Temperature
- 2-1/8" Volts

The Scott Drake Instrument Bezel features two 3-3/8” holes for a tachometer and speedometer, four 2-1/16” holes for additional gauges of your choice and integrated turn signal and high beam indicator lenses for use with an OEM bulb and connector. The 2-1/16" holes will need enlarged slightly for the 2-1/8" gauges to fit.

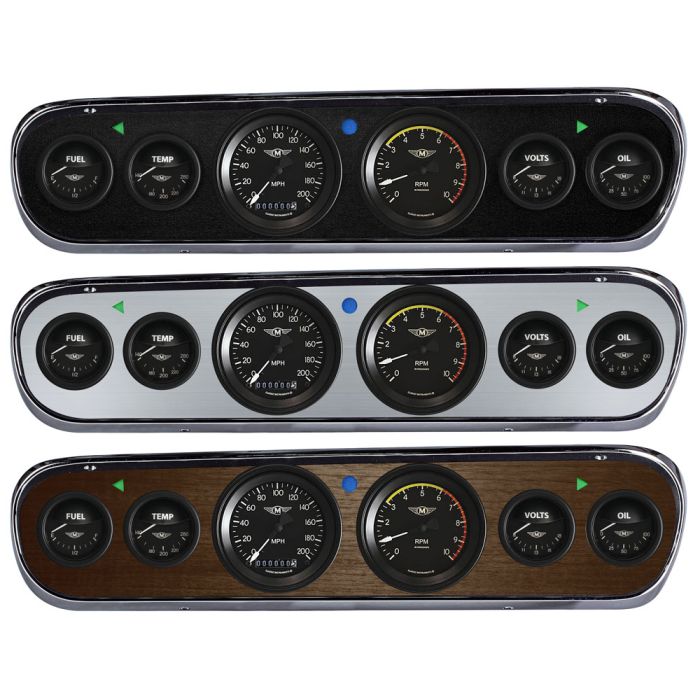

Available with a brushed aluminum insert, a metal backed walnut insert on aluminum, or in a black camera case finish. These high quality bezels are precision crafted and will replace your stock unit exactly. New from Scott Drake, this custom Six Hole Instrument Bezel is a great way to upgrade your gauge set while retaining the factory appearance in your 1965-1966 Mustang. 6-gauge bezels were factory in 1965-1966 GT Mustangs.

*Outer holes in bezel are 2-1/16”, and will need to be opened up slightly for proper fit.

Classic Instruments offers styled gauges with modern technology that will last much longer than any factory gauges. Founded in 1977 by a long time hot rodder and racer, Classic Instruments was created to serve fellow car owners by making better and more stylish gauges. Classic Instruments focuses on quality craftsmanship and customer satisfaction. Each and every gauge is designed, assembled and calibrated with pride and quality right here in Boyne City, Michigan.

Similar Mustang Parts

similar mustang parts More Mustang Instrument Panel Area

Mustang Applications

This product will fit the following Ford Mustang years:

Product Reviews

Write a Review

Product Video

By Bill Tumas: We’re here with a custom gauge cluster for your ’64 through ’66 Mustang from Classic Instruments and Scott Drake. We’ve created these kits using Scott Drake’s new six-gauge Bezel, a set of classic instruments gauges. The Bezels are available in the black shown here, the brushed aluminum, as well as any wood-grain finish to match your GT interior. The gauges are going to be available in six different styles, and every kit includes six gauges, including temperature, gas, 200-mile speedometer, tachometer with built-in shift light, voltage as well as oil pressure. All the gauges are fully electric.

The kit’s going to come with everything necessary to install the cluster in a ’65 through ’66 Mustang. It includes setting units, all wiring, this control box that you wire everything to, and then, wire the sensors to as well to make the insulation easier as well as a programmable shift light. These custom gauge Bezel kits from Scott Drake and Classic Instruments are a great way to modernize the dash of your ’64 through ’66 Mustang.
