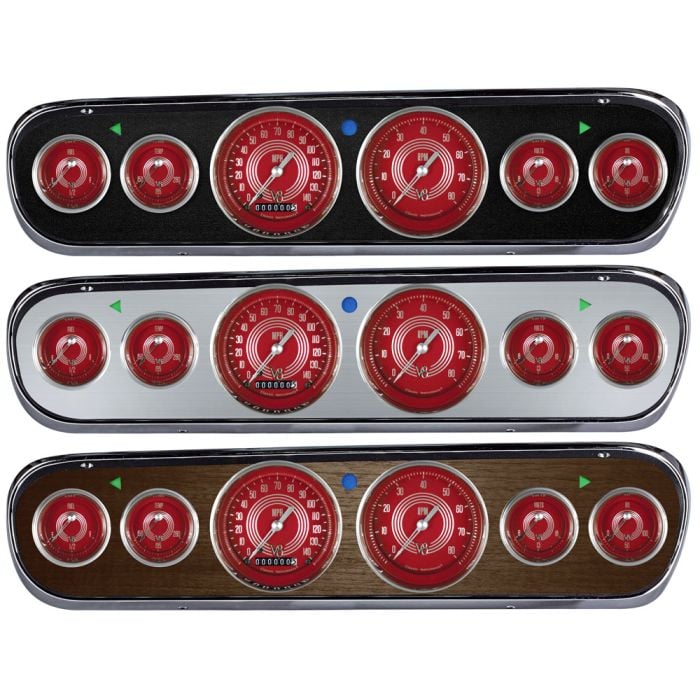

Classic Instruments V8 Red Steelie Series 6-Gauge Set with a Scott Drake Instrument Bezel for 1965 and 1966 Mustangs.Classic Instruments is proud to present their first red faced gauges. The V8 Red Steelie Series Gauge Set is a great way to add a vintage V8 styling to your Mustang interior. This is a universal gauge set but it fits 1965-1966 GT instrument bezels.
This set of gauges includes a 3-3/8" speedometer and tachometer and four 2-1/8" gauges to cover the fuel level, oil pressure, water temperature and volts. The speedometer increases the reading to 140 MPH and the tachometer ends at 8,000 RPM. Unique dial faces are designed with spun aluminum. Chrome plated pointers are unique to the V8 Red Steelie series. Each gauge face has a trademarked chrome V8 emblem that signifies American Hot Rod Heritage. The light diffusers have laser etched indices lining up with the indices on the gauge faces.
All necessary sending units are included. A fuel sending unit is not included but the fuel gauge is set to work with the stock 75-10 ohm fuel sender. All gauges are 12 volt electronic. The gauges will mount with a supplied u-bracket. All installation hardware is included as well as an easy to follow step-by-step instruction manual to wire in all your gauges.
- 3-3/8" 140 MPH Speedometer
- 3-3/8" 8,000 RPM Tachometer
- 2-1/8" Fuel Level
- 2-1/8" Oil Pressure
- 2-1/8" Water Temperature
- 2-1/8" Volts
The Scott Drake Instrument Bezel features two 3-3/8” holes for a tachometer and speedometer, four 2-1/16” holes for additional gauges of your choice and integrated turn signal and high beam indicator lenses for use with an OEM bulb and connector. The 2-1/16" holes will need enlarged slightly for the 2-1/8" gauges to fit.
Available with a brushed aluminum insert, a metal backed walnut insert on aluminum, or in a black camera case finish. These high quality bezels are precision crafted and will replace your stock unit exactly. New from Scott Drake, this custom Six Hole Instrument Bezel is a great way to upgrade your gauge set while retaining the factory appearance in your 1965-1966 Mustang. 6-gauge bezels were factory in 1965-1966 GT Mustangs.
*Outer holes in bezel are 2-1/16”, and will need to be opened up slightly for proper fit.
Classic Instruments offers styled gauges with modern technology that will last much longer than any factory gauges. Founded in 1977 by a long time hot rodder and racer, Classic Instruments was created to serve fellow car owners by making better and more stylish gauges. Classic Instruments focuses on quality craftsmanship and customer satisfaction. Each and every gauge is designed, assembled and calibrated with pride and quality right here in Boyne City, Michigan.
Similar Mustang PartsMore Mustang Instrument Panel Area
Product ReviewsWrite a review
You Might Also Like
Regular Price: $94.99
Special Price: $85.49
Regular Price: $104.99
Special Price: $94.49
From:CJ's Low Price:$978.99
From:CJ's Low Price:$867.99
The kit’s going to come with everything necessary to install the cluster in a ’65 through ’66 Mustang. It includes setting units, all wiring, this control box that you wire everything to, and then, wire the sensors to as well to make the insulation easier as well as a programmable shift light. These custom gauge Bezel kits from Scott Drake and Classic Instruments are a great way to modernize the dash of your ’64 through ’66 Mustang.
