COMP Cams Magnum 292H Hydraulic Flat Tappet Camshaft Set with a 2500 to 6500 RPM Range for Mustangs with a 429 or 460 Engine.Available with camshaft only, camshaft and lifers, small kit or complete kit.
This hydraulic flat tappet camshaft will fit 1968-1994 429 and 460 V8 engines.
Magnum cams generate great high RPM power. The can be used with mild ratio rocker arms and traditional performance valve springs as they are easy on valve train parts. These camshafts like compression ratios of 9.5:1 and higher. A torque converter and gear change is really needed. The larger Magnum cams are a little lazy at low RPMs.
The Magnum 292H camshaft is for street/strip use. Good power is accompanied by a very rough idle. A 3000+ stall is required.
- RPM Range: 2500 to 6500
- Valve Timing: 0.006
- Lobe separation (degrees): 110
- Intake Centerline (degrees): 106
- Valve Lash: Hydraulic
- Duration: Intake 292/Exhaust 292
- Duration @ .050" Lift: Intake 244/Exhaust 244
- Valve Lift: Intake 0.560/Exhaust 0.560
- Lobe Lift: Intake 0.323/Exhaust 0.323
- Camshaft Only
- Camshaft and Lifters
- Small Kit - Camshaft, Lifters, Timing Chain Set and Assembly Lube

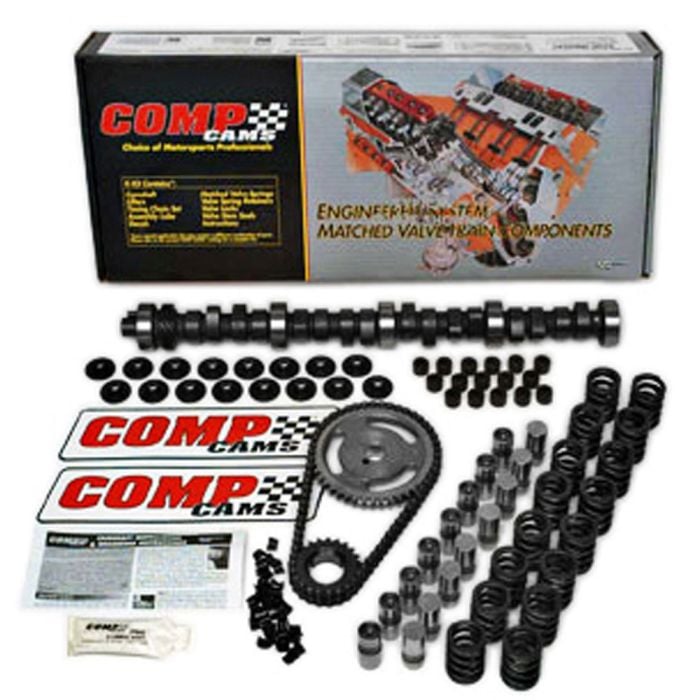

- Complete Kit - Everything in Small Kit plus Valve Springs, Valve Spring Retainers, Valve Locks and Valve Stem Seals
