COMP Cams Camshaft Set Xtreme Energy 256H Hydraulic Flat Tappet 1200-5200 RPM 351C

CJ's Part Number: 322414-V
MSRP: $187.01
CJ's Low Price:
1432857600 41015
Earn 149 RPM Points What's this?
322414-V 322414-V_1 322414-V_2 322414-V_3 322414-V_4 322414-V_5 322414-V_6

Product Description

COMP Cams Xtreme Energy 256H Hydraulic Flat Tappet Camshaft Set with a 1200 to 5200 RPM Range for Mustangs with a 351C Engine.

Available with camshaft only, camshaft and lifers, small kit or complete kit.

This hydraulic flat tappet camshaft will fit 1970-1982 351C and 351M-400M V8 engines.

Xtreme Energy camshafts are a best seller due to their excellent all-around performance in street applications. Increased responsiveness and more area under the curve are delivered due to quicker opening lobe profiles. More vacuum is created which allows a step up in duration for greater performance. COMP Cams roller rockers and matched valve springs work best with this camshaft. COMP Cams roller rockers and matched valve springs work best with these camshafts. Other performance parts are recommended and sometimes required (intake manifold, headers, etc.) for optimum performance.

The Xtreme Energy 256H features a good idle and provides strong torque through low-RPM and mid-RPM ranges.

Camshaft Specifications:
- RPM Range: 1200 to 5200
- Valve Timing: 0.006
- Lobe separation (degrees): 110
- Intake Centerline (degrees): 106
- Valve Lash: Hydraulic
- Duration: Intake 256/Exhaust 268
- Duration @ .050" Lift: Intake 212/Exhaust 218
- Valve Lift: Intake 0.487/Exhaust 0.493
- Lobe Lift: Intake 0.283/Exhaust 0.286

Options Include:
- Camshaft Only
- Camshaft and Lifters
- Small Kit - Camshaft, Lifters, Timing Chain Set and Assembly Lube

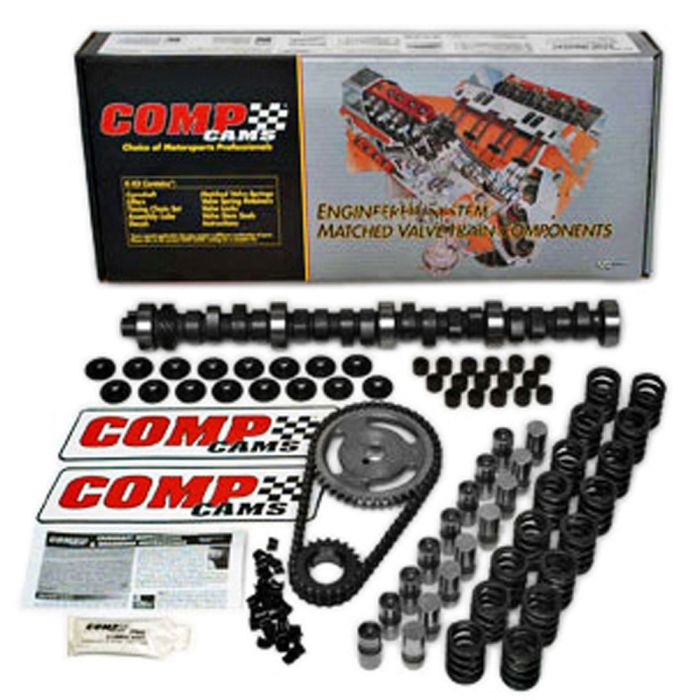

- Complete Kit - Everything in Small Kit plus Valve Springs, Valve Spring Retainers, Valve Locks and Valve Stem Seals

Mustang Applications

This product will fit the following Ford Mustang years:
