Dakota Digital Gauge Instrument Cluster Assembly VHX With Silver Alloy Style Face 1987-1989

CJ's Part Number: VHX87S-V
MSRP: $795.00
CJ's Low Price:
$755.25
1481328000 56393
Earn 755 RPM Points What's this?

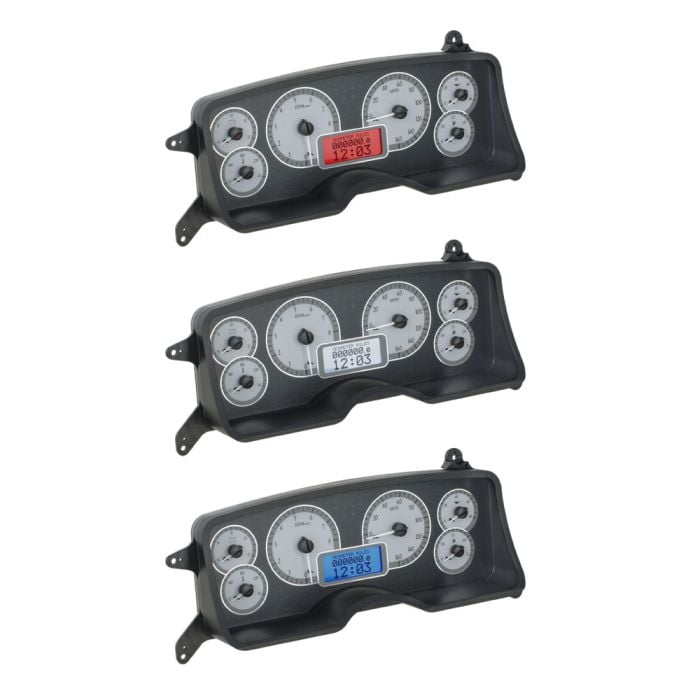

Dakota Digital Gauge Instrument Cluster Assembly VHX With Silver Alloy Style Face 1987-1989
Dakota Digital

Product Description

Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face for all 1987, 1988 and 1989 Mustangs.

Impress your fellow muscle car enthusiasts with this Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face that is currently available at CJ Pony Parts. This gauge assembly fits right into your OEM bezel, and will give your gauge display the upgrade that your 1987, 1988 or 1989 Mustang deserves.

Gauge Instrument Cluster Features:
- Silver Alloy Style Gauge Faces
- Fully Lit Needles & Backlit Faces in Your Choice of Red, White or Blue
- Highly Visible LCD Message Center
- User-Customized Display Feedback
- Built-In Illumination
- Laboratory-Grade Solid State Sensors for Unparalleled Accuracy
- Works with Other Stock or Aftermarket Sensors
- Micro-Controlled Precision Stepper Motor
- Includes a Demonstration Mode
- Completely Adjustable Warning Points
- Easy Set-up & Troubleshooting
- Ensures Secure Wire Termination
- Makes Metric Conversions

These gauge instrument cluster assemblies from Dakota Digital features display feedback that is user-customizable, backlit faces and highly visible, fully lit needles. It is truly highlighted by a LCD message center which provides a numerical display for your gages that is easy to read and can be cycled through with a push of a button. This message center has many functions including presenting you with adjustable warning points that make you aware of any issues that may be going on with your ’87-’89 Mustang. The message center has the option to switch to metric conversions in case you prefer using KPH instead of MPH, as well as a Demonstration Mode that provides you with instrument readouts while your car is standing still.

The LCD message center will additionally show your 1987-1989 Mustang’s odometers, a clock and a variety of performance readings that can reset by hand during normal operation. These reading include a high speed recall, high RPM recall, 0-60 MPH (0-100 KPH) time, 1/4 mile time and 1/4 miles end speed (trap speed).

Gauge Displays Include:
- Speedometer - 0-160 MPH Analog, 0-255 MPH Digitally
- Oil Pressure - 0-80 PSI Analog and Digitally
- Water Temperature - 140-220F Analog, 0-300F/0-150C Digitally
- Fuel Level - Empty-Full Analog, 0-99% Digitally
- Tachometer - 0-8,000 Analog, 0-9,990 Digitally
- Voltmeter - 8-17 VDC Analog and Digitally

These gauges have a silver alloy style presentation that is complemented by your choice of an enticing red, white or blue light display that turns on at night from a built-in illumination. This illumination is activated when you trigger your Mustang’s parking lights or headlights. This VHX system assembly also exhibits your various indicators including your turn signals, high beams, cruise control, check engine, parking brake and wait to start (when equipped).

This gauge assembly has additional characteristics that aren’t immediately seen by the eye, including a micro-controlled precision stepper motor and laboratory-grade solid state sensors that provide unparalleled accuracy. These sensors are used for your Mustang's water temperature, oil pressure and speedometer pulse generator. The speed sensor will effectively translate a mechanical speedometer wire to digital when applicable and is completely programmable to various tire sizes and rear-end gearing. The oil pressure & water temp sensors include 1/8" NPT sensors, as well as bushings to adapt to 1/4", 3/8", 1/2" NPT. The other gauges work with any stock or aftermarket sensor.

Additional Components:
- Universal Sender Pack
- Control Box
- 36" CAT5 Cable
- Ford Speed Adapter
- Turn Signal Harness
- Indicator Block-Off Lens

This VHX gauge instrument cluster features an outboard control module that allows for your system to be more simple and clean. Instead of hooking up all of the wiring straight to the instruments, they are routed to the control module, which is conveniently stored under the dash. A single ribbon cable then connects the control module to the display, eliminating any potential clutter. This VHX system has on-board diagnostics that aide the troubleshooting process, as well as terminal strips that make sure the termination of a wire is safe & secure.

*Instrument bezel is not included (sold separately).

Order a Dakota Digital VHX Gauge Instrument Cluster Assembly with a Silver Alloy Style Face for your 1987, 1988 or 1989 Mustang from CJ Pony Parts today!
