Eastwood MIG Spot Weld Kit.Until now, you would spot weld primarily by using a large resistance welder, but now you can use your MIG welder together with this Spot Welding Kit from Eastwood to achieve the same professional results.
Spot welding is accomplished by clamping two panels together and fusing them with a number of sequentially placed welds, rather than in a continuous bead, to hold the panels together. This kit is designed to be used with Eastwood's welders as well as any other brand welder that utilizes a Tweco style MIG torch. The combination of the Spot Pliers and Spot Nozzle assures complete welds all the way through, and exact duplication of each spot weld.
For 18-gauge steel, or if you're using a less-than-175-amp MIG welder, simply use the supplied double-ended HSS drill bit to drill a 0.187" pilot hole in the top panel only, and then complete the spot weld as usual. The pilot hole serves to assure complete and full penetration from the top to the bottom panel. This type of weld is far greater in strength than a simple resistant spot weld, but produces the exact OE look, with greater weld strength.

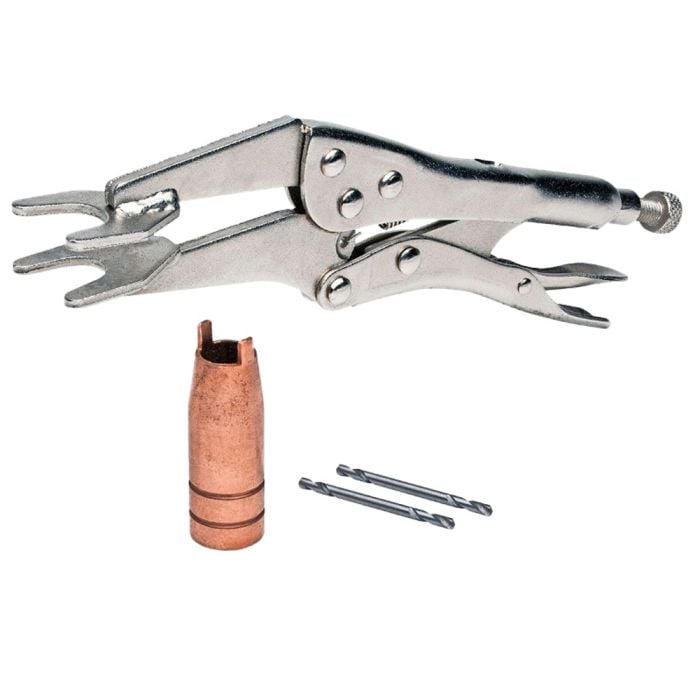

MIG Spot Weld Kit Includes:
-Spot Weld Nozzle (fits Eastwood welders and other Tweco style torches)
-Locking Spot Weld Pliers
-Two 3/16" Double-Ended Drill Bits
Similar Mustang PartsMore Sheet Metal Tools
This product will fit the following Ford Mustang years:
Product ReviewsWrite a review
Eastwood MIG Spot Weld Kit is rated out of 5 by 6.
Rated 1 out of 5 by manny from doesn't work with my eastwood welder I'm afraid I won't get the chance to find out how well this product works as it will not work with the mig250 eastwood welder that I bought.Its supposed to work with any eastwood welder. not happy.
Date published: 2015-06-15
Rated 5 out of 5 by Gyro from Eastwood MIG Spot Weld Kit I just tried the kit and it worked great. I spot welded 2 18G Gauge sheet metal together. I have a Lincoln welder and set it up per the instructions and the weld was perfect. Good penetration with about a 3/16 melted spot on the back side. I have not tried the spot welder with a drilled hole on one side yet. Provided you set the welder up correctly it should perform just as well in that mode.
Date published: 2015-12-24
Rated 5 out of 5 by D Palmer from Very Happy with this I bought this in September to make my life easier in replacing the full rockers on both sides of my '72MGB-GT. I also bought the MIG135, although I also have a Clarke 100E with the appropriate Tweco style torch. The tool works just like they show in the video and for me has absolutely been worth the money.
Date published: 2014-11-09
Rated 3 out of 5 by yjclunker from works good Doesn't fit my Miller but was able to remove treaded part of tip and wrap tape around base of my torch and use it. With that said after a few panels welded in I got the feel of it and worked great.
Date published: 2015-06-30
Rated 5 out of 5 by ironwilbur from I recommend This kit I am a beginner welder and this kit makes me look good. Once I figured out the wire speed and heat settings Just about 30 min of practice and wa-la spot welds.
Date published: 2015-07-12
Rated 4 out of 5 by Autospecialtycenter from MIG Spot Weld Kit Extremely simple but highly effective for this application.
Date published: 2015-12-30
Will this work with a Lincoln Power Mig 140c?
It fits Eastwood welders and other Tweco style torches
Date published: 2016-04-28
