AMK Products Master Engine Fastener Kit With Cast Iron Water Pump 289 HiPo 1966-1967

AMK Products: 66Z-SBH
CJ's Low Price:
$107.99
In StockOrders placed today will ship tomorrow1410912000
Earn 107 RPM Points What's this?
EFK325
EFK325 EFK325_1

Product Description

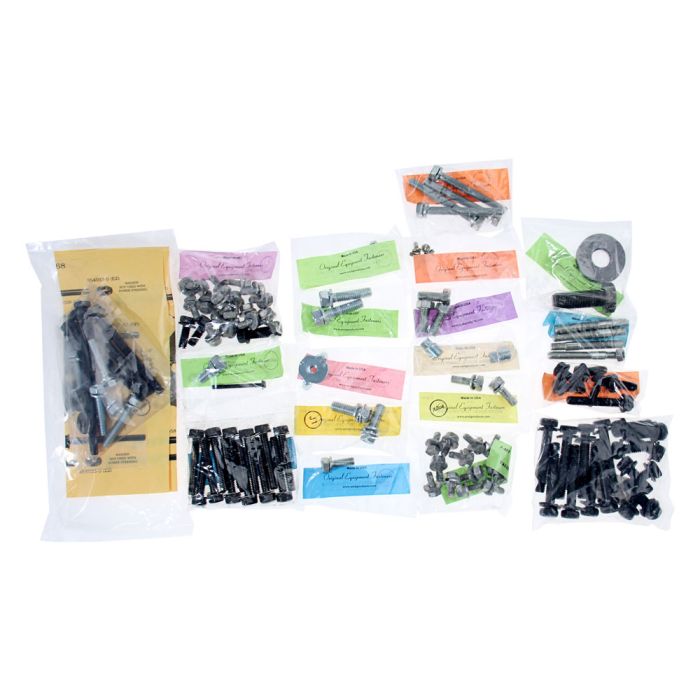

AMK Products Master Engine Fastener Kit for 1966-1967 Mustangs with a 289 HiPo Engine Equipped with a Cast Iron Water Pump.

This Master Engine Fastener Kit from AMK Products includes 115 total pieces of factory correct, OE style fasteners that are required to properly reassemble the engine components which attach to the long-block on your 1966-1967 Mustang's 289 HiPo V8 engine. This kit is specifically assembled for 1966-1967 Mustangs with a 289 HiPo engine equipped with a cast iron water pump.

AMK Products' Master Engine Fastener Kit includes individually packaged sets of hardware for various applications on your 1966-1967 Mustang's 289 HiPo engine. Each package is thoroughly labeled so you know exactly where it goes on your small block High Performance engine. The individual sets of hardware also include the total number of pieces that are required for the specific application. Most of the included fasteners are either meticulous reproductions of the originals or new old stock!

Master Engine Fastener Kit Includes:
- Air Cleaner: Stamped Wing Nut (1)
- Carburetor: Studs, 7/16" Nuts (8)
- Crank Pulley: Hex Place Bolts (3)
- Crankshaft Damper: Hex Bolt, Flat Washer (2)
- Distributor: Hex Screw/Split Washer Assembly (1)
- Distributor Points and Condenser Dual Point: Slot Pan Head Machine Screws (5)
- Engine Block Drain Plugs: External Hex Pipe Plugs (2)
- Engine Fan: 2-3/4" Hex Screw/Split Washer Assembly (4)
- Exhaust Manifolds: Special "Ramp-Lok" Hex Screw/Conical Spring Washer Assembly (16)
- Fuel Pump: Hex Screw/Split Washer Assembly (2)
- Ignition Coil Strap and Bracket: Hex Screw/Split Washer Assembly, Hex Washer Head Screw, Hex Nut (3)
- Intake Manifold: Hex Screw/Flat Sealing Washer Assembly (12)
- Oil Pan: Special Hex Screw/Split Washer Assembly, Hex Screw/Conical Spring Washer Assembly (22)
- Starter: Hex Washer Head Screw/Split Washer Assembly (2)
- Engine ID Tag: Hex Bolt (1)
- Timing Cover: Hex Flange Bolts 5 Short, 1 Long (6)
- Steel Valve Covers: Special Hex Screw/Split Washer Assembly (12)
- Water Neck: Hex Screw/Split Washer Assembly (2)
- Cast Iron Water Pump: Hex Flange Bolts, Hex Place Bolts, Hex Screw/Split Washer Assembly (11)

Buying individual sets of engine hardware for your 1966-1967 Mustang's 289 HiPo engine can be expensive and time consuming if you're not sure which hardware you need. This Master Engine Fastener Kit makes it easy by including authentic style hardware that specifically fits your 1966-1967 Mustang with a 289 HiPo engine equipped with a cast iron water pump. With a Master Engine Fastener Kit from AMK Products, you will not only save time and money, but you will have the confidence knowing your 1966-1967 Mustang's 289 HiPo V8 engine is going to be reassembled with the finest factory correct hardware on the market!

AMK Products produces the most factory correct hardware for your classic Mustang. No matter what kind of Mustang you're building, there's no company better for nuts and bolts than AMK Products!

*Not for use on 1966-1967 289 HiPo engines equipped with an aluminum water pump.
*Not for use on 1966-1967 Shelbys.
