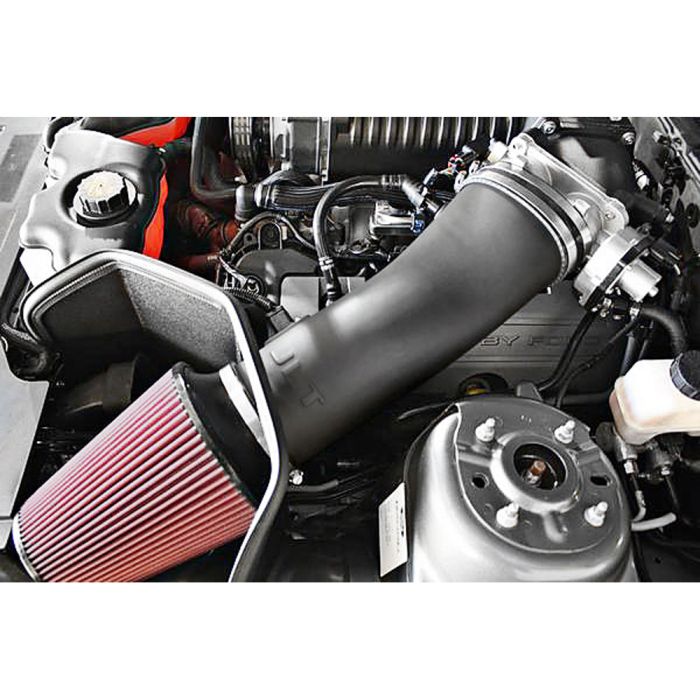

JLT Black Textured Big Air Cold Air Intake Kit for 2011, 2012, 2013 and 2014 GT Mustangs Equipped with a Roush, Whipple or Ford Racing Performance Parts Supercharger.Get an additional boost of 30+ rear wheel horsepower in your supercharged 2011-2014 GT with a custom tune over the stock closed air box that comes with this kit from JLT. Early testing shows this can be used with the stock MAF sensor all the way up to 650 RWHP and well beyond with a MAFia, SCT BA5000 or HPX sensor.
- JLT plastic intake tube with an integrated 123mm MAF housing
- Silicone coupler
- Clamps and hardware
- 5" X 9" Air filter
- Huge ABS heat shield with 2 mounting points and weatherstrip that seals to the hood
- Sound tube cap
- Necessary fitting for automatic cars
The two digit code after each color name in the drop down menu is the Ford paint code. Please verify your Mustang's paint code prior to ordering. CAK130 is a lightly-textured molded black plastic finish. CAK130UA is a painted black finish.
*Requires a custom tune after installation.
*Fits Roush, Whipple and Ford Racing Performance Parts Superchargers ONLY!
Product ReviewsWrite a review
You Might Also Like
/** Note: This is used for related configurable parts to properly display price w/o regular price */?>CJ's Low Price:$1,796.45
JLT Cold Air Kits are available in this carbon fiber finish, black textured plastic, they are also available painted to match the OEM paint on your Mustang. They come with these pre-oiled, reusable S&B power stack filters, include all you need for installation, including heat shields where applicable.
JLT oil separators are a great modification for a supercharged car. They also work really well with naturally aspirated cars as well. They catch oil, stop it from going back into your intake track due to crank case pressure. They're available in both the black or silver finish and come with factory Ford lines making them an easy installation.
In this installation, you'll need a 3/8-inch ratchet, 13-millimeter socket, 10-millimeter socket, six-inch extension, flat head screwdriver, Phillips head screwdriver, T20 torx bit, small pick and pliers.
This is JLT's cold air kit for a 2011 to 2013 Mustang that we're going to be installing on this 2013 GT convertible. The first step is to connect a coupler and the air filter to the intake tube. Now we're ready to remove our factory cold air kit. To get to the clamp down here, the intake cover is going to have to come off. In the case of our premium car, strut tower braces are in the way, we're going to have to remove that first. Now I'm going to remove the intake cover by simply pulling upward. Now remove the factory intake sound tube. Before the air tube comes off, we have to disconnect the PCV. Put pressure on the little gray clip upward and slide it off.
We're going to remove the hose clamps for the main inlet tube. Before we can remove the air box, we got to disconnect the mass air sensor. It's a little red tab underneath, slide it back, slide the sensor off. Now we can remove our air box. I'll remove the front part of the box by simply pulling straight back. Now we're going to install the JLT supplied shield. It's going to mount to the stud for the front of the air box and, for the back of it, put it right where the factory bolt was removed from. The last thing we need to do before we can install our new kit is to take the factory mass air sensor out of the original housing. I'm going to use the hardware provided by JLT with the kit and we're ready to install it.
Put it in place and slide the tube over our throttle body. I'm going to make two more connections. Reconnect our sensor. The last step is to reconnect our PCV.
While the new JLT intake does have provisions to hook up your sound tube, we found that JLT sounds good enough on its own, so this really isn't necessary. JLT provides the block off plate for your firewall as well as to block off the intake itself if you're not using the factory sound tube.
Notice our JLT intake kit looks a hell lot better than the stock air box. It's going to make some serious power too. Due to the increase in airflow, you want to pick up SCT XCAL tuner as well. Expect to see about 20 to 30 horsepower, installation no more than 30 minutes. You'll be back in the road in no time.
