K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016

K&N: 63-2592
MSRP: $465.00
CJ's Low Price:
$302.25
1481414400 64499
Increase your EcoBoost F-150's performance even more with this Bully Dog Tuner!
CJ's Low Price:
$429.00
Qty
Earn 302 RPM Points What's this?
K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016
K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 Play K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 Video 1 Play K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 Video 2
K&N

Product Description

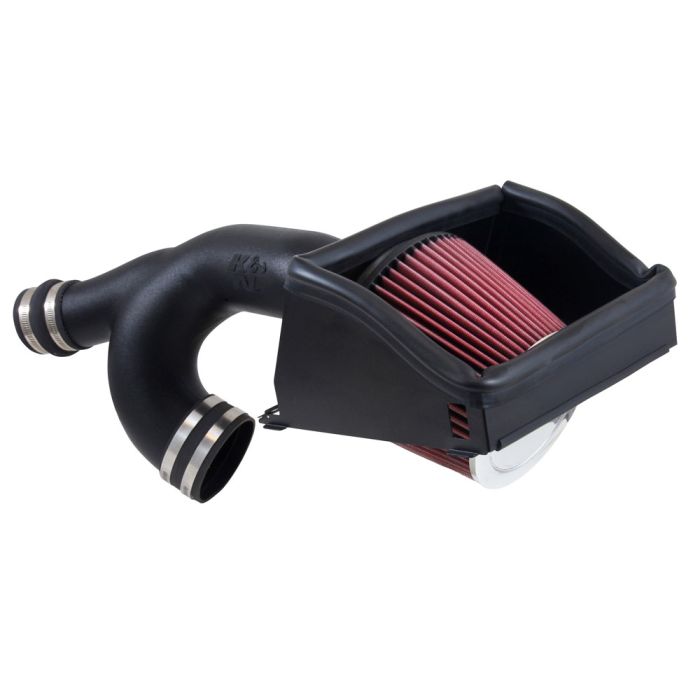

K&N AirCharger Cold Air Intake Kit for all 2015-2016 F-150s with a 3.5L EcoBoost Engine.

Increase your 2015-2016 Ford F-150's horsepower and improve the 3.5L EcoBoost turbo engine's sounds with this K&N AirCharger Cold Air Intake Kit 63-2592 from CJ Pony Parts! You'll be surprised with the sheer sound your upgraded air intake will provide without making any modifications the next time you step on the gas in your F-150.

Engineers at K&N have created the best cold air intake out of free-flowing high density polyethylene tubes to increase your horsepower and improve throttle response. With just 90 minutes of time, zero modifications and a few tools, your supercharged Ford F-150 will be faster, louder and more powerful. What are you waiting for?

Features and Benefits:
- Improves throttle response and engine sound
- Direct-fit replacement for entire factory air intake system
- Easy to install without modifications
- Guaranteed to increase overall horsepower
- Constructed of high density polyethylene tubes
- Includes washable and reusable lifetime air filter
- Lasts up to 100,000 miles before required servicing (depending on driving conditions)

This AirCharger Cold Air Intake will allow your F-150's engine to inhale more air than the original air filter assembly from the Ford factory. More air equals more usable power and better acceleration throughout the turbocharged engine's RPM range. This increased amount of air is directed through the large intake tube and into the F-150 engine's throttle body and turbo inlet, guaranteeing an overall boost in power. The intake tube in this kit accommodates the factory air temperature sensor.

Included in this kit is a high-flow, chrome-topped K&N air filter and heat shield that will install directly into the original air box space. K&N's cone shaped air filter has been designed and tested to last for up to 100,000 miles, depending on driving conditions.

K&N Cold Air Intake Kit Product Specifications:
Estimated Horsepower Gain: 23.01 HP @ 3505 RPM
Air Filter Color: Red
Air Filter Height: 6 in (152 mm)
Air Filter Material: Cotton Gauze
California Restricted: Not legal for sale or use in California
Clamp Material: Stainless Steel
Clamp Style: Regular
Clamps Included: 7
Couplers Included: 2
Product Style: 63 Series AirCharger Kits
Replacement Filter: RC-5173
Street Legal In All US States: No
TUV Approved (Europe):  No

*This K&N AirCharger Cold Air Intake Kit for 2015-2016 F-150's with 3.5L EcoBoost Engines is not legal for sale or use in California.

Order a K&N 63-2592 AirCharger Cold Air Intake Kit for your 2015-2016 F-150 with a 3.5L EcoBoost Engine from CJ Pony Parts today!

Similar F-150 Parts

similar F-150 parts More F-150 Parts

F-150 Applications

This product will fit the following Ford F-150 years:

Product Reviews

Write a review
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 124.12ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Product Questions

  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 123.35ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 403 was returned;

You Might Also Like

Product Video

K&N Cold Air Intake Kit AirCharger EcoBoost 3.5L F-150 2015-2016 Video Transcript
By Bill Tumas: If you've been following our project F-150, you've seen we've already done Cat Back exhaust. Now that we can get some extra air out, it's time to shove some more air into our EcoBoost with a cold air intake. Now there are several different options of intakes for the EcoBoost, and over the next several weeks we're going to show you how to install several of them. Today we have the K&N AirCharger cold air intake.

This cold air intake features polyethylene intake tubes and a cotton gauze air filter which K&N claims will give you an increase of up to twenty-three horsepower. This easy bolt on intake which includes everything necessary for installation will make your truck look, perform and sound better. Today we're going to be putting it on our 2016 EcoBoost F-150.

For this installation you'll need a quarter inch ratchet, a seven millimeter socket, eight millimeter socket, four millimeter hex key and extension, flat-head screw driver, a marker, tape measure and cutters.

To install the K&N intake, the factory intake has to come off and we're going to start off by removing the air temperature sensor. Just push the tab on the sensor and pull it off. Then there's three clamps securing this intake tube to the air box and we're going to remove those. This clamp's a little bit more difficult to get to. You can either use a flat-head screw driver on these or a seven millimeter socket. Pop the retainers off the air box. Remove the air box lid and remove the tube. Now remove the air filter.

Now we can begin to install the K&N cold air intake. To start off, grab the smaller trim that K&N supplies, cut it in half. You're going to have two sections of nine and a half inches. Grab the two smaller pieces of trim and put it on the bottom side of the supplied air box. Now once you have the smaller trim in place where you would like it, pull it back and put some super glue down. We decided to cut our trim into sections. We're not going to do one continuous line around it, so we have two ten inch sections and two nine and a half inch sections. We're going to put the ten inch sections up top. Put the other ten inch one on the bottom as well. Put the shorter ones on the side. Make sure you contour it to the shape of the box. You can cut off the excess.

Now we're going to install this filter adapter in the box. We'll be using the supplied stainless hardware for the installation. Take the hose clamp for the filter, put it on the filter with the hose clamp facing up and put it on the adapter. When you put this on, you want to make sure the hose clamp is facing up so you can easily tighten it or remove it when it's in the vehicle. You will have to transfer over the air intake temperature sensor. To do that twist it counter-clockwise and wiggle it out. Install the grommet that K&N supplies into their intake tube. To install the temperature sensor in the new tube, you have to remove the O-ring. Be very careful when doing this, the sensor is very fragile. Put the sensor in the grommet.

Now we're ready to install the intake in our F-150. When installing this K&N air box, make sure the tabs on it line up with the factory air box. Use the factory clips to secure it. To make installation a little easier, we've pre-installed our clamps and couplers, and now we're going to put it on the truck. Tighten up all your clamps. Once you have all your clamps nice and secure, reinstall the intake temperature sensor, and your installation's finished. Now we're going to see what it sounds like. Our K&N AirCharger cold air intake is installed. It looks great. It sounds great. Installation should take you about an hour and before you know it, you'll be heading down the road.
