Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970

Mishimoto: MMRAD-MUS-69X
MSRP: $490.00
CJ's Low Price:
$367.50
1481068800 60960
Grab some coolant from Mishimoto to help keep your new rad running cool and a hose clamp to keep it sealed!
CJ's Low Price:
$39.90
Qty
Power Grip Hose Clamp 1-1/2" - Ships in 5-7 Days
CJ's Low Price:
$4.99
Qty
Earn 367 RPM Points What's this?

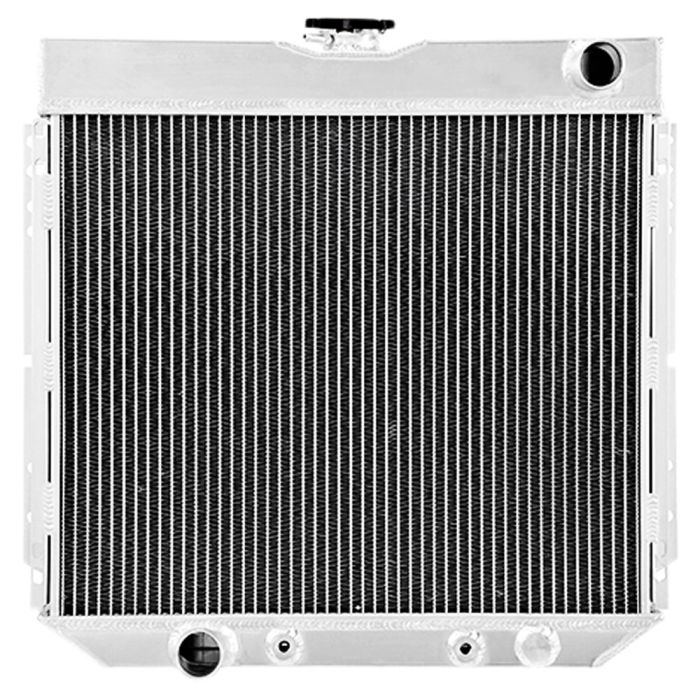

Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970
Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Play Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 339 250/302/351W 1969-1970 Video 1
Mishimoto

Product Description

Mishimoto 3-Row Type 339 X-Line Performance Aluminum Radiator for all 1969-1970 Mustangs with a 250, 302 and 351W V8 Engine.

If you are looking to improve the radiator in your daily driver or are looking to take you Mustang to a new level on the track, don’t pass up on this Mishimoto MMRAD-MUS-69X 3-Row Type 339 X-Line Performance Aluminum Radiator. Now available at CJ Pony Parts, this high-quality upgrade is designed specifically for 1969-1970 Mustangs with a 250, 302 or 351W engine.

Features & Benefits:
- All-Aluminum Construction
- 3-Row, Brazed Aluminum Core that is 25% Larger than Stock
- Has Aircraft-Quality, Aluminum End Tanks
- Improves Cooling Efficiency
- Increased Coolant Capacity
- Increases Tolerance to Heat & Pressure
- Reduces Engine Temperature
- Enhanced Structural Rigidity
- Ideal Heat Dissipation
- Better Durability
- Billet Aluminum Fill Neck
- Includes Internal Transmission Cooler & Magnetic Drain Plug
- Ideal for Street or Track

This radiator will increase the performance of your classic Mustang with its aluminum construction and X-Line design. The radiator’s core is 25% larger than stock with 3-rows and finished with a blazed aluminum. This will provide your Mustang with an increased amount of coolant flowing through so you’ll have the maximum engine cooling capacity. This translates to a reduction in your classic Mustang's engine temperature along with an increase in the amount of tolerance you'll have to high heat & pressure.

This ideal upgrade from Mishimoto also features end tanks that are precisely TIG-welded and manufactured using durable aircraft-quality aluminum. The inlet & outlet connections are leak free, while the billet aluminum fill neck will add to the increased rigidity of the radiator's structure. Mishimoto designs this MMRAD-MUS-69X radiator to have an internal transmission cooler to make sure you have the optimal fluid temperature if your Pony is an automatic. The radiator will also come with a magnetic drain plug that will snag any fragments or debris that may get caught up within your cooling system.

Radiator Specifications:
- Radiator Material: Aluminum
- Rows: 3
- Type: 339
- Height: 21 Inches
- Width: 22.1 Inches
- Thickness: 5 Inches
- Core Width: 16.1 Inches
- Core Height: 19.6 Inches
- Core Thickness: 2.5 Inches
- Inlet: 1.5 Inches
- Outlet: 1.5 Inches
- Tank Wall Thickness: .08 Inches

Other Fitments:
- 1969-1970 Ford Maverick with a 250 Engine
- 1971-1973 Mercury Comet with a 250 Engine
- 1969-1970 Mercury Cougar with a 302 Engine

Mishimoto is the world leader in performance cooling products. Established in 2003, Mishimoto has more than 10 years of experience in working toward their goal of providing superior cooling system upgrades for daily drivers, track cars, trucks, and bikes. Mishimoto was created for automotive enthusiasts by automotive enthusiasts. Mishimoto is a cohesive team that works hard to consistently provide the highest-quality products and service.

Pick up this Mishimoto 3-Row Type 339 X-Line Performance Aluminum Radiator for your 1969-1970 Mustang with a 250, 302 or 351W V8 Engine from CJ Pony Parts today!

Similar Mustang Parts

similar Mustang parts More Restomod Heating & Cooling

Installation Instructions

Mustang Installation

Mustang Applications

This product will fit the following Ford Mustang years:
