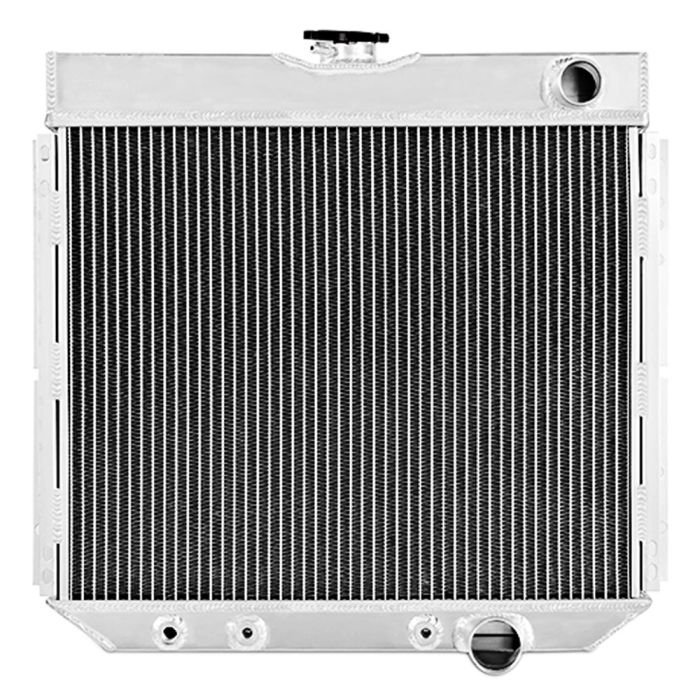

Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969
Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Play Mishimoto Radiator Aluminum Performance X-Line 3-Row Type 340 289/302/351W 1967-1969 Video 1
Mishimoto

Product Description

Mishimoto 3-Row Type 340 X-Line Performance Aluminum Radiator for all 1967, 1968 and 1969 Mustangs with a 289, 302 or 351W V8 Engine.

Are you looking to improve the stock radiator on your daily driver? Need to add a high-performance modification to your race car? Then don't pass up on this Mishimoto 3-Row Type 340 X-Line Performance aluminum Radiator specifically designed for 1967, 1968 and `969 Mustangs with a 289, 302 or 351W engine. All-new to CJ Pony Parts this ideal upgrade will improve your Pony's cooling efficiency and let you increase your horsepower without having to worry about your engine overheating.

 Features & Benefits:
- All-Aluminum Construction
-
Type 340
- 3-Row, Brazed Aluminum Core that is 25% Larger than Stock
- Has Aircraft-Quality, Aluminum End Tanks
- Improves Cooling Efficiency
- Increased Coolant Capacity
- Increases Tolerance to Heat & Pressure
- Reduces Engine Temperature
- Enhanced Structural Rigidity
- Ideal Heat Dissipation
- Better Durability
- Billet Aluminum Fill Neck
- Includes Internal Transmission Cooler & Magnetic Drain Plug
- Ideal for Street or Track

Mishimoto's X-Line performance radiator features an all-aluminum construction as well as a 3-row, blazed aluminum core that is 25% larger than the factory version. The larger, triple core design of the X-Line radiator results in an increased amount of coolant to flow through so you can get the maximum engine cooling capacity. This translates to a reduction in your classic Mustang's engine temperature along with an increase in the amount of tolerance you'll have to high heat & pressure.

This ideal upgrade from Mishimoto also features end tanks that are precisely TIG-welded and manufactured using durable aircraft-quality aluminum. The inlet & outlet connections are leak free, while the billet aluminum fill neck will add to the increased rigidity of the radiator's structure. Mishimoto designs this radiator to have an internal transmission cooler to make sure you have the optimal fluid temperature if your Pony is an automatic. The radiator will also come with a magnetic drain plug that will snag any fragments or debris that may get caught up within your cooling system.

Radiator Specifications:
- Radiator Material: Aluminum
- Rows: 3
- Type: 340
- Height: 21 Inches
- Width: 22.5 Inches
- Thickness: 5.4 Inches
- Core Width: 16.06 Inches
- Core Height: 19.6 Inches
- Core Thickness: 2.45 Inches
- Inlet: 1.5 Inches
- Outlet: 1.75 Inches
- Tank Wall Thickness: .08 Inches

*Will also fit a 1967-1969 Mercury Cougar with a 289, 302 or 351W Engine.

Mishimoto is the world leader in performance cooling products. Established in 2003, Mishimoto has more than 10 years of experience in working toward their goal of providing superior cooling system upgrades for daily drivers, track cars, trucks, and bikes. Mishimoto was created for automotive enthusiasts by automotive enthusiasts. Mishimoto is a cohesive team that works hard to consistently provide the highest-quality products and service.

So go ahead and buy a Mishimoto 3-Row Type 340 X-Line Performance Aluminum Radiator for your 1967, 1968 or 1969 Mustang with a 289, 302 or 351W V8 Engine from CJ Pony Parts today!

Similar Mustang Parts

similar Mustang parts More Restomod Heating & Cooling

Installation Instructions

Mustang Installation

Mustang Applications

This product will fit the following Ford Mustang years:

Product Reviews

Write a review
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 100.82ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Product Questions

Hi i bought this radiator and my lines on my 1967 Mustang have no threads to screw into the bottom fittings on the radiator for the transmission. What part do i need to connect the lines thanks

Asked by: 6T7FORD
You can use barb fittings of the appropriate size and attach to the factory lines using rubber hose and clamps.
Answered by: rk cjpp
Date published: 2016-05-31

Would you know what size the barb fittings need to be it would be really helpful, thanks.

Asked by: 6T7FORD
