Sequential LED Taillight Kit with Quick Connect Flasher 1996-2004

CJ's Part Number: TLLED53
CJ's Low Price:
$249.99
1419379200 32557
Earn 249 RPM Points What's this?
TLLED53
TLLED53 TLLED53_1 TLLED53_2 TLLED53_3 Play Sequential LED Taillight Kit with Quick Connect Flasher 1996-2004 Video 1

Product Description

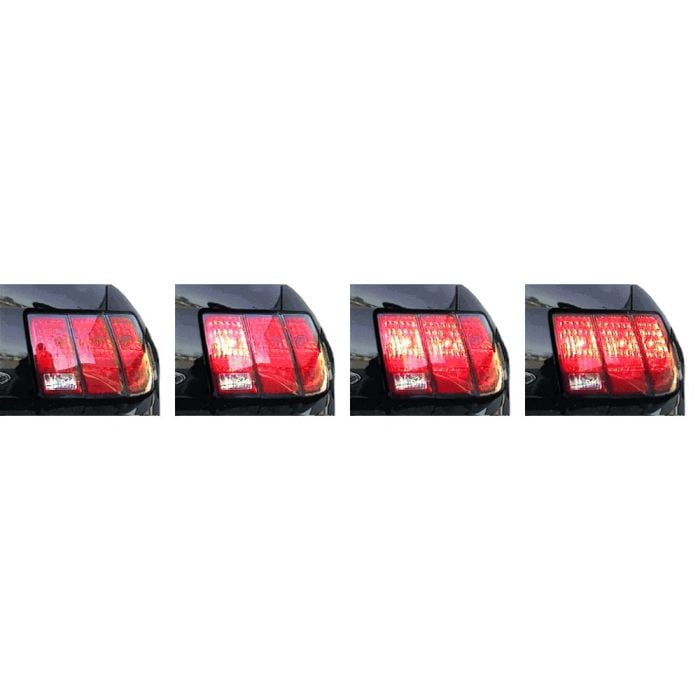

Sequential LED Taillight Kit with Quick Connect Flasher for 1996-2004 Mustangs.

This sequential turn signal kit is unique because your brake lights will still work properly. The taillights will only sequence when the turn signal or emergency flasher is activated but the brake lights come full on when braking. You will gain sequencing turn signals but also a much brighter and clearer light with the help of LEDs.

No need to change harnesses or cut wires. No permanent modifications are needed. Simply replace your flasher module with the patented electronic module and replace your incandescent lamps with the LED modules.

All connectors, instructions, and LED modules are included for BOTH sides.

Similar Mustang Parts

similar mustang parts More Mustang Taillights

Mustang Applications

This product will fit the following Ford Mustang years:

Product Reviews

Write a Review
All good
Again all in one piece excellent,fromUSA to GB and very quick,thanks VIC.
Vic from GB July 8, 2014
1 Results

Product Video

By Bill Tumas: Converting sequential taillights has been so popular in the Mustang crowd, Ford made it a standard feature starting in 2010. If your Mustang's a little bit older than that, there's plenty of aftermarket ways to convert your taillights. Today, we're going to install this LED Sequential Kit in this 1996 Cobra. The kit includes six of these ultra-bright LED bulbs, all the wiring necessary, and a special flasher.

We're going to start by removing this plastic trim panel so we can remove the panel that covers our taillights. Taillight are held in by four nuts. There's going to be one here, here, up top, and the other one's going to be back here behind this plastic bracket. We're going to pull the taillight out. It's not a bad idea to put a blanket or towel of some sort down to protect your paint. We're going to start by removing the outermost plug-in socket. Simply turn, slide it out, remove the bulb.

Now you want to grab the LED assembly that's marked outer. We're going to plug it into the original plug and install it in the housing. Now we're going to remove the middle one and take the bulb out of that, then finally the inner and remove the bulb from that one there.

We'll install our new LED harness and bulbs. You want to make sure when you install these that the bulb labeled "I" is on the inside. You then take this harness and you're going to plug it into the middle light socket. The factory light socket on the innermost inside does not get used. Now you want to install your new flasher. Once we unplug the original, we'll plug the new one in. We'll tie this up out of the way.

Once you've installed the flasher, you'll want to check your lights. In a case like ours, when you only have one bulb on, that means the polarity on the middle plug is reversed and you want to flip it over. Simply pull the plug out, flip it over, plug it back in. Now that the lights are working properly, we're ready to reinstall our taillights and reassemble our trunk.

Now there's some extra sockets in the car. You want to make sure you push them towards the top where there's more room before you try to reinstall. I'll reinstall the retaining nuts. I'll reinstall the trim panel and reinstallation's completed. Not only do we get that classic sequential look, the LED's going to be a lot brighter, making this a safety upgrade as well. The only real tool needed for installation is going to be an 11-millimeter socket. If you choose to remove the rear panel, you'll need a panel removal tool as well. Installation should take you no more than half an hour, so you'll be back on the road in no time.
