Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967
Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967 Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967 Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967 Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967 Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967 Total Control Products Air Spring System 1" Drop Shaft Quickset 1 Front 1967
Total Control Products

Product Description

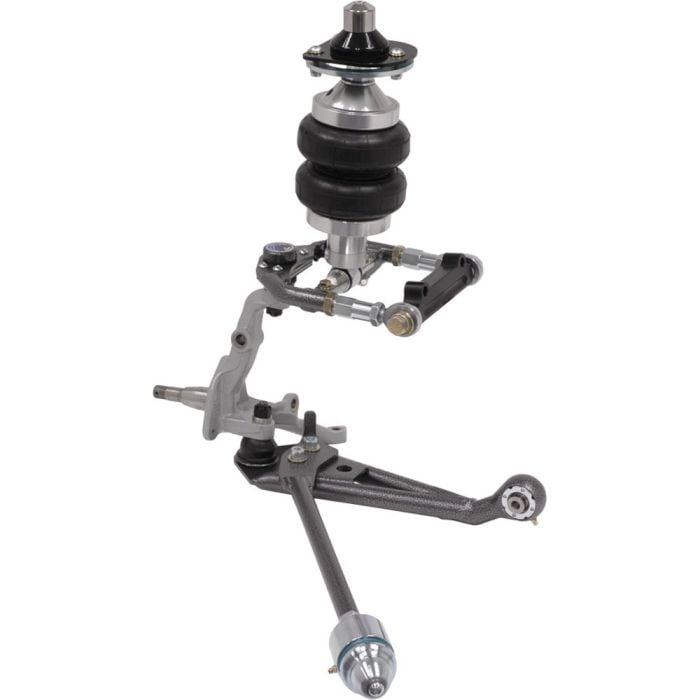

Total Control Products Front Air Spring System with Quickset 1 Air Shocks and a 1" Drop Shaft for all 1967 Mustangs.

If you are ready to take your Mustang to the next level in suspension, control, handling and ride quality, pay attention closely. Total Control Products has some of the very best in suspension systems available today and their Front Air Spring System with Quickset 1 Air Shocks and a 1" Drop Shaft for all 1967 Mustangs is no exception. Pick yours up from CJ Pony Parts and start enjoying the benefits of a one-of-a-kind fully adjustable, direct bolt-in front air spring suspension system today!

Kit Includes:
- Adjustable Valve Quickset 1 Air Spring Shocks
- Adjustable Upper Control Arms
- Bolt-On Lower Control Arms
- Lower Control Arm Eccentric
- Strut Rods
- Shock Mounts
- Drop Pivot Shaft
- All Necessary Mounting Hardware

Features and Benefits:
- Modern, Updated Suspension
- Improved Ride Quality And Performance
- Adjustable Suspension Fixes Stock Geometry Problems
- Only Fully Adjustable Bolt-In Air Suspension for 1965-1970 Mustangs

Now you can adjust the ride height and the handling characteristics of your Mustang with a few quick clicks, thanks to the awesome new Quickset 1 Air Shocks that are a vital part of this air spring suspension system. The patented VariShock QuickSet 1 features a 16-position, positive-click knob that adjusts overall resistance of the shock in both compression and rebound at the same time. Each knob is laser-etched with directional arrows and “plus/minus” symbols that clearly indicate which direction achieves the desired adjustment in your 1967 Mustang. This awesome combination air spring and shock absorber directly replaces the OEM coil springs and shocks and when fully deflated, the vehicle rests approximately 5"-6” below the stock ride height but can be raised to your desired driving height with just the push of a button!

The upper control arms feature double-adjustment couplers, with an adjustment range of 1”, with travel centered at the stock control-arm length. Caster can be varied within a 6-degree range and camber within 5-1/2 degrees. Alloy-steel rod ends feature low-friction, polymer-bearing races, eliminating deflection for a smooth ride. Grade 8 hardware and fasteners secure the rod ends to the aluminum pivot shaft. This 1” drop pivot shaft will eliminate the need to drill new holes in the shock tower to obtain the advantages of higher camber gains and improve vehicle roll rate for a level of control and command that you are going to love!

This Total Control Products Front Air Spring System with Quickset 1 Air Shocks and a 1" Drop Shaft for all 1967 Mustangs also includes high quality, premium shock mounts that act as 1” offset shock tower adapters. With bolt-on lower control arms, strut rods and all the necessary Grade 8 hardware you’ll need for this installation, you’ll be able to replace your Mustang’s old and outdated stock A-arm suspension in a snap. Order your Total Control Products Front Air Spring Suspension System from CJ Pony Parts today and you’ll be riding in style, on air and in supreme, precise control and comfort in no time at all!

Please Note:
A compressor system, sold separately, is REQUIRED for proper operation.
