Total Control Products Rear Suspension G-Link With Quickset 1 Air Springs And Adjustable Billet Lower Control Arms 1965-1966
Total Control Products

Product Description

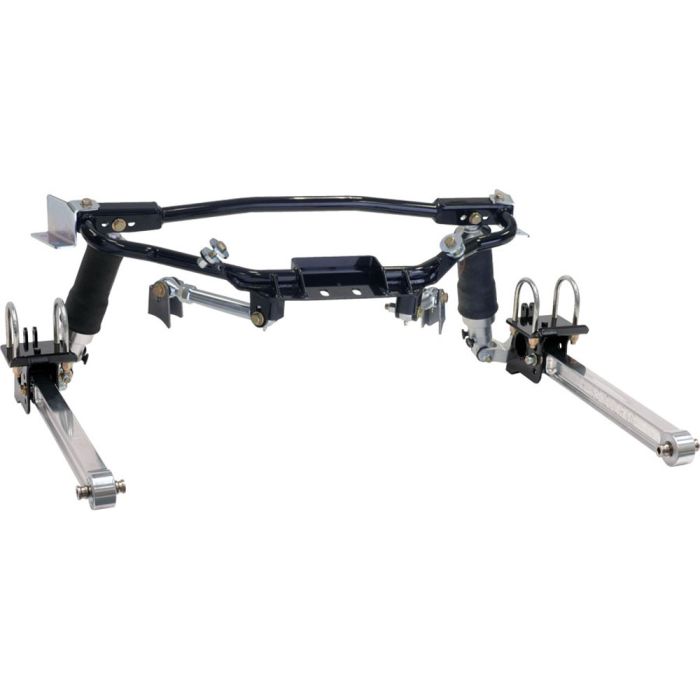

Total Control Products G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Billet Lower Control Arms for all 1965-1966 Mustangs.

Looking to add improved performance handling to your 1965-1970 Mustang? Then take a look at this Total Control Products G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Billet Lower Control Arms from CJ Pony Parts! With all that horsepower, you want to be sure you can make it around the tightest turns. That’s where Total Control Products steps in, providing you with the best in custom suspension systems for superior handling performance.

Total Control Products G-Link Rear Suspension 5814M10-2ML1A Features and Benefits:
- Modern Style Four Link Suspension
- Improve Ride Quality and Performance
- Added Room for Larger Exhaust
- Premium Polyurethane Bushings
- Adjustable Suspension Geometry

This G-Link suspension kit displays state-of-the-art canted-4-bar suspension design. To optimize the handling of your Mustang, the suspensions upper and lower links feature a non-compressible pivot ball mechanism to provide your Mustang with improved handling performance. The upper links adjust to set pinion angle and suspension preload.

Lower billet control arm links have an I-beam construction with all radius corners that aids in the reduction of stress risers with a pocket area for lower weight. The lower billet control arm links feature a deflection free, pivot ball design that provides superior control, while giving your Mustang a custom look. These pivot ball mechanisms help to make this billet lower link the ultimate performance link for intense street driving or racing at the track. The pivot balls can be rebuilt and tightened as they loosen up over time from wear.

Upper and lower suspension link mounting brackets have multiple positions of adjustment for chassis anti-squat and optimized vehicle handling. Lower shock mounts constructed from billet aluminum bolt to the back of the lower control arm brackets to give you 4.5 inches of adjustment in your ride height. Additional ride height adjustment provided by the three-position upper shock mounts will provide increased stiffness that will improve your Mustangs cornering ability.

Air Springs allow you to adjust the ride height and ride quality of your Mustang instantly. When parked, the springs can be fully deflated 5-6” below stock height. At the push of a button you can raise the height back to a suitable height for driving. Single-adjustable VariShock Quickset 1 air-springs give you 16 points of adjustability for bump and rebound.

Kit Includes:
- G-Bar Cradle
- Axle Brackets
- Adjustable Upper Links and Fixed Lower Billet Links
- Single-Adjustable Quickset 1 Air-Spring Shocks
- Mounting Hardware

Please Note: Compressor and air management system is required for operation of the air springs.

Total Control Products offers the highest quality suspension and steering components available for early-model Ford Mustangs. Their latest product selection is viewable above, and includes everything from bump steer kits, shock tower braces and coil over packages, to engine mounts, sub frame connectors, driveshaft safety loops and suspension kits. Total Control Products is constantly attempting to improve upon their already sterling reputation and their product quality control, and they have partnered with several smaller companies in order to do that.

Order this Total Control Products 5814M10-2ML1A G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Billet Lower Control Arms for your 1965-1966 Mustang from CJ Pony Parts today!
