Total Control Products Rear Suspension G-Link With Quickset 1 Air Springs And Adjustable Lower Control Arms 1965-1966

Total Control Products: 5805M10-2ML1A
CJ's Low Price:
$2,859.00
1480809600 65776
Be sure to pick up an air management system for the installation of your new rear air suspension!
CJ's Low Price:
$1,500.00
Qty
Earn 2859 RPM Points What's this?
Total Control Products Rear Suspension G-Link With Quickset 1 Air Springs And Adjustable Lower Control Arms 1965-1966
Total Control Products

Product Description

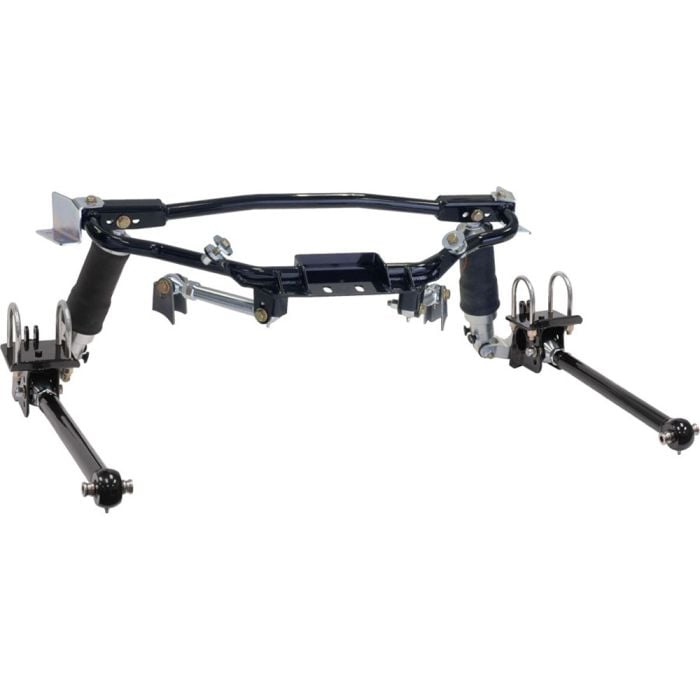

Total Control Products G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Lower Control Arms for all 1965-1966 Mustangs.

Looking to add more control to your 1965-1966 Mustangs rear suspension? Then take a look at this Total Control Products G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Lower Control Arms from CJ Pony Parts! With multiple ways of adjustment you can fine tune your rear suspension to your needs.

Total Control Products G-Link Rear Suspension 5805M10-2ML1A Features and Benefits:
- Modern Style Four Link Suspension
- Improve Ride Quality and Performance
- Added Room for Larger Exhaust
- Premium Polyurethane Bushings
- Adjustable Suspension Geometry

This G-Link suspension kit displays state-of-the-art canted-4-bar suspension design. To optimize the handling of your Mustang, the suspensions upper and lower link mounting brackets have multiple adjustment positions that will allow you to adjust the chassis’ anti-squat. The upper links adjust to set pinion angle and suspension preload, while the lower links adjust wheelbase variations and give you precise housing alignment.

Lower shock mounts constructed from billet aluminum bolt to the back of the lower control arm brackets to give you 4.5 inches of adjustment in your ride height. Additional ride height adjustment provided by the three-position upper shock mounts will provide increased stiffness that will improve your Mustangs cornering ability.

Air Springs allow you to adjust the ride height and ride quality of your Mustang instantly. When parked, the springs can be fully deflated 5-6” below stock height. At the push of a button you can raise the height back to a suitable height for driving. Single-adjustable VariShock Quickset 1 air-springs give you 16 points of adjustability for bump and rebound.

Kit Includes:
- G-Bar Cradle
- Axle Brackets
- Upper and Lower Links
- Single-Adjustable Quickset 1 Air-Spring Shocks
- Mounting Hardware

Please Note: Compressor and air management system is required for operation of the air springs.

Total Control Products offers the highest quality suspension and steering components available for early-model Ford Mustangs. Their latest product selection is viewable above, and includes everything from bump steer kits, shock tower braces and coil over packages, to engine mounts, sub frame connectors, driveshaft safety loops and suspension kits. Total Control Products is constantly attempting to improve upon their already sterling reputation and their product quality control, and they have partnered with several smaller companies in order to do that.

Order this Total Control Products 5805M10-2ML1A G-Link Rear Suspension System with Quickset 1 Air Springs and Adjustable Lower Control Arms for your 1965-1966 Mustang from CJ Pony Parts today!
