Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969

CJ's Part Number: DBF206-V
From:

Regular Price: $837.99

Special Price: $837.49

1481414400 56535
Pick up these Wilwood Brake Lines to complete your installation.
CJ's Low Price:
$74.94
Qty
Earn 837 RPM Points What's this?
Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969
Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969 Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969 Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969 Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969
Wilwood

Product Description

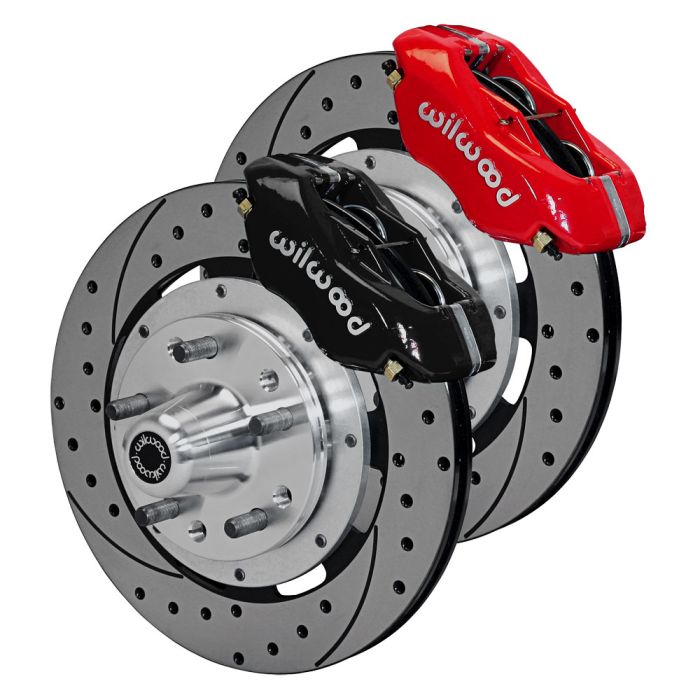

Wilwood 12.19" Dynalite 4-Piston Front Disc Brake Kit for 1965-1966 Mustangs with V8 Spindles and all 1967, 1968 and 1969 Mustangs.

Do you want your classic 1965-1969 Mustang to stop just like the newer Mustangs? This kit from Wilwood features a two-piece rotor design with forged four piston aluminum calipers. Once you install and test this Wilwood front disc brake kit you will wonder why you didn’t install this kit any earlier.

The Dynalite 4-piston calipers are constructed out of stainless steel which helps against corrosion and reduces the heat produced from the caliper. With this being a floating caliper design Wilwoods front brake kit provides excellent clamping power which decreases the stopping distance greatly.

The Wilwood smart brake pads have smooth engagement, with consistent response from a flat torque curve throughout their entire effective heat range. Wilwood's Smart Pad brake pads feature a medium-friction compound with very low noise and minimum dust of a street performance compound, plus the increased characteristics of a race compound brake pad.

These 2-piece rotors are merged with big brake series hats that are precisely manufactured from premium aluminum alloys for ultra-strength and attention to minimized weight. The hats have threaded rotor mount holes and provide dependable results even in the most difficult conditions. The hats are equipped with a black e-coat finish to help protect rust & corrosion from occurring.

Kit Features:
- Complete Bolt-in Kit
- Fits Some 15" Wheels
- 5 Lug Disc Brake Kit
- Fully Compatible With Manual Steering
- Fully Compatible With Power Steering
- Metallic-Composite Brake Pads
- Drilled and Slotted Rotors
- Black Anodized or Red Powder Coated Calipers
- Made in USA!

*This Brake Kit Has a Hub Offset of: +.09” (2.286mm)

Included Hardware:
- Pair of Caliper Brackets
- All Necessary Hardware
- Bearings
- Seals
- Dust Caps
- Detailed Instructions

*Check the wheel clearance diagram in the installation instructions before purchase.

Please Note: This kit requires the purchase of additional front brake lines.

Replacing brakes are a necessity of owning any Mustang. However, while they will always wear out, the brakes on your classic Mustang don't need to wear out as fast when you install well engineered, performance braking components. With CJ Pony Parts now offering the latest selection of brakes from Wilwood, you can find these parts at some of the best prices around.

Purchase your Wilwood 12.19" Dynalite 4-Piston Front Disc Brake Kit for 1965-1966 Mustangs with V8 Spindles and all 1967, 1968 and 1969 Mustangs from CJ Pony Parts today!

Similar Mustang Parts

similar Mustang parts More 5-Lug Front Disc Brake Kits

Mustang Applications

This product will fit the following Ford Mustang years:

Product Reviews

Write a review
Wilwood Front Disc Brake Kit Dynalite 4-Piston 12.19" V8 Spindles 1965-1966/1967-1969 is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Great brakes. Absolutely delighted with my purchase. The brakes are great quality. The service was good and the shipping quick. 5 Star.
Date published: 2015-01-07
  • y_2016, m_12, d_2, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_DBF206-V, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cjponyparts
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 5.8ms
  • REVIEWS, PRODUCT

Product Questions

I have 16x8 wheels  with a 4 1/2 backspace v-45 vintage wheel works will the .09 off set on the brake hat move the wheel out too close to the fender what tire would you use Shelby upper a arm lowered 1"

Asked by: 56 f100
You should be fine.
Answered by: CJPP Dave
Date published: 2016-09-20

what size wheels and tires should I use with these brakes? the front 12" 4 piston wilwood and the stock drums in the rear? would the 11" give me more wheel choices? what are the good wheel choices for American Racing Magnum 500 wheels?

Asked by: Bargs
The kit will fit some 15 inch and larger wheels, an 11 inch rotor would still need 15 inch wheels but give you more options.
Answered by: rk cjpp
Date published: 2015-11-06

Is the kit a pair?

Asked by: SF Correa
Yes.
Answered by: CJ Pony Parts
Date published: 2015-09-21

So none are offered for the 65-66 mustangs? And I'm guessing the E brake wouldn't work if I change all brakes to disc brakes too.

Asked by: Edwardnigma66
None from Wilwood. SSBC certainly offers rear disc conversion options. You don't want to install front brakes on the rear - it won't work.
Answered by: CJ Pony Parts
Date published: 2015-04-15

Why doesn't CJ Pony Parts carry rear end Wilwood disc brakes ?

Asked by: edwardnigma66
We do offer them for some model years.
Answered by: CJ Pony Parts
Date published: 2015-04-14
