Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966
Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966 Wilwood Front Disc Brake Kit DynaPro 4-Piston Use With Ridetech Spindle Black 11" 1965-1966
Wilwood

Product Description

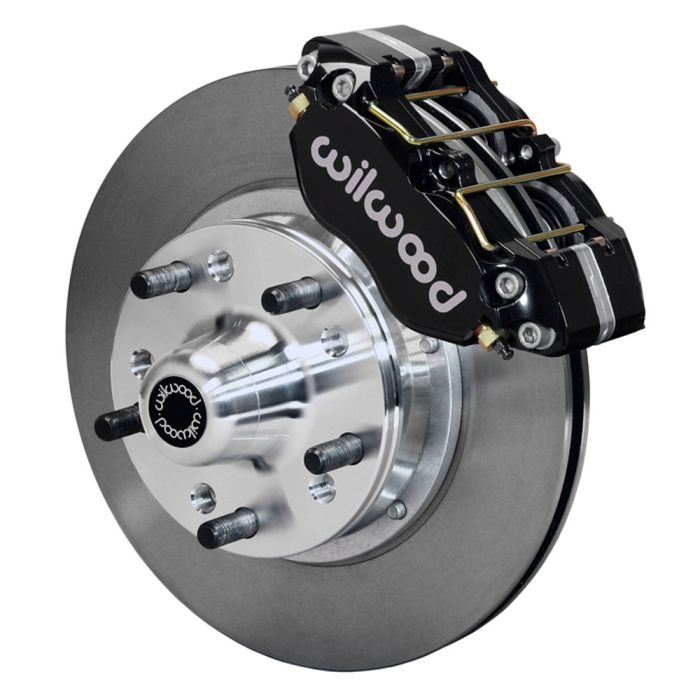

Wilwood 11" Black DynaPro 4-Piston Front Disc Brake Kit for 1965-1966 Mustangs with Ridetech Spindles.

If you are looking for a brake kit for your custom 1965-1966 Mustang using a Ridetech suspension system with their front spindles, then CJ Pony Parts has you covered! This Wilwood 11" Black DynaPro 4-Piston Front Disc Brake Kit was designed to work specifically with the Ridetech spindles.

Wilwood Front Brake Kit 140-13202 Features:
- 11” Rotors
- 4-Piston Calipers with Black Anodized Finish
- Forged Aluminum Hubs with Dual Bolt Circles
- Includes Necessary Hardware

Wilwood has designed this DynaPro front brake kit to offer a brake upgrade for 1965-1966 Mustang owners that are using Ridetech spindles. This kit uses 11” rotors with forged aluminum hubs to maintain the factory wheel position. The Wheel track is only widened to +.19” from the position of original drum brakes and -.31” of the original disc brake position. To lend protection to the calipers pistons, Wilwood uses their dust-booted calipers. This protects against road or track dirt and debris. The DynaPro front brake kit will provide plenty of clearance for 15” wheels and in most cases will require no additional modifications to be installed. The kit comes with calipers, rotors, hub assembly, brackets, hardware and can be used with manual or power boost master cylinders.

The spindles included in Ridetech suspension kits require the use of GM A/F body brake kits. This brake kit is designed to bolt onto GM A-body and F-body spindles and uses a center hub with a dual bolt circle. One circle is the 5” x 4.5” Ford bolt circle and one is a GM 5” x 4.75” bolt circle. This allows you to retain the factory Ford wheel bolt circle with the 5” x 4.5” bolt circle.

*Will not work with factory Ford spindles.

Please Note: This front brake kit requires the purchase of additional brake lines for installation (Part Number BHS60).

Calipers:
- Type: DynaPro Dust Boot
- Finish Color: Black Powder Coat
- Piston Count: 4
- Piston Area (in”): 4.80”
- Piston Type: Aluminum
- Mount Type: Lug

Rotors:
- Type: Ultralite HP 30
- Style: Plain Face
- Surface Finish: Plain
- Material: Iron
- Outside Diameter: 11”
- Width: 0.81”
- Vane Count: 30

Hubs:
- Type: Vented Rotor Offset
- Material: Aluminum
- Finish Color: Bare
- Mount Style: Adapter
- Bolt Circle 1: 5 x 4.50
- Bolt Circle 2: 5 x 4.75
- Stud Diameter – BC 1: 1/2-20
- Stud Diameter – BC 2: 1/2-20

*This brake kit may fit 14” wheels. Please refer to the wheel clearance diagram in the instructions below to see if it will fit your specific wheel.

Replacing brakes are a necessity of owning any vehicle. However, while they will always wear out, the brakes on your Mustang don't need to wear out as fast when you install well-engineered, high-performance braking components, like those that are available from Wilwood.

Order this Wilwood 140-13202 11" Black DynaPro 4-Piston Front Disc Brake Kit for your 1965-1966 Mustang with Ridetech Spindles from CJ Pony Parts today!
