5th Generation Ford F-100 Guide (1967-1972)

Although the Ford F-100 lost some of its classic, curvy style in favor of a more squared-off and rigid look as it progressed through the generations, there’s no denying that it kept its essence and outlook on life. Which is to say, that it is a practical, reliable, “everything-you-need-and-nothing-you-don’t” truck that offered people from all walks of life a vehicle designed to simply get stuff done.

In the last two decades, hardly anything revolutionary had been added to the foundation. If you were to blindfold a layperson and put them in both a 1952 and 1972 F-100, they’d be hard-pressed to tell the difference. However, a new trend was slowly but steadily gaining steam.

Ford began adding more and more features to their pickups to make them more luxurious and car-like. While these changes were not unexpected and demonstrated a larger trend of light trucks not being used solely for work, but also for daily driving and recreation. This is especially evident in Ford’s marketing from the time, with advertisements and brochures often focusing just as much on comfort as on utility. Slogans like “Works like a truck. Rides like a car.” and “Only a Ford pickup works like a truck, rides like a car.” were indicative of the branding that the company used at the time. While these models were still a far cry away from the massive technology and luxury-packed pickup trucks of today, the winds were shifting towards that direction.

Check out our guide and specs for an overview of the different model years, colors, and features of the fifth generation Ford F-100 pickup truck. The graphic below provides a quick look at the front ends of each model year, which never used the same grille twice in a row!

Related: Check out our detailed article on the differences between the bumpside and dentside F-100 generations.

1967 Ford F-100 Overview and Changes Versus 1966

The 1967 truck came in three trim levels: Standard Cab, Custom Cab, and Ranger. Each offered variations in style and comfort but could be configured with virtually the same engine, transmission, drive wheel, and bed options. This general format would be altered slightly in the coming model years, but the overall hierarchy was similar. Note that the Ranger name is another one that has survived the decades to remain in Ford’s current stable.

Transmission offerings were much the same as they had been for years. You could select a “three-on-the-tree” column-mounted 3-speed manual, a 4-speed manual, or a 3-speed Cruise-O-Matic automatic. These were mated to one of two different inline six-cylinder engines or to Ford’s 352 cubic inch “Interceptor” V8, which produced a healthy 208 hp and 315 lb-ft of torque.

Check out the specs of the 1967 Ford F-100 in the table below.

A heater, ashtray, two-speed windshield wipers, lap seatbelts, and latching glove box were standard equipment. Notable options included AM radio, power steering, power brakes, shoulder seatbelts, and SelectAire air conditioning. The Ranger package was now in its second year and offered bucket seats, carpeting, and an optional center console.

Compared to the last model year of the fourth generation, the 1967 F-100, the new truck offered improved cabin quietness thanks to better sound deadening. There was also more shoulder room, making for a better road trip experience. Ford even added padded sun visors, showing how small details could add up to a more pleasant experience inside the cabin. As noted, these steps to make their light pickup trucks more daily-driver-friendly was an important part of Ford’s strategy to keep up with consumer demands, as well as the competition.

Check out the paint colors and codes for the Ford F-100 in the 1967 model year below.

1968 Ford F-100 Changes

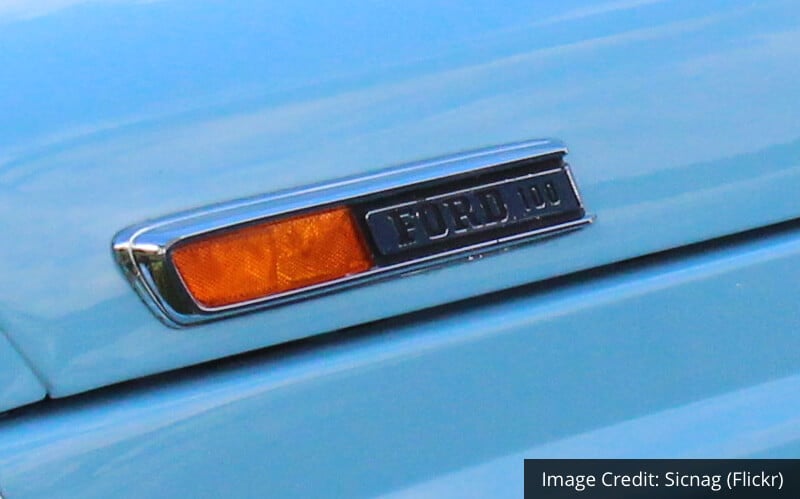

Per updated federal regulations in the United States, Ford added the newly-mandatory side marker reflectors. In the case of the F-100, they were integrated into the left and right hood emblems. The lower bedside panels received rear marker reflectors on either side.

A bigger and more exciting change for buyers came in the form of two new engine options, with 360 ci and 390 ci V8 motors replacing the older 352 ci engine. A revised rear suspension offered a bit more comfort, plus more strength and support for heavy loads.

Check out the specs for the 1968 Ford F-100 below.

Inside the cabin, the interior was revised with updated heater controls, superior air conditioning (still optional, of course), updated armrests, interior door handles, and window cranks. Upper trim molding for premium models was also changed.

Finally, the new Ford F-100 “Explorer Special” trim was released, a sort of luxury-focused truck that offered popular options at a discount, allegedly only available in the spring of each year. The Explorer Package could also be optioned on the Bronco and Ranchero 500. The trim was continued until 1986 for the F-series lineup. The “Explorer” nameplate has stuck through the ages, however, and continues to be used today on Ford’s mainstay crossover SUV.

Exterior paint colors for the 1968 Ford F-100 included:

1969 Ford F-100 Changes

The 1969 F-100 was exciting in that it offered three new special edition models, which Ford called “Job-Engineered”. Each offered a different package of popular options that were designed to appeal to specific applications, but could really work well for anybody needing a work truck.

The Contractor Special featured heavy-duty springs, side boxes for the bed, dual swing lock mirrors, a rear step bumper, a lighting package, and an optional under-hood electric power pack. These add-ons made it more ideal for work sites and construction duties.

The Heavy Duty Special had a larger battery, more powerful alternator, heavy-duty springs, a rear step bumper, and a gauge pack. It was perfect for those looking to run electric accessories that needed a lot of juice, be that at a business or a campsite.

Back in the day, F-series trucks were also available as campers, right from the Ford dealership.

The Farm & Ranch Special offered the heavy-duty alternator and larger battery, plus the heavy-duty springs. There were also side moldings and sideboards for the bed. Unsurprisingly, it was intended to be used for agricultural work.

Also, the 302 Windsor engine that had seen use in the Mustang was also added as an option for the F-100, midway through the model year. It generated 205 hp and 300 lb-ft of torque in this application.

Check out the specs for the 1969 Ford F-100 below.

Exterior paint colors for the 1969 Ford F-100 included:

1970 Ford F-100 Changes

Ford rearranged the trim line-up into four different levels: Custom, Sport Custom, Ranger, and the new line-topping Ranger XLT. Note that the XLT trim is yet another nameplate that has continued on to be used in present day. This flagship trim gave the 1970 F100 a downright luxurious interior (at least, for a truck), with wood-veneer inserts, full interior carpeting, and a sound-absorbing headliner.

A mid-cycle update meant that the grille was entirely new, and the front fascia now featured wraparound turn indicators. The fuel tank size was increased from 18 gallons to 19.5 gallons.

Check out the specs for the 1970 Ford F-100 below.

Exterior paint colors for the 1970 Ford F-100 included:

1971 Ford F-100 Changes

There was little to separate the 1971 model from the previous year, apart from minor trim changes. Ford didn’t go a single model year in this generation without changing the front grille in some way, and so the 1971 truck’s also got a minor revision. Federally-mandated exhaust emission systems and fuel vapor containment devices were added as well. With oil embargos and further emissions regulations on the horizon, these trends would continue with the upcoming sixth-generation F-series.

Check out the specs for the 1971 Ford F-100 below.

Exterior paint colors for the 1971 Ford F-100 included:

1972 Ford F-100 Changes

As with the previous model year, there were few overall changes as the fifth generation came to a close. F-250 trucks with four-wheel drive received a more robust, 3,300-lb-rated Spicer front axle. A cold-weather group (called the Northland Special package) was offered that included an engine block heater, a bigger battery, a beefed-up alternator, and a limited-slip rear axle.

Check out the specs for the 1972 Ford F-100 below.

Exterior paint colors for the 1972 Ford F-100 included:

Best 5th Gen Ford F-100

Unlike some of the other generations, there isn’t really a “best-of-the-litter” when it comes to the 1967-1972 trucks. It’s much more important to find an example that is in good shape, with matching numbers and minimal rust. On these classic vehicles, the easy-to-work-on nature means that even an engine swap is seen as common and no problem in terms of collectability. Enthusiasts are generally more concerned with the appearance and integrity of the exterior and are happy to accept a new motor or re-upholstered bench.

This generation of truck is an undeniable piece of Americana, and while they aren’t often featured prominently in media like a sports car might be, they’re a staple of period pieces that try to portray the U.S. during the Vietnam War era. Perhaps the most notable use of a 5th generation Ford pickup truck in film was in the 2007 movie No Country for Old Men. The protagonist Llewelyn Moss attempts to escape Anton Chigurh in a commandeered 1971 F-100 that gets some decent screen time.
