How to Install a Blowoff Valve on a Ford Bronco

The 6th-gen Ford Bronco offers various turbocharged engine configurations, making a blow-off valve (BOV) an ideal modification. A blow-off valve's primary function is to release the excess boost pressure in the charge pipe during acceleration, which could otherwise cause damage to the turbo by over-boosting. The distinct sound that enthusiasts associate with turbocharged cars, often described as a "whoosh," is actually the sound of the blow-off valve releasing the excess pressure. This is different from turbo flutter, which is the "stu-tu-tu" sound you hear from the turbo when you let off the accelerator and the blow-off valve isn't functioning properly.

The Bronco does come with a recirculation valve from the factory, which recirculates excess boost back into the intake track. However, this keeps the car quiet, and you don't get that "whoosh" sound that many turbo owners love. Adding a BOV is great option for a cheap Bronco mod. Also, if you're tuned and pushing higher amounts of boost than from the factory, an aftermarket blow-off valve will do a much better job at managing it. Blow-off valves are only found on turbocharged vehicles. If you want to learn more about the difference between turbochargers vs superchargers, check out this article.

To install a blow-off valve on your 2021+ Bronco, follow the steps outlined below.

2021+ Bronco Blow-Off Valve Installation

In these steps, we'll be installing a Turbosmart Kompact Series blow-off valve, but the process is largely the same with any aftermarket BOV. The Turbosmart blow-off valve works with 2.3L and 2.7L Broncos.

Parts and Tools Needed:

• Socket Wrench
• E6 Socket
• Phillips-Head Screwdriver

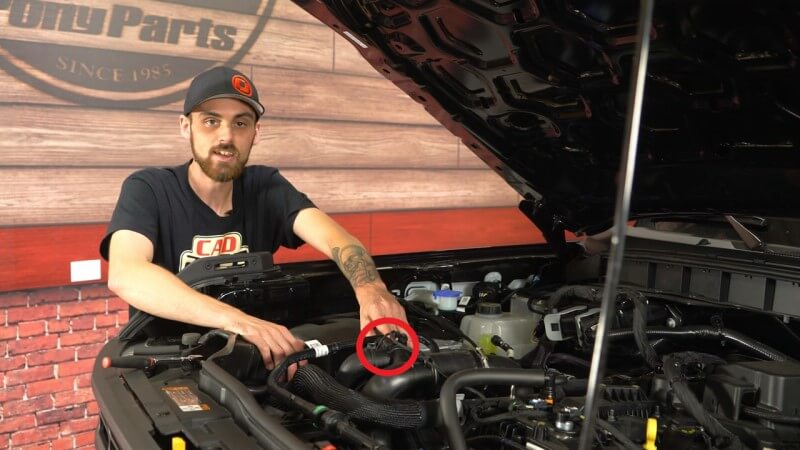

Step 1: Locate Recirculating Valve

Open the hood and locate the recirculating valve. It should be on the left side of your engine bay connected to the turbo.

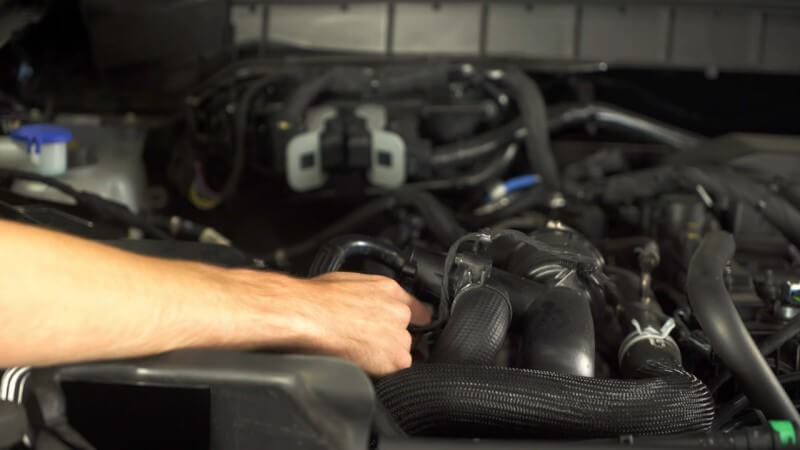

Step 2: Disconnect Recirculating Valve Plug

Pull the white tab down and push in. This should release the connector and it should slide out.

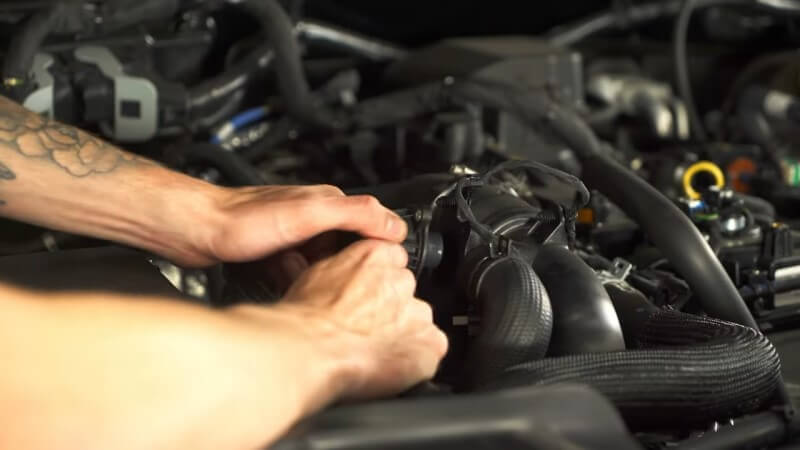

Step 3: Remove Recirculating Valve

Remove the three bolts holding the recirculating valve to the turbo. They're going to be E-Torx bolts, so make sure you're using the proper socket. Then, pull the recirculating valve off the turbo.

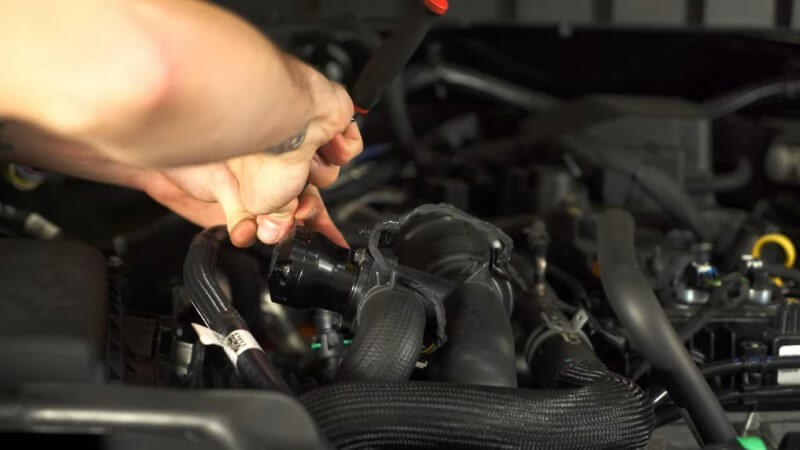

Step 4: Bolt Blow-off Valve to Turbo

Ensure that your seals are properly installed on your blow-off valve, then take your adapter plate and bolt the blow-off valve to the turbo using either factory or aftermarket hardware.

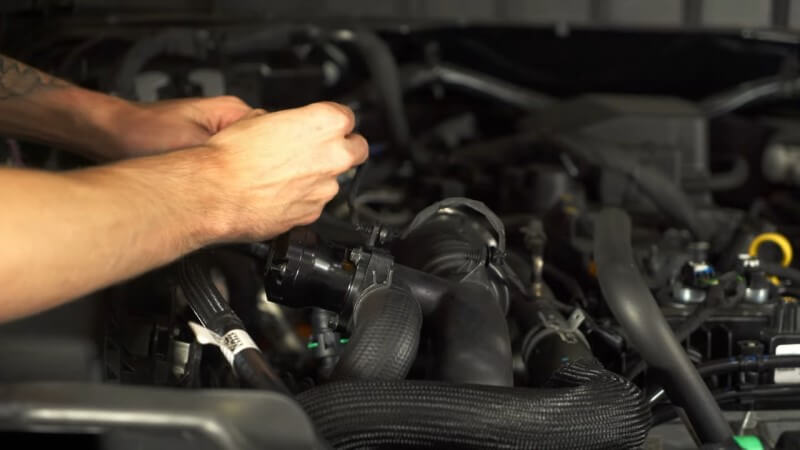

Step 5: Reconnect Plug

Now that the blow-off valve is bolted to the turbo, reconnect the valve plug you removed earlier.

Tune Your Bronco for Even Better Performance

Installing a 2021+ Bronco blow-off valve is a quick and easy project that's great for beginner mechanics. Now that you've installed an aftermarket BOV, installing a flash tuner on your Bronco can seriously increase power and performance.
