Before we got started on Project Betty, our 1965-1966 Mustang build, we asked if there were any basic installs you
wanted to see first. One of the questions a lot of people had was how to install bumpers on a classic Mustang. There’s
no underestimating the power of brand-new bumpers. Re-chroming the factory bumpers can get pricey, so replacing them can
save a lot of time and money.
Follow the steps below to learn how to put new front and rear bumpers on your classic Mustang in just a few hours.
In the following steps, we’ll show you how to install this CJ Classics Chrome Bumper Kit on a 1965-1966 Mustang. The kit
contains a new front and rear bumper plus the hardware needed to mount them to the bumper brackets.
- 3/8" Ratchet
- 1/4" Ratchet
- Long Extensions
- 11/16" Socket
- 5/8" Socket
- 1/2" Socket
- 1/2" Wrench
- Phillips Screwdriver

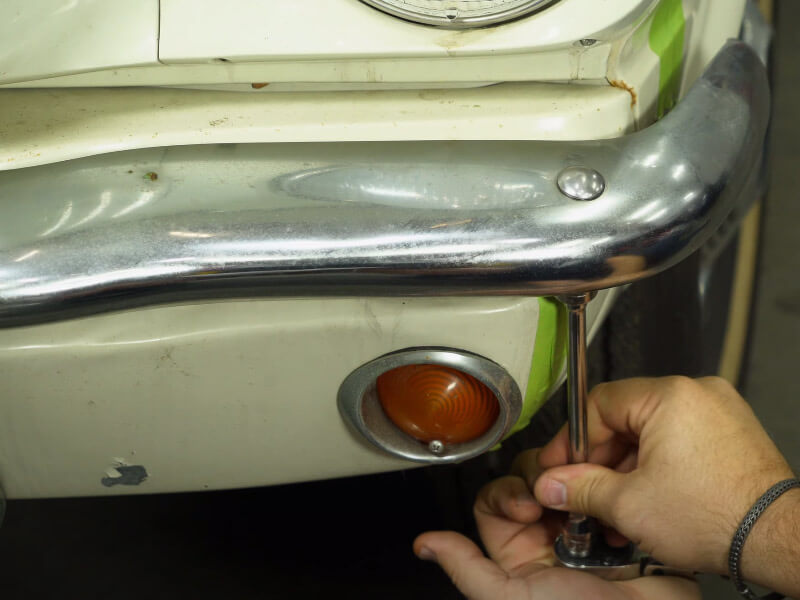

Step 1: Begin Removing Front Bumper
Begin removing the bolts on the front bumper. Using a swivel, you can start with the side bolt on one side. Penetrating
lubricant can help remove any stuck bolts.
Pro Tip: If you’re worried about messing up your Mustang’s paint job, put tape on the places where the extension could
rub against the body to prevent metal-to-metal contact.
Step 2: Remove Bumper Guards or Brackets (Optional)
Bumper guards can make it challenging to remove the bumper. So, if you do have bumper guards, you may need to remove
them before taking the rest of the bolts out of the front bumper. Also remove the bumper bracket if it’s in the way.

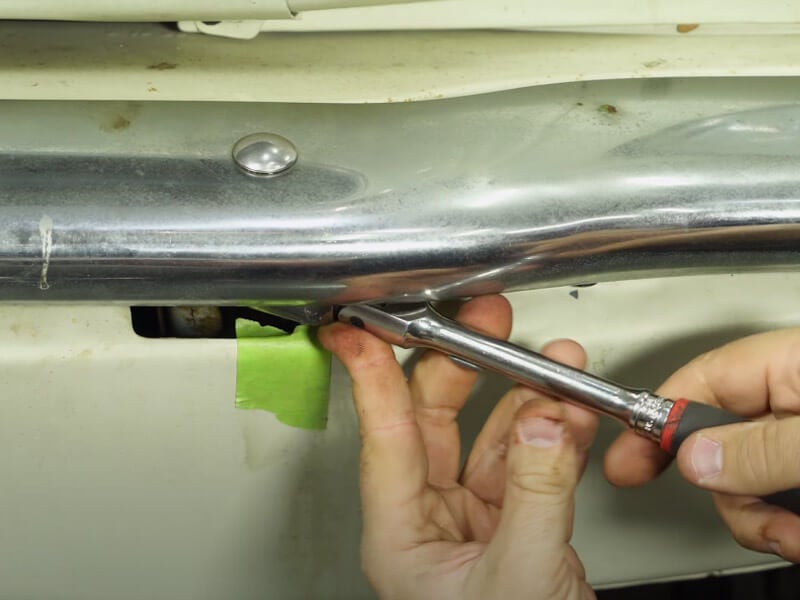

Step 3: Repeat Process on Other Side
Once you remove the three bolts on one side, repeat the process on the other side until all the bolts are removed. You
can use one bolt to keep the bumper in place until you’re ready to remove it.
Step 4: Remove the Front Bumper
Starting from one side, pull the bumper out and forward to clear the bracket. You should then be able to remove the
whole front bumper.
Step 5: Inspect Bumper Brackets
With the bumper off, inspect the bumper brackets to see if they’re in good shape. Check to make sure they’re not bent or
damaged. The slotted holes will help properly align the new bumper. Whether you’re using original or new brackets, you
may need to open up the holes to fit the new bumper. Leave the brackets loose so you can make adjustments before
tightening everything down.

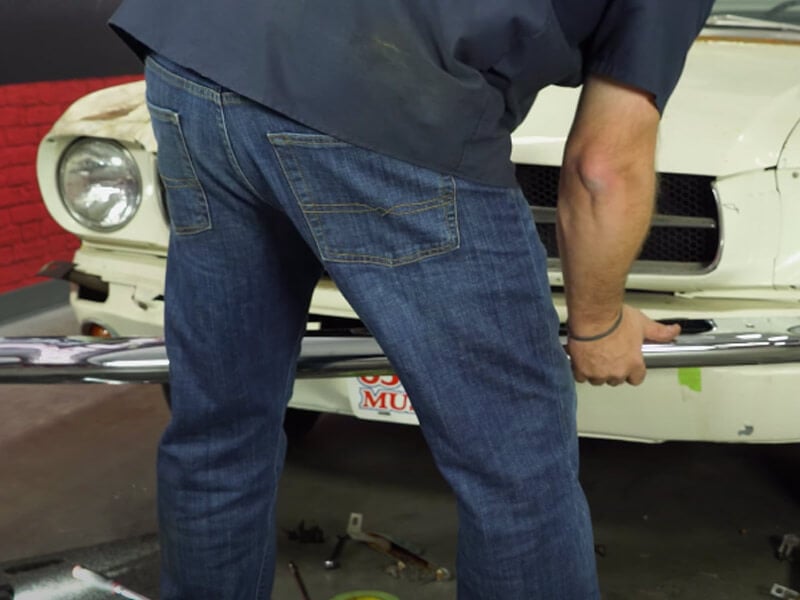

Step 6: Attach New Front Bumper
Grab the new front bumper and place it on the brackets by hooking it around the corner on one side. Hold it in place with a
bolt if needed before moving on to the next step.

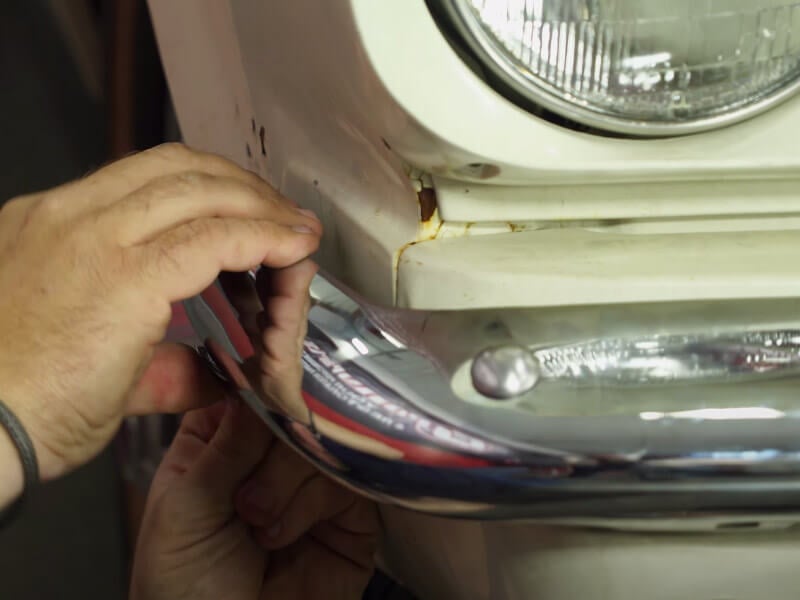

Step 7: Install Hardware on New Front Bumper
Reinstall the new or existing hardware onto the front bumper. Put all the front bolts in first, followed by the nuts,
and hand-tighten. Then, reinstall the side bolts.

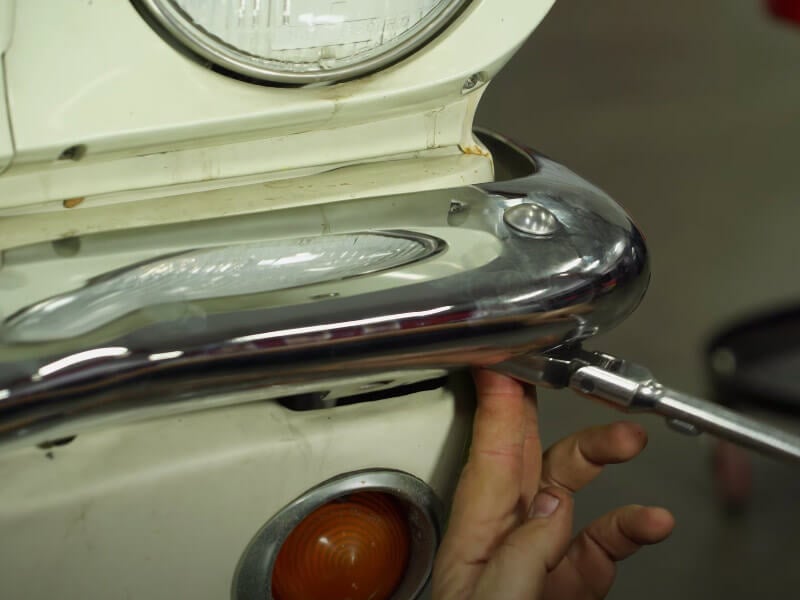

Step 8: Tighten Bolts Down
Once all the bolts are seated, you can use your ratchet to tighten everything down. Finish by tightening the bolts on
the side. That’s the last step for the front bumper!

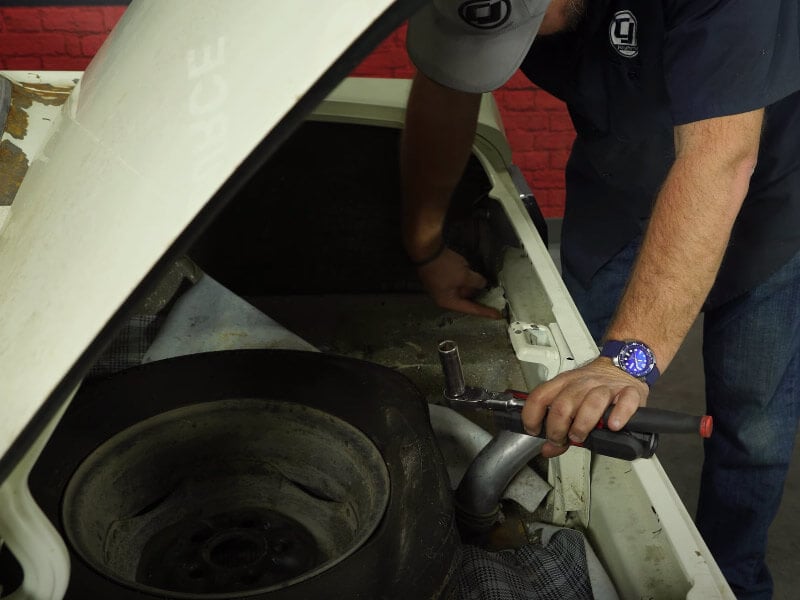

Step 9: Remove Bolts on Rear Bumper
Since there’s no way to access the bolts on the rear bumper, you’ll have to go through the trunk. Spray them with a
lubricant ahead of time for easier removal. Don’t remove the last few bolts yet.

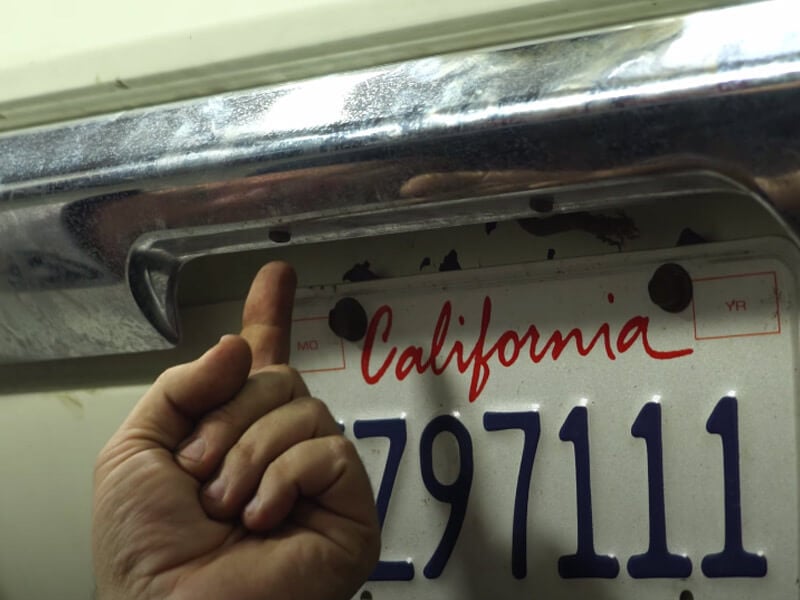

Step 10: Unscrew License Plate Light Bracket
You will need to remove the license plate light bracket before removing the remaining bolts on the bumper. Using a
screwdriver, remove the bracket by unscrewing the two screws on the bumper above the license plate.

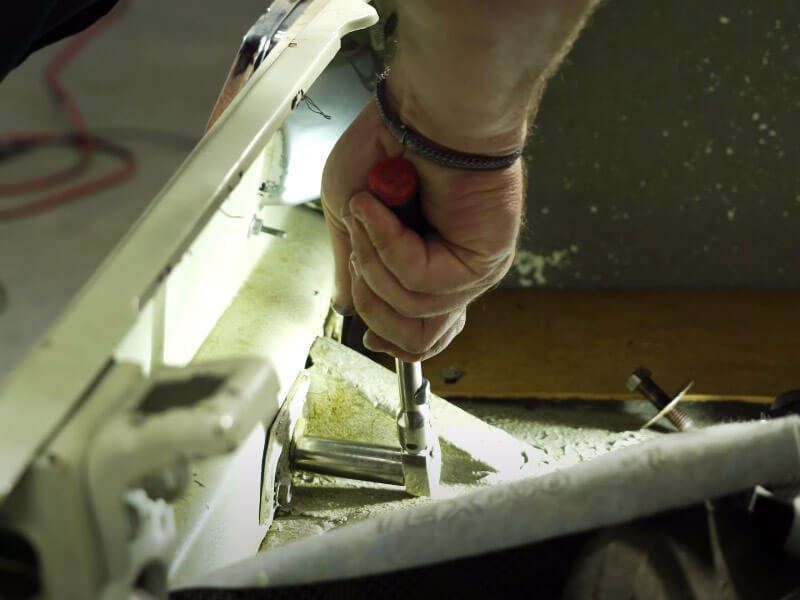

Step 11: Detach Rear Bumper
Next, hold the bumper and remove any remaining bolts. You can then detach the bumper once all the bolts are free.

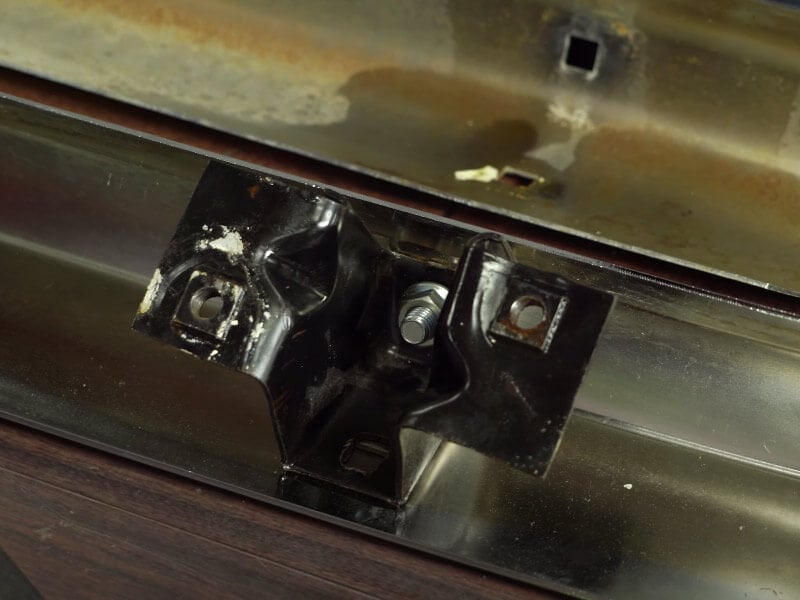

Step 12: Relocate Bumper Brackets
Remove the bolts attaching the bumper brackets to the old bumper. Once the brackets are removed, relocate them to the
new bumper. Use new hardware to install the brackets on the new bumper if needed. Get both bolts seated before
tightening them down. Repeat the process for each bracket.

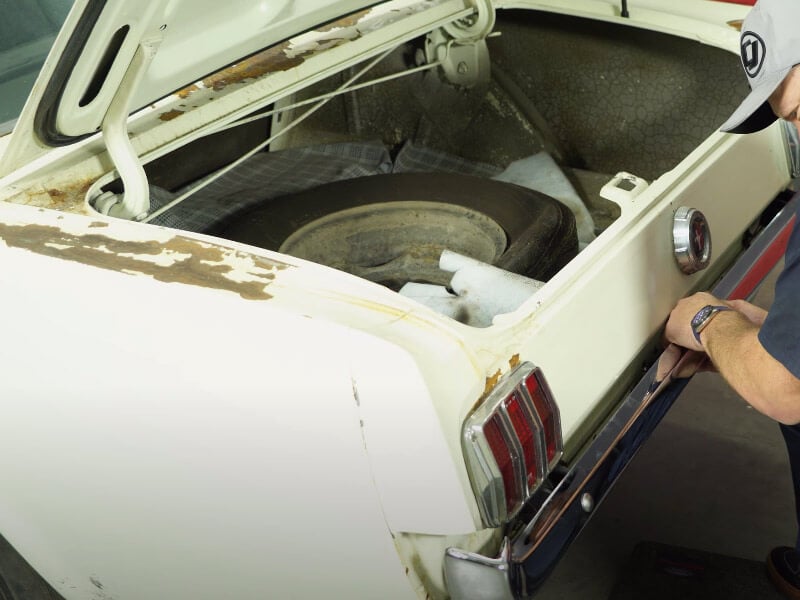

Step 13: Attach New Rear Bumper
Grab the bumper and align it with the rear of your Mustang. Slide the license plate light bracket back in and attach the
bumper with a few bolts to hold it in place.

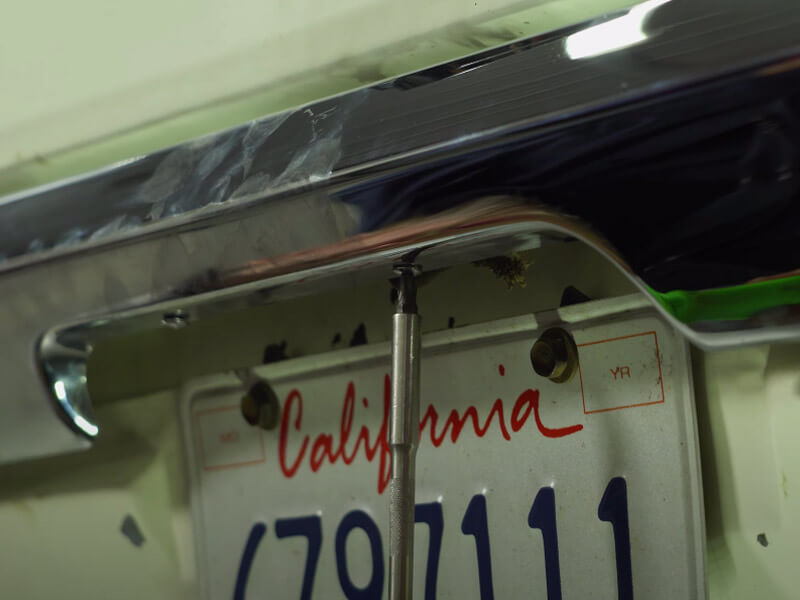

Step 14: Reinstall License Plate Light Bracket
Get the license plate light bracket properly situated and screw it back into place.

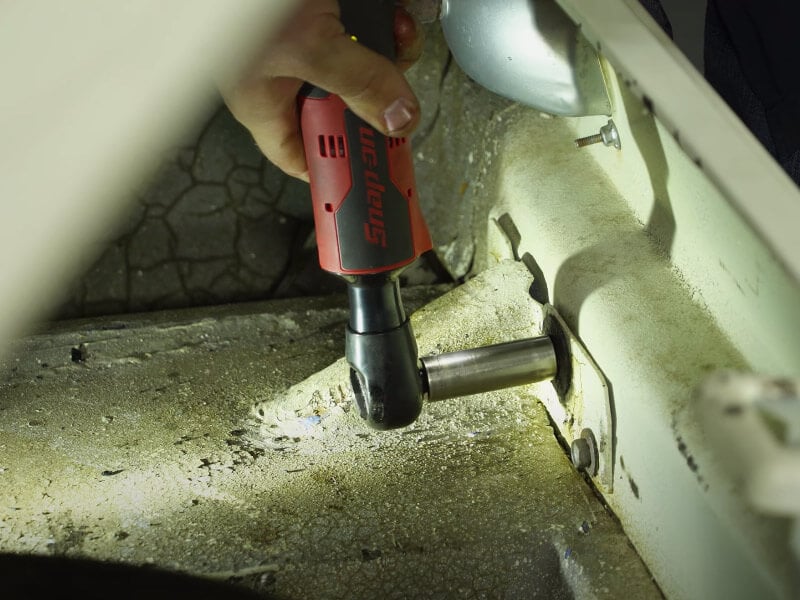

Step 15: Install Remaining Bolts
Install the remaining bolts and tighten them down. Don’t forget to tighten any of the other bolts that were holding the
bumper in place as well. After the bolts are all tight, the installation is finished!
Considerations for Your Mustang Bumper Install
A little elbow grease or lubrication might be needed to get the old bolts off your classic Mustang. If the brackets or
any of the hardware are rusted, you can always replace them with new hardware. Not only will they be easier to remove in
the future, but they’ll also look better too. Just be sure to follow any specific manufacturer instructions included
with your new bumpers. For more classic Mustang how-to guides, check out How to Install a Radiator on a 1965-1966 Mustang.
