5-Bolt Fuel Tank Sending Unit 0-30 Ohm Chevy/ GMC Trucks 47-66
Highlights
- 0-30 Ohm Resistance
- SAE 5-Bolt Mounting
- Adjustable 6"-24"
- Ceramic Board Rheostat

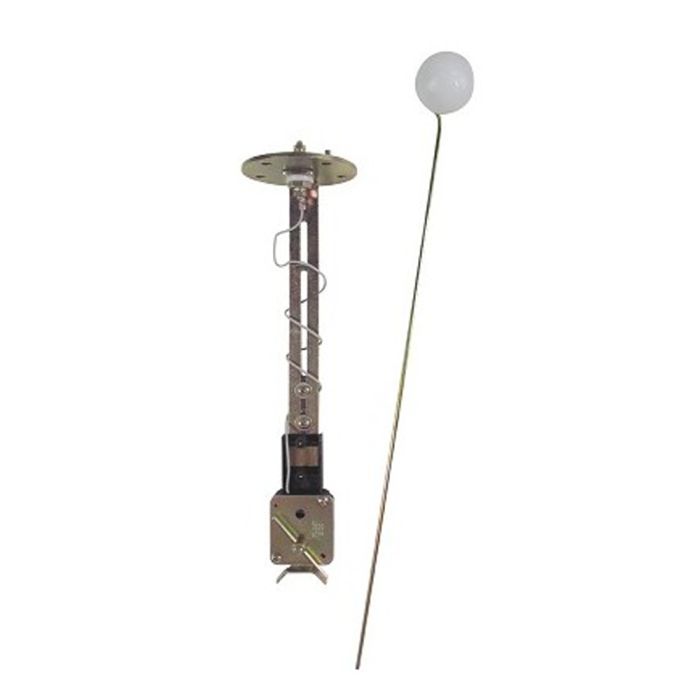

5-Bolt Fuel Tank Sending Unit 0-30 Ohm for 1947-1966 Chevy and GMC Trucks.
Replace the fuel level sending unit in your 1947-1966 Chevy or GMC truck with this adjustable 0-30 Ohm fuel tank sending unit. Featuring an SAE 5-bolt mounting pattern, this sender can be cut to length using the included instructions to accommodate fuel tanks ranging from 6"-24" deep.
A high-quality ceramic board rheostat provides the resistance signal used by the fuel gauge to indicate the fuel level. Because the sender reads resistance to ground, it is compatible with 6-24-volt electrical systems with either positive or negative ground. This sending unit does not incorporate a fuel pickup tube.
Features and Benefits:
- Replacement fuel tank sending unit
- 0-30 Ohm resistance range
- SAE 5-bolt mounting pattern
- Adjustable for 6"-24" deep fuel tanks
- Can be cut to the required length
- Cutting instructions included
- High-quality ceramic board rheostat
- Compatible with 6-24-volt electrical systems
- Works with positive and negative ground systems
Vehicle Fitment:
- 1947-1966 Chevy/ GMC trucks
Please Note: This sending unit does not have an integrated fuel pickup tube. The gasket and five mounting screws are not included.
California Residents: Proposition 65 Warning
Related Categories: C10 Fuel Sending Units
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
