700-R4 Valve Body Shift Kit Automatic Transmission Chevy C10 83-93

This kit fits General Motors vehicles equipped with the 700R4/4L60 automatic transmission. It eliminates issues caused by band and clutch failures, providing a smooth and reliable ride experience. It also helps to ward off delayed or premature shifting. It features a No-Stick TV valve with necessary springs, spacers, and washers.

Features and Benefits:
- Comprehensive valve body components
- Redesigned TV system for optimal performance
- Calibrated materials to minimize wear
- Addresses common shifting issues and clutch failures (see below)
- Enables smoother shifts, enhancing driving comfort
- Minimal installation complexity for mechanics
- Improved fuel efficiency through optimized shifts

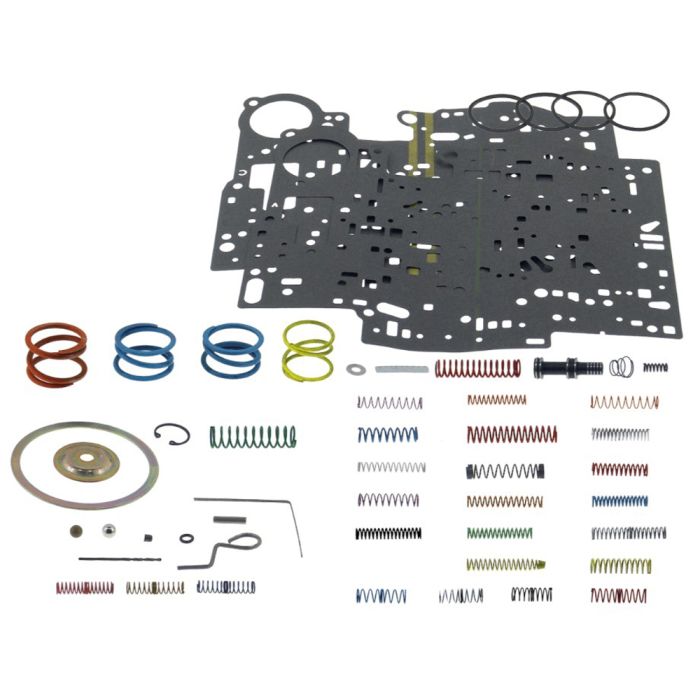

Kit Includes:
- No Stick TV Valve, Springs, Spacer w/ Washer
- Pressure Regulator Valve Spring w/ Snap Ring
- Orifice Cup Plug
- (x4) Governor Springs
- (x4) Accumulator Seals
- (x2) 1-2 Accumulator Springs
- 1-2 Accumulator Spring Seat
- Servo Cushion Spring and Shim for band adjustment
- 0.076” Drill Bit
- 3-4 Accumulator Spring
- (x2) 1-2 TV Valve Springs
- 2-3 TV Valve Spring
- (x6) 3-4 TV Valve Springs
- (x4) Converter TV Valve Springs w/ Spacer
- MTV Up Valve Spring
- (x3) Accumulator Valve Springs w/ Wire Clip
- (x2) Line Bias Valve Springs
- 3-2 Control Valve Spring
- 5/16” Steel Checkball
- 5/16” Plastic Checkball
- (x2) Valve Body Gaskets
- Roll Pin Extractor Tool

Issues Corrected:
- Band and clutch failure
- Late shifts or early shifts
- Sticking TV valve
- 2-4 band failure
- 3-4 clutch failure
- Soft or slide-bump 1-2 shift
- 2-3 cut-loose
- Falls out of 4th gear
- Shuttle 4-3-4-3
- Soft, late or no 4th
