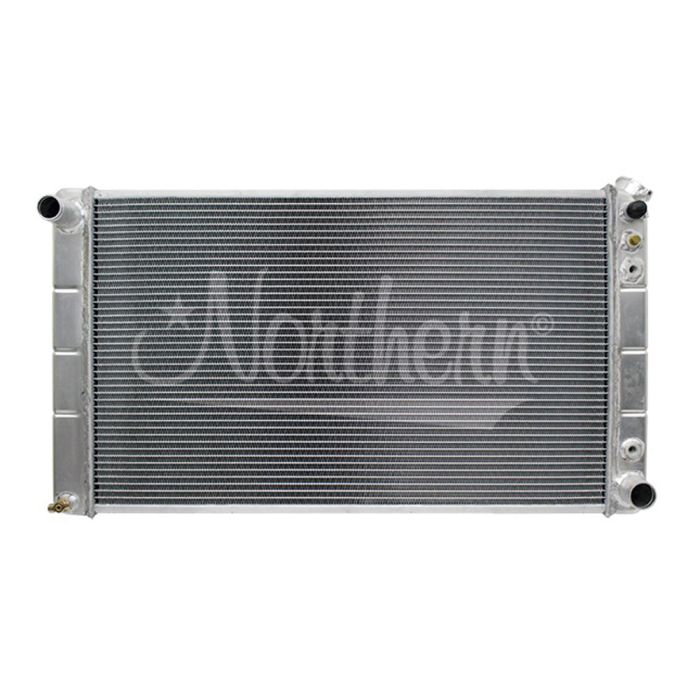

Northern 28" Billet Aluminum 2-Row Radiator W/ Trans Cooler Chevy C10 1972-1987

Keep your classic 1972-1987 Chevy C10 running cool with this radiator (205026). It features a high-performance 7-plate aluminum transmission cooler for reliable cooling under heavy loads. The 2-row core with 1" tubes ensures efficient heat dissipation, while the machined billet aluminum SAE-compliant filler neck adds durability and leak-free performance. With a 28" core, dual neck inlets, and a 1.5" outlet, this radiator is engineered to deliver both precision fitment and superior function.

Features and Benefits:
- 7-plate aluminum transmission cooler
- 2-row core with 1" tubes
- Precision-machined billet aluminum filler neck
- Transmission cooler with 5/16 inverted flare fitting
- Strong cooling for engine and transmission

Specifications:
- Heater return: 5/8 capped
- Inlet: dual neck 1-5/16" and 1-1/2"
- Outlet: 1-1/2"
- Sensor port: 1/8 NPT
- Core height: 28-3/8"
- Core width: 17-3/8"
- Overall dimensions: 32-5/8" T x 18-1/2" W x 3-1/8" D

Vehicle Fitment:
- 1972-1987 Chevy C10s
- 1988-1998 Chevy C/K Trucks
