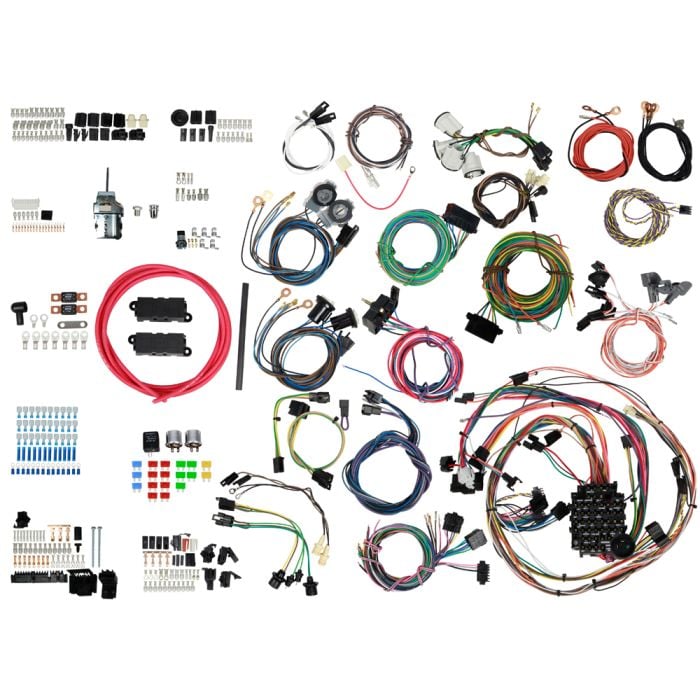

American Autowire Complete Wiring Harness Classic Update Kit Chevrolet C10 1983-1987

If you've been debating when the best time to tackle a big electrical project would be, than stop putting it off and order this high-quality American Autowire Complete Wiring Harness Classic Update Kit (510706) today from CJ Pony Parts!

This brand-new wiring harness kit will allow you to add some modern electronic accessories to your classic Chevy truck, like air conditioning, gauges and power windows! American Autowire includes practically every single piece you'll need to expand and upgrade your C10's electrical system, like factory-style connectors, 25-amp circuit breaker, brand-new fuse box and all kinds of new wiring leads. Don't wait a minute longer and snag your new wiring kit today from CJ's!

Classic Series Wiring Kit Features:
- Designed specifically for 1983-1987 C10 trucks
- Standard turn signal flasher, hazard flasher, and horn relay mounted on harness
- Replacement headlight switch with internal 25-amp circuit breaker, adjustable length shaft and custom knob
- Fuse box designed to fit in original location with no modification to the firewall
- All necessary mounting hardware included
- New ATO fuse panel allows for easy fuse and circuit breaker accessibility
- Harness is laid out and formed to allow for nearly all aftermarket accessories
- Steering column connectors can plug directly into most aftermarket steering columns or stock 1975 and up GM columns
- Can also be mated to earlier columns using the adapter and terminals included in the kit
- Separate under dash courtesy lamp assemblies are also included
- Original dome/interior lighting feeds
- Instrument Cluster wiring is designed with a cluster harness disconnect system for easy service and assembly
- Original style terminals and connector that will plug into the original gauge cluster
- The system will also connect into most popular aftermarket gauges
- Rear body harness assembly plugs into the main harness at the main bulkhead disconnect location and our longer leads allow for stock or custom routing of the wires
- Rear body wiring includes backup light lead wires and connectors along with stop and tail light lead wires and connectors
- License plate lamp lead connection, as well as the fuel tank sender lead connection is also included
- Original style lamp sockets and side markers for fleet side and original style molded connections for step side rear lamps are included
- Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer (if needed)
- A heavy gauge alternator feed and fusible link are also included for any typical high output 1 wire or internally regulated alternator
- Connectors supplied for power and tach leads for GM style H.E.I. distributors along with various oil and temp senders
- Front lighting includes extra long leads that can be routed for stock or optional appearances
- All head light, parking light, and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided
- Mating terminals and connectors are also provided for you to complete your custom installation
- New parking lamp socket and side marker lamp sockets are also included
- Supports both single and dual headlight models

Tech Tip: This brand-new harness kit does NOT include the wiring for a factory original A/C system.

Please Note: The necessary crimping tool (510586) needed to install this wiring harness is sold separately.

American Autowire has a long history as a developer of wiring harnesses, accessories, kits and components for a wide variety of automotive models. Without up-to-date wires, harnesses, and wire accessories, your restomod or hot-rod just won’t run the way it’s supposed to, and you definitely don’t want that! Whether you need to repair or completely replace your classic beauty’s wiring, we offer top-of-the-line parts from one of the best brands in the industry--American Autowire! Browse around and place your order now with CJ Pony Parts!

Be sure to purchase this comprehensive American Autowire (510706) Complete Wiring Harness Classic Update Kit for your 1983, 1984, 1985, 1986 or 1987 Chevrolet C10 from CJ Pony Parts today!
