American Autowire Complete Wiring Harness Classic Update Kit F-100 1953-1956

American Autowire:
510303
Rating:
100% of 100

Highlights

  • For Any F-Series Truck Body
  • Replacement Headlight Switch
  • Ato-Style Fuse Panel
  • This Kit Will Cover Your Needs
MSRP $699.00
$629.10
You save 10%

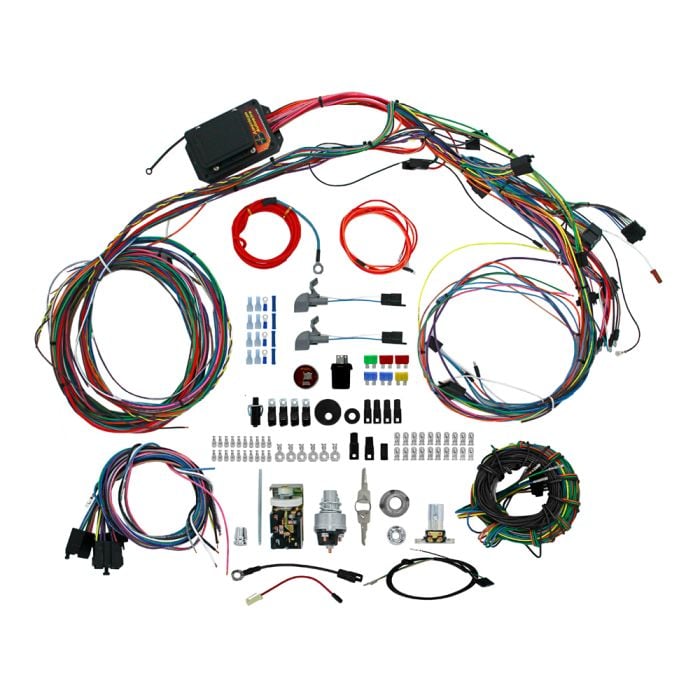

American Autowire Complete Wiring Harness Classic Update Kit for 1953, 1954, 1955 and 1956 F-100s.

Does your 1953-1956 Ford F-100 need to be re-wired? Don't stress such a big project--CJ Pony Parts has you covered with this American Autowire Complete Wiring Harness Classic Update Kit (510303)! Order your complete kit today!

This complete wiring kit will help you successfully re-wire your entire engine, front end and rear end without breaking the bank! You'll have all new wiring and connectors to ensure that your restored or aftermarket reproduction lighting and electrical components are all secure and fully-functional. American Autowire has thought of absolutely everything you might need and includes various extras in this kit, just in case you want to add an electric fan or run you wiring in a non-traditional way. They're the go-to in the industry when classic vehicles need new electrical, so trust that this kit will cover every single one of your classic Ford truck's needs! Order your complete re-wire kit from CJ's today!

Classic Series Wiring Kit Features:
- Compatible with any F-Series truck body
- Includes replacement headlight switch and internal 25 amp circuit breaker, adjustable length shaft and custom knob
- Standard turn signal flasher, hazard flasher and horn relay arrive already installed onto harness
- Compact ATO-style fuse panel is fully encased in a closed box assembly with two mounting pads and hardware
- Fuse coverlid is labeled identifying all circuits by description and fuse rating
- All high amperage output circuits incorporate the same premium-quality spring steel reinforced terminals
- Harness is laid out and formed to allow for aftermarket accessories like gauge packages, wipers, heat and A/C
- Harness uses original switch connector bodies exclusive to American Autowire
- Steering column connectors plug directly into most aftermarket columns or stock Ford columns using included adapter and terminals
- Includes separate under-dash courtesy lamp assemblies and door jamb switches for use with original dome/interior lights
- Instrument cluster wiring is designed with a 'cluster harness disconnect system' for easy service and assembly
- Original terminals and connectors are provided for stock cluster connections
- System is able to connect into most popular aftermarket gauges
- Rear body harness assembly plugs into the main harness behind the left kick panel--AA's longer leads allow for stock or custom routing of these wires
- Rear body wiring harness includes back-up light connectors and wires, taillight harness, license plate lamp leads and fuel tank sending unit wiring
- American Autowire provides new floor dimmer switch
- Engine wiring includes feeds for coil, tach, water temp, oil pressure, electric choke and electric speedometer. Also includes heavy gauge alternator feed and fusible link for typical high output 1 wire
- Front headlight wiring includes extra long leads, wiring for head lamps, parking lights, directional lights.
- Includes switched trigger wire for electric fan relay (recommended for use with A/C) and mating terminals and connectors provided for custom install
- Also includes new ignition switch, retainer and chrome dash bezel

Despite the scarcity of seeing them on today's modern roads, the F-100 remains an iconic vehicle for many Ford owners and aficionados. CJ Pony Parts is proud to offer a growing catalog of Ford F-100 parts that will help modify and modernize your classic truck. Browse our hundreds of parts and pieces for your iconic Ford truck today!

Order this American Autowire (510303) Complete Wiring Harness Classic Update Kit for your vintage 1953, 1954, 1955 or 1956 F-100 today from CJ Pony Parts!

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following F-100 years:

  • 1953,
  • 1954,
  • 1955,
  • 1956,
