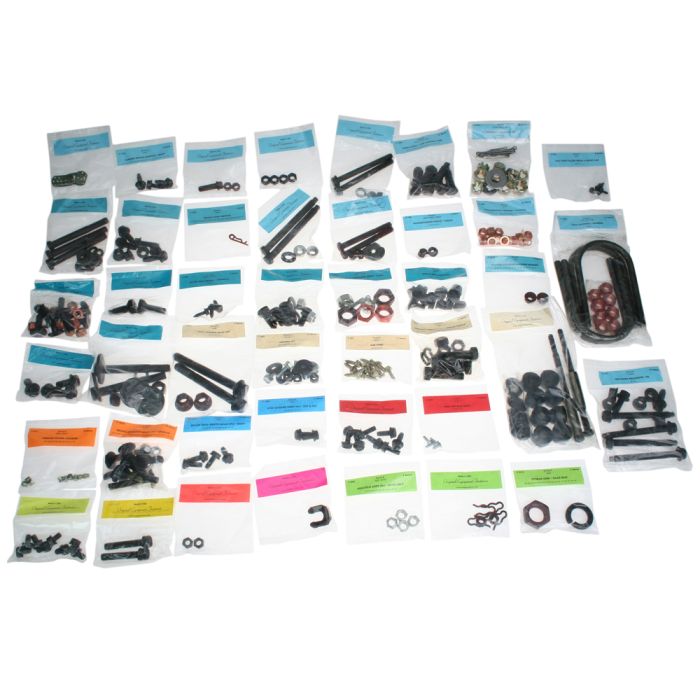

AMK Products Master Chassis Kit With Drum Brakes 302/351W 1969

This Master Chassis Kit from AMK Products includes 334 total pieces of factory correct, OE style fasteners that are required to properly reassemble your 1969 Mustang's chassis in one convenient kit! This kit is specifically assembled for 1969 Mustangs equipped with a 302 or 351 Windsor engine and drum brakes.

AMK Products' Master Chassis Kit includes individually packaged sets of hardware for various applications on your 1969 Mustang. Each package is thoroughly labeled so you know exactly where it goes on your Mustang. The individual sets of hardware also include the total number of pieces that are required for the specific application.

Master Chassis Kit Includes:
- Accelerator Bellcrank to Firewall: Hex Washer Head Sheet Metal Screws (3)
- Axle Housing to Springs: 5-1/2" U-Bolts, Flange Nuts (12)
- Axle Retainer Plates: T-Bolts, Lock Nuts (16)
- Front Drum Brake Assembly to Spindle: T-Bolts, Lock Nuts (16)
- Brake Cables to Body: Retainers, Retaining Clips, Hex Nuts (6)
- Brake Drum Retainers: Green Push-On Retainers (6)
- Front Drum Brake Hose Brackets to Body: Hex Washer Head Machine Screws (4)
- Drum Brake Hoses to Bracket: U-Clips (3)
- Brake Light Switch: Retaining Pin (1)
- Coil Spring Perches: Lock Nuts (4)
- Lower Control Arms to Shock Tower: Grade-8 Cam Bolts, Red Nuts, Washers (8)
- Upper Control Arms to Shock Tower: Grade-8 1/2"-13 Knurled Bolts, Red Nuts (12)
- Front Tubular Crossmember: Special Hex Countersunk Bolts (2)
- Differential Carrier to Housing: Red Lock Nuts, Copper Washers (20)
- Driveshaft: 5/16" U-Bolts, Lock Nuts (6)
- Engine Insulator to Block: Special Flange Bolts (4)
- Engine Body Brackets: Unified Bearing Stress Flange Bolts and Nuts (12)
- Engine Insulator to Block: Special Flange Bolts (4)
- Engine Insulator to Body Brackets: 4-3/4" Bolts, Flange Nuts, Flat Washers (6)
- Single Exhaust Hanger: Hex Washer Head Machine Screws (8)
- Pop Open Gas Cap: Phillips Flat Sheet Metal Screws (4)
- Gas Tank: Hex Washer Head Sheet Metal Screws (11)
- Chassis Grease Plugs: Hex Plugs (9)
- Idler Arm: Hex Bolts, Lock Nuts, Clipped Washers (6)
- Front Eye Leaf Springs: Flange Bolts and Nuts (4)
- Master Cylinder with Power Brakes: Flange Nuts (2)
- Master Cylinder without Power Brakes: Hex Screw and Split Washer Assembly (2)
- Parking Brake Control to Body: Hex Washer Head Serrated Screws (3)
- Pitman Arm to Gear Box: Hex Jam Nut, Split Washer (2)
- Proportioning Valve to Apron: Flange Nuts (2)
- Rear Shackle Assembly: Lock Nuts (4)
- Front Shock Brackets: Lower Heavy-Duty Carriage Bolts, Flange Nuts (12)
- Front Shocks: Hex Screw/External Washer Assembly "Anchor", 5/16"-18 Nuts, Washers (12)
- Front Stabilizer Bar to Body: Unified Bearing Stress Flange Bolts "M", Flange Nuts (8)
- Front Stabilizer End Links: Bolts, Retainers, Bushings, Spacers, Nuts (22)
- Steering Gear Box: Grade-8 Hex Bolts, Clipped Flat and Split Washers (9)
- Steering Linkage with Power Steering: Slotted Nuts, Cotter Pins, Flat Washer (23)
- Steering Rag Joint: 12-Point Bolt, 5/16"-18 Lock Nuts (3)
- Strut Rod Threaded Ends to Body: Lock Nuts, Slotted Nuts, Pins (8)
- Strut Rods to Lower Control Arm: 1/2"-13 Special Knurled Bolts, Nuts, Pins (12)
- Rear Suspension Bumper Bracket: Hex Washer Head Screws (2)
- Transmission Crossmember: Flange Bolts, Lock Nuts, Flat Washer (5)
- Transmission Insulator: (10)
- All Wheel Cylinders: 5/16"-18 Hex Screw and External Tooth Washer Assembly (8)

Buying individual sets of hardware for your 1969 Mustang can be expensive and time consuming if you're not sure which hardware you need. This Master Chassis Kit makes it easy by including 85% of the original, factory correct hardware that specifically fits your 1969 Mustang with a 302 or 351 Windsor engine and drum brakes. With a Master Chassis Kit from AMK Products, you will not only save time and money, but you will have the confidence knowing your 1969 Mustang is going to be restored with the finest factory correct hardware on the market.

AMK Products produces the most factory correct hardware for your classic Mustang. No matter what kind of Mustang you're building, there's no company better for nuts and bolts than AMK Products!

*Not for use on 1969 Boss 302 Mustangs.
