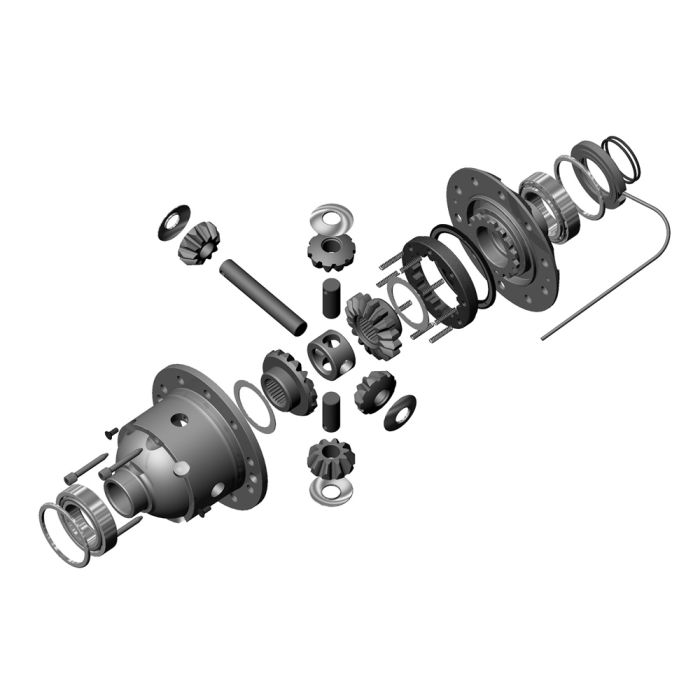

ARB Air Locker Differential For 32-Spline Dana 60 Axle/4.10 And Down Ratio

Instead of letting rough terrain impede your vehicle’s off-road performance, consider using this ARB Air Locker Differential! This locking differential is created specifically for vehicles with 32-spline Dana 60 axles and 4.10 or numerically lower gear ratios to guarantee a precise fit. At the flip of a dash-mounted switch, this pneumatically-operated device keeps your differential gears from rotating, enhancing traction on mud, snow, gravel, clay, and more. For ultimate strength and highly responsive activation, this differential has a 2-piece design and is engineered with multiple heavy-duty parts, such as forged gears. This differential has a timed locking system that supports its side gear teeth to further enhance your off-roader’s torque handling capability.

Features and Benefits:
- Works with 32-spline Dana 60 axles & 4.10 (and down) gear ratios
- Pneumatically-operated system activates w/ dash-mounted switch
- Also functions as a standard differential for on-road driving
- Patented locking system enhances torque handling capability
- Enhances traction on mud, clay, gravel, snow, mud, and much more
- Features a strong two-piece design for highly responsive activation
- Constructed w/ ultra-durable forged gears
- Billet-machined alloy steel spider block supports cross shafts
- Annular seal handles 20,000+ cycles under extreme conditions
- Wave spring provides fast, independent disengagement
- One-piece nodular iron differential case
- Forged nickel alloy steel & redefined gear-tooth geometry
- One-piece hardened retaining pins

When this differential is unlocked, it works just like a conventional open differential, allowing for standard on-road performance. This differential has a nickel alloy pinion gear and redefined gear tooth geometry to ensure reliability. For positive, independent disengagement, this differential has a supportive wave spring. This long-lasting differential comes with a comprehensive guide to assist users in the installation process!

Vehicle Fitment:
- 1987-2023 Jeep Wrangler
- 2020-2023 Jeep Gladiator
- 1966-1977 Ford Bronco
- For vehicles w/ 32-Spline Dana 60 Axle and 4.10 (or numerically lower) gear ratios

Includes:
- Air Locker Differential Assembly
- Air Line (6mm x 6mm)
- Bulkhead Fitting Kit (Banjo-Type)
- Solenoid Valve (12V)
- Cable Tie (25 Pk)
- Locker Switch
- Operating/Service Manual
- Installation Guide

Tech Tip: For ratios of 4.56:1 and up, please refer to P/N ARBRD164.

Please Note: An onboard air compressor (or other air supply) is required for use. An onboard air compressor is NOT included with this product.
