ARB Twin Air Compressor Kit On-Board 12-Volt

ARB:
CKMTA12
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 135.89ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Fully Assembled
  • Complete Wiring Loom
  • Mounting Hardware Included
  • Comprehensive Install Guide
MSRP $559.00
$542.23
You save $16.77

ARB 12-Volt On-Board Twin Air Compressor Kit.

If you’re searching for an air compressor for your off-road rig, but are short on space, this ARB High Performance 12-Volt On-Board Air Compressor Kit (CKMTA12) is just what you’re looking for! This lightweight air compressor packs a punch with its compact size and efficient design.

Features & Benefits:
- Made from primarily of light weight, high strength, engineering grade materials including military and aerospace standard components
- Pressure switch controlled air manifold system regulates pressure between 9.3Bar (135PSI) and 10.3Bar (150PSI)
- Suited to air tools and all ARB Air Locker equipped vehicles
- High efficiency design consumes only 56 amps at maximum air flow
- Built with sealed components for moisture and dust resistance
- Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life
- Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, head and electronics allowing for a 100% duty cycle (under room temperature conditions)
- Anti-vibration, sound deadening is integrated into the mount
- Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning
- High density and high flow washable sintered bronze air filter elements
- Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids
- Equipped with dual heavy-duty Maxi-Fuses for  professional in-line circuit protection and true circuit redundancy in case of a fault
- Motors are water sealed, 100% ball bearing equipped (i.e. no bushings used), and feature a unique linear brush pre-load system for extra-long life, low heat and quiet operation throughout the life of the unit
- Motors are internally thermal protected against extreme temperature damage
- Compressor pistons are equipped with a heavy duty roller bearing
- Over-pressure safety valve equipped
- Sealed illuminated automotive grade dash switch included
- EMF suppressed for use in proximity to sensitive electronic equipment

ARB’s twin on-board compressor kit is designed for a compact sized, yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools. The air compressor also suits the control needs of the ARB Air Locker, and the harsh and demanding environment of the user. This kit includes a fully assembled 12V air compressor and all mounting bolts and washers needed for installation.

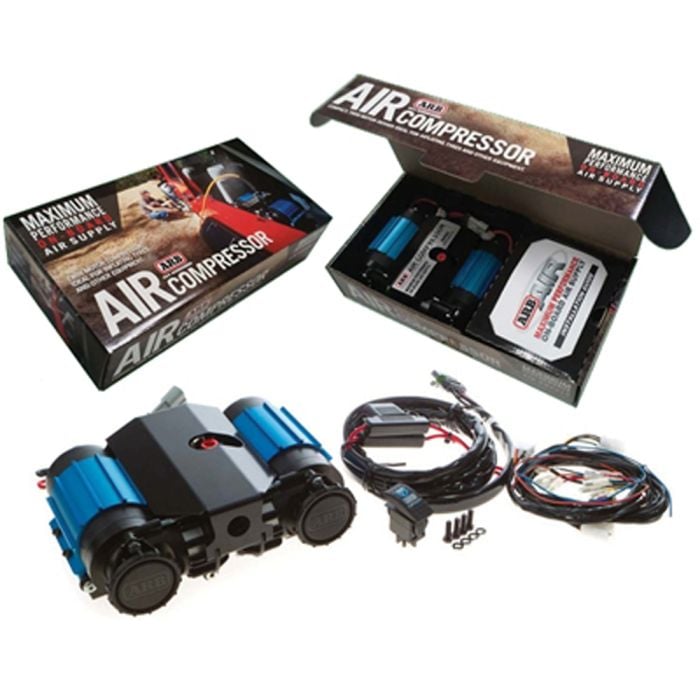

Kit Includes:
- Fully assembled and tested 12V air compressor
- Complete wiring loom with Air Locker solenoid plug-in terminals
- Automotive OEM quality compressor isolating switch
- Two relocatable splash resistant air filters with washable high-flow sintered bronze filter cartridges
- Mounting bolts and washers included
- Comprehensive photo illustrated installation guide

Purchase this ARB (CKMTA12) 12-Volt On-Board Twin Air Compressor Kit from CJ Pony Parts today!

Installation Videos

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following Canyon years:

  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Colorado years:

  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following F-150 years:

This product will fit the following Gladiator years:

This product will fit the following Ram years:

  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,

This product will fit the following Ram 2500/3500 years:

  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Sierra years:

  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Sierra 2500/3500 years:

  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Silverado years:

  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Silverado 2500/3500 years:

  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Super Duty years:

  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Tacoma years:

  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,

This product will fit the following Tundra years:

This product will fit the following Wrangler years:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 17.57ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Can this be wired to the AUX switches in a 2018 F150 Raptor?

Asked by: steveO
You can wire anything to the switches by using relays.
Answered by: Pipilongs
