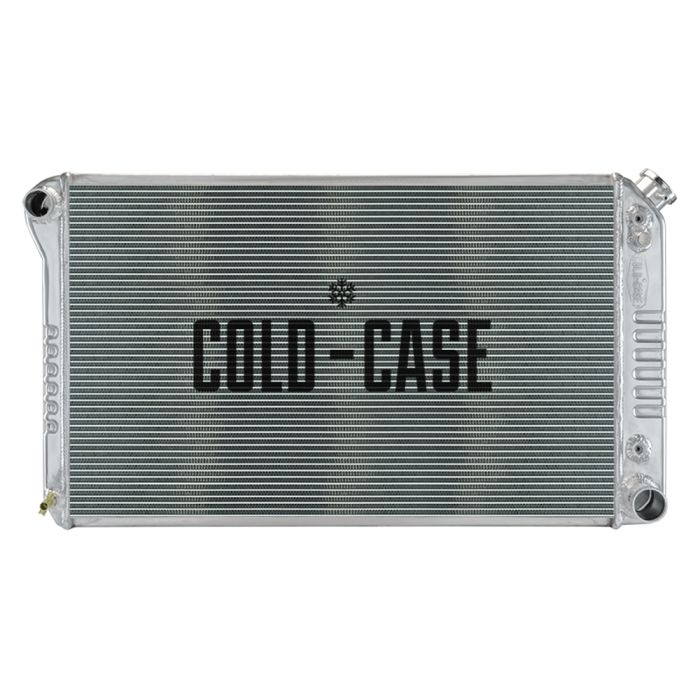

Cold Case Radiators Performance Radiator Aluminum 19” With Outlet 1.5” Fans and Shrouds 12” Chevrolet C10 1977-1987

Cold Case Radiators created their 19” Aluminum Performance Radiator as a direct fit replacement for the 1977-1987 Chevrolet C10s. The radiators feature a tig welded construction and 1.5” Outlet and 12” Fans and Shrouds for rugged resilience and performance. The radiator increases cooling by utilizing 2 oversized rows for greater heat dispersion over conventional radiators. To match the original factory design, the Performance Radiator features factory-correct stamping and a paintable surface for color matching.

Features and Benefits:
- All Aluminum Tig Welded Construction
- 12 Inch Fan Diameter
- Polished OE Style Tanks
- 16 Fins per Inch Heat Dispersion
- Corrugated Fins That Provide More Thermal Transfer
- Pressure Tested from Factory
- Designed for Automatic Trans
- Direct Fitment for 77-87 GM Truck W/ 1.5” Lower

Radiator Specifications:
- Core Height: 17.2 inch
- Core Width: 28.35 inch
- Overall Height: 18.6 inch
- Overall Width: 34.15 inch
- Overall Thickness: 3 inch
- Upper Hose: 1.25 inch
- Lower Hose: 1.5 inch
- Tubes (2): 1.25 inch Tubes
- Trans Cooler Fitting: 5/16" Inverted Flare
- Trans Cooler Fitting Size: 5/16 Inch Inverted Flare
