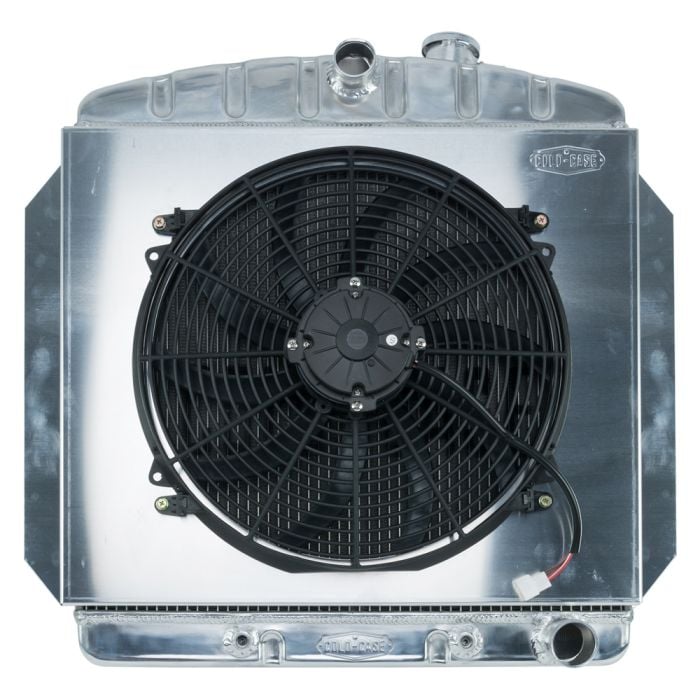

Cold Case Radiators Radiator Performance Aluminum With Fan/ Shroud Automatic Transmission C/K Chevrolet C10 1960-1962

Stamped to factory specs, the Cold Case Radiators Aluminum Performance Radiator with Fan and Shroud cools your 1960-1962 CK Series Chevrolet C10 engine for reliable performance. The Performance Radiator includes OE fittings to place into the factory location without hassle.

Features and Benefits:
- Aluminum TIG-Welded w/ Factory Correct Stamping
- 2-Row Wide 1-1/4" Tubes
- Corrugated 16 fin/inch for Added Surface Area
- Pressure Tested for Exceptional Thermal Transfer
- Includes OE Style Fittings for Factory Location Installation

The 16-inch fan attached to this 21.75-inch radiator has corrugated fins to add surface area for additional thermal transfer. Combined with the 2-row design, the radiator is a large improvement over 3 or 4-row radiators. The oversized 1-1/4-inch tubes are pressure tested to assure the aluminum, the lightweight radiator can cool your engine under heavy truck demands.

Specifications:
- Core Height: 19"
- Core Width: 21.75"
- Overall Height: 25"
- Overall Width: 26.5" Brackets
- Overall Thickness: 3'
- Fan Diameter: 16"
- Tubes: (2) 1.25" Tubes
- Upper Hose: 1.57"
- Lower Hose: 1.8"
- Trans Cooler Fitting: 5/16" Inverted Flare
