COMP Cams Xtreme Energy Hydraulic Roller Camshaft/ Lifter Kit SBC 87-98 ECU 224/ 230
Highlights
- ECU-Controlled Design
- For TPI and Upgraded Exhausts
- 1,500-5,500 RPM Range
- Includes Roller Lifters

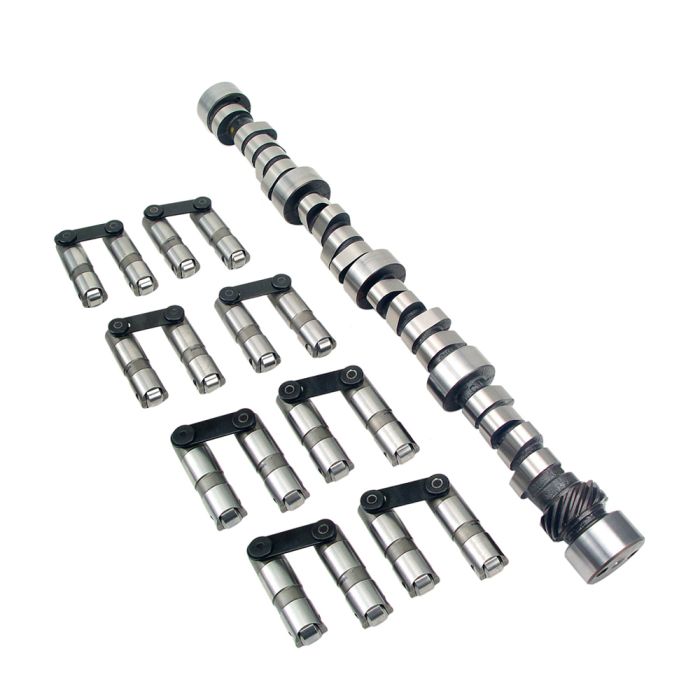

COMP Cams Xtreme Energy ECU-Controlled 224/230 Hydraulic Roller Camshaft and Lifter Kit for 1987-1998 Small Block Chevy 305-350ci Engines.
This kit (CL08-503-8) takes your 1987-1998 small block Chevy engine’s performance to the next level. It is built for street-driven setups that use modified TPI injectors, plenum, runners, and upgraded exhaust systems. This kit is an excellent upgrade for those looking for a wider powerband. It delivers a stronger throttle response. The ECU-controlled design integrates smoothly with your factory computer, while custom tuning ensures maximum gains when paired with performance upgrades.
Features and Benefits:
- Xtreme Energy hydraulic roller camshaft and lifter kit
- ECU-controlled design for optimal integration
- 224/230 duration at .050” lift
- Strong throttle response and performance gains
- Includes Comp Cams hydraulic roller lifters
- Best with tuned port injection and upgraded exhaust
Specifications:
- RPM operating range: 1,800-5,800
- Cam/lifter type: hydraulic roller
- Camshaft series: Xtreme Energy ECU-controlled
- Camshaft gear attachment: 3-bolt
- Advertised intake/exhaust duration: 276 and 281
- Intake/exhaust duration at .050” lift: 224 and 230
- Intake/exhaust valve lift: 0.503 and 0.51
- Lobe separation: 112
Vehicle Fitment:
- 1987-1998 Small Block Chevy V8 Roller 305-350ci Engines
Please Note: This camshaft does require custom tuning for the best performance.
California Residents: Proposition 65 Warning
Related Categories: C10 Restomod Engine, C/K Engine, C/K Restomod, C10 Camshafts
Vehicle Fitment
This product will fit the following C/K years:
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
This product will fit the following C10 years:
- 1987
