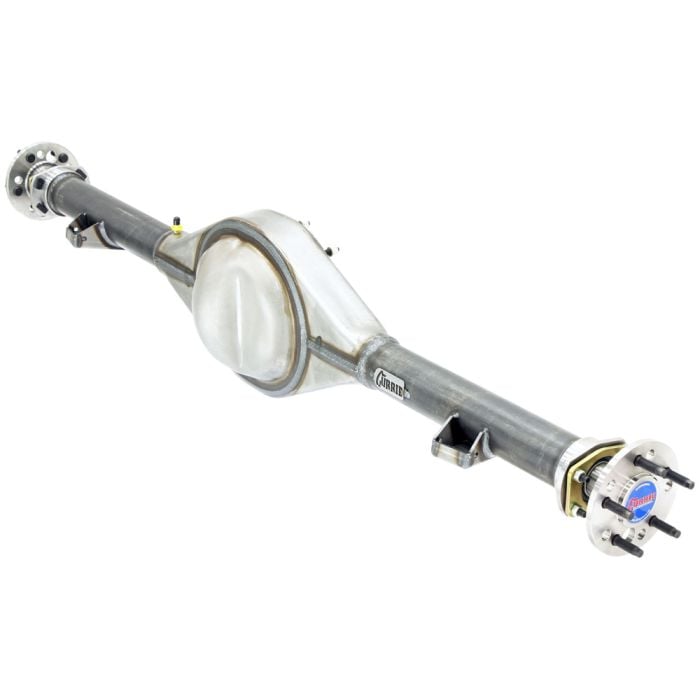

Currie Housing And Axle Package 9" 5 Lug Chevrolet/ GMC C10 1973-1987

Currie:
CE-GMC7387X5

Highlights

  • Ford 9 Inch Durability
  • Direct Fit Installation
  • 5 Lug 31 Spline Axles
  • Bolt In Installation
$1,299.00

Currie 9" Housing And 5 Lug Axle Package for 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 Chevrolet and GMC C10s.

Currie brings the durability and performance of a 9-inch rear to your Square Body! This 9" Housing And 5 Lug Axle Package (CE-GMC7387X5) is a bolt-in upgrade for 1973-1987 Square Body Chevrolet or GMC C10s.

Features and Benefits:
- Ford 9-Inch Durability
- Bolt In Replacement For Your C10
- Heavy Duty 31 Spline Six Lug Axles
- Modern USA Made Housing

This Housing and Axle Package is built to match your C10's stock axle width, pinion offset, suspension mounting locations and wheel bolt pattern for a straightforward hassle-free installation. It features Currie's Centurion Housing, packing classic looks in a new, high-strength, American-made housing. The housing is designed with 3-inch diameter axle tubes, and a CNC machined face flange for a flat, leak-free seal - all joined together with strong, attractive welds. Billet housing ends, 31 spline 1541 alloy axles, and heavy-duty spring perches round out this package.

This Kit Includes:
- Currie Centurion 9-Inch Notchback Housing With C10 Brackets
- Currie Performance 31-Spline 5-Lug Axles
- Timken Axle Bearings (Shipped Loose)

Specifications:
- Housing: Currie Centurion heavy-duty 9-inch housing with 3-inch diameter x .188 wall DOM tube
- Axles: Currie Performance 1541 alloy 31-spline axles
- Housing Ends: Billet Torino style late model large bearing
- Axle Bearings: Set 20 Tapered roller bearing
- Bearing Retainers: 1/4" thick heavy duty plates, gold zinc plated
- Suspension Brackets: Trailing arm pads installed to match model year specific OEM fitment and locations
- Wheel Bolt Pattern: 5 Lug - 5 on 5 with 1/2 inch studs
- Brake Space: 2.5 inch (axle standoff)
- Width: 63 5/8 inches (between wheel mounting surfaces)
- Fluid Capacity: 3 quarts of 85w-140, non-synthetic (API GL-6 rated only)

Please Note: Housing and Axle Packages require a 9-inch third member assembly and compatible brake package to complete the rearend.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
