Dakota Digital 6-Gauge Assembly HDX With Black Alloy Style Face F-100 1961-1966 / Bronco 1966-1977

Looking to upgrade the interior of your classic 1961-1966 F-100 or your 1966-1977 Bronco to make it feel a bit more modern? Well, a great place to start would be with this Dakota Digital VHX 6-Gauge Assembly with Black Alloy Style Gauge Faces from CJ Pony Parts! With many different features and the ability to customize the needle, sweep and display colors of the gauge display independently really gives your Bronco a customized appearance.

Dakota Digital HDX Gauge Display HDX-66F-BRO Includes:
- Speedometer - 0-160 MPH Analog, 0-255 MPH Digitally
- Fuel Level - Empty-Full Analog, 0-99% Digitally
- Tachometer - 0-8,000 Analog, 0-9,990 Digitally
- Voltmeter - 9-17 VDC Analog and Digitally
- Oil Pressure - 0-80 PSI Analog, 0-100 Digitally Displayed in 1 psi Increments
- Water Temperature - 100-260F Analog, 100-300F and 40-150C Digitally

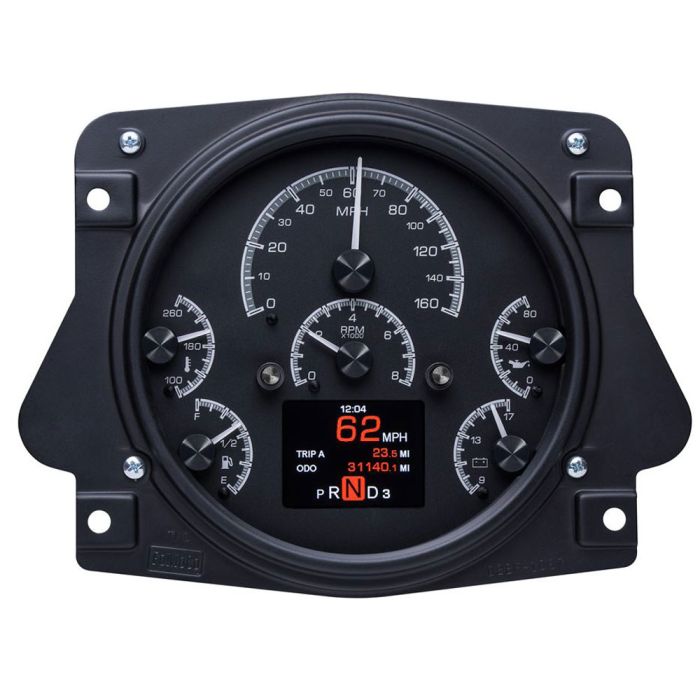

The HDX 6-Gauge Assembly from Dakota Digital is an all in one unit that offers a lot of control over your gauge display. Six analog instrument gauges are joined by the HDX’s 2.4” full-color TFT message center. This message center can display the different engine parameters digitally for a more accurate reading as well as a few performance meters such as 0-60 times and 1/4 mile times.

Performance Meters:
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High-speed recall
- High RPM recall

The HDX gauge display features dead-faced indicators, meaning that you will not see the indicator symbol until the light has lit for the indicator in use. This makes for a much cleaner looking, and clutter free display. Calibration and personal settings can be easily set with the built-in capacitive touch buttons or with the Bluetooth app which is available on Apple and Android devices. The HDX system even allows you to personalize the display with over 30 selectable color options and the ability to independently change the needle color, sweep color, and TFT display color. This allows you to truly customize your gauge display.

Indicators:
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- Two Auxiliary input indicators with user-programmable labels
- Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Dakota Digital’s HDX system will include a water temperature sensor, oil pressure sensor, cable driven speed sensor/generator, bushings and of course the HDX central control box.

Included Sensors and Fittings:
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft. harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft. harness
- Cable Driven Speed Sensor: Replaces Ford speedometer cables with a 10 ft. harness
- Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

*Bezel not included. Can use OEM or reproduction style bezel.

If you are looking to replace the original gauges on your early model Bronco, CJ Pony Parts has a great brand of equipment for you to look at: Dakota Digital. Dakota Digital manufactures restoration and replacement style gauges for early model Broncos that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Dakota Digital HDX-66F-BRO VHX 6-Gauge Assembly with Black Alloy Style Gauge Faces for your 1961, 1962, 1963, 1964, 1965 or 1966 F-100 or your 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 or 1977 Bronco from CJ Pony Parts today!
