Dakota Digital Gauge System VHX Silver Alloy Style Face F-100 1953-1955

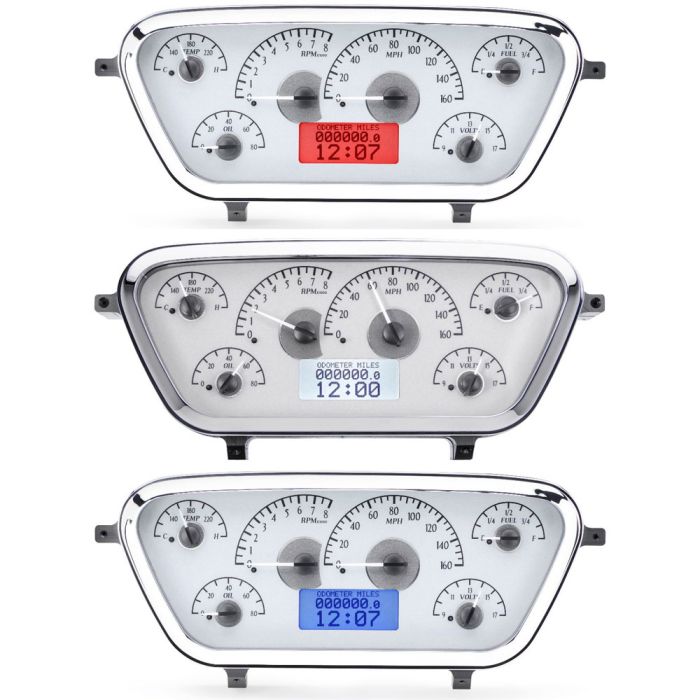

While driving a classic 1953-1955 F-100 looks absolutely stunning from the outside, on the inside some of the gauges can be difficult to get accurate information from, especially during night driving. With that in mind Dakota Digital has created this VHX Gauge System with a Silver Alloy Style Face (VHX-53F-PU-S). Designed to fit directly into the stock dash of your F-100 this new VHX system includes a chromed, machined-6061 aluminum dash bezel.

The list of features in this not-so-simple Gauge System include fully lit needles, backlit faces and a highly visible LCD message center. In true patriotic fashion, the LCD message center features a red, white or blue back light. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. Some of the behind the scenes features include the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy and user-customizable display feedback.

Programmed and operated by the push of a button, these gauges simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

These resto-mod, direct-fit gauges from Dakota Digital’s VHX Series will revolutionize your classic 1953-1955 F-100 in the same way they have revolutionized the instrumentation industry!

Analog Gauges:
- Speedometer: 0-160 MPH
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 PSI
- Water Temperature: 100F-260F
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9- 17 VDC
- Lighting: Backlit
- Finish: Silver Alloy Style

Digital Message Center Features
Standard Displays:
- Odometer: One time user settable, Million Mile
- Dual: A/B Trip Meter 0-9,999.9
- Clock: 12 hour
Performance Meters:
- 0-60 MPH Timer (0-100KMH)
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall
Gauges:
- Speedometer (0- 255 MPH/kmh)
- Tachometer (0- 9,900 RPM)
- Oil Pressure (0-100 psi displayed in 1 psi increments)
- Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
- Voltmeter (9- 17 VDC)
- Fuel Level (0-99% full)
Lighting:
- Auto-contrasting LCD display for optimal view in the brightest of sunlight
- LED backlit at night to match/ complete the look at night
- Choice of White, Red or Blue displays

Built-In Indicators:
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and engaged when vehicle is equipped)
- Gear Position (Optional GSS2000 sensor required)
- 4x4 (When vehicle is equipped)
- Wait to start (When vehicle is equipped)

Included Sensors:
- Water temperature with 10ft harness
- Oil pressure with 10ft harness
- Speed sensor with 10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

Pushbutton Calibration:
- Mounted pushbuttons are used to calibrate the speedometer, set the cylinder count and fuel level gauge
- These same included buttons are used to access all of the information from your LCD Digital Message Center

Please Note: The Dakota Digital Universal Gear Shift Indicator Sending Unit for Dakota Digital HDX, VFD and VHX Assemblies (Product #: GSS2000) is sold separately and is needed for gear indicator function.

Order this Dakota Digital VHX Gauge System with a Silver Alloy Style Face (VHX-53F-PU-S) for your 1953, 1954 or 1955 F-100 today from CJ Pony Parts.
