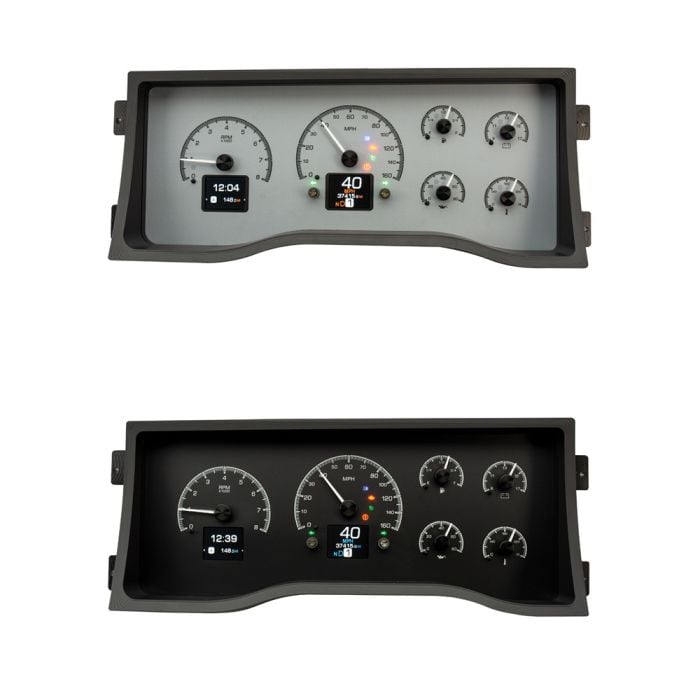

Dakota Digital HDX Instrument Cluster With Alloy Background Chevrolet/GMC C/K 1995-1998

Dakota Digital designed their HDX Instrument Cluster to completely restore and upgrade the dashboard of your 1995-1998 Chevrolet or GMC C/K truck. The cluster features a sleek Alloy Background in your choice of a black or silver exterior. The cluster includes six new gauges that are vintage-inspired, so they fit right into place. The direct-fit design makes installing the cluster as easy as swapping out the original. LED lighting makes the gauges easy to read while driving at night. The colors and brightness can be adjusted to meet your preferences. Calibration settings are handled through the onboard capacitive touch switches or remote Bluetooth app. The speedometer and fuel level calibrations are completed through a few buttons and a short test drive, so you can hit the road in no time. Dakota Digital makes their HDX Instrument Cluster right here in the USA.

Features and Benefits:
- Modern LED Lighting
- Includes 6 New Gauges
- Simple to Calibrate Design
- Easy to Install
- Multiple Color and Brightness Options
- Day and Night Settings
- Made in the USA

Standard Displays:
- Odometer (one time user settable, Million Mile)
- Dual (A/B) Trip Meter (0 - 9,999.9)
- Clock (12 hour)
- Estimated Range/Miles to Empty

Performance Displays:
- 0-60 MPH Timer
- 1/4 and 1/8 Mile Time
- 1/4 and 1/8 Mile End Speed (trap speed)
- High Speed Recall
- High RPM Recall

Gauges:
- Turn Signals (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and Engaged when equipped)
- Gear Position (Requires GSS-3000 --sold separately)
- 4 x4 (when equipped)
- Wait to Start (when equipped)
- Two Auxiliary Input Indicators with User-Programmable Labels
- Red LED Indicator for Quick Notice of Warning Condition (except speedometer)

Lighting:
- 30+ Color Options for Needle, Sweep and Digital TFT Display

Brightness:
- Controlled Through HDX Setup Menu

Themes:
- 12 Factory Preset Color Themes
- Can Customize Each Zone Individually
- Full LED Back Lighting
- Color Customizable
- Day/Night Settings

Included Sensors:
- Water temperature (10-ft harness)
- Oil pressure (10-ft harness)
- Speed sensor (Replaces GM-style speedometer cables with 10-ft harness)
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT Bushings along with Bushings for 12mm and 16mm x 1.5 Threads

Please Note: This new gauge system will fit your 1995-1998 Chevrolet and GMC C/K’s original factory bezel--a new replacement bezel is NOT included. In order to have full gauge functionality, Dakota Digital's Gear Shift Indicator Unit (GSS-3000) must be purchased separately. Gear indicator functions will NOT be displayed without the separate indicator sending unit.

Vehicle Fitment:
- 1995-1998 Chevrolet and GMC C/K

Download the Bluetooth App to wirelessly control your gauges using your mobile device from the Apple App or Google Play App.
