Dakota Digital VFD3 Digital Instrument Gauge System F-100 1948-1950

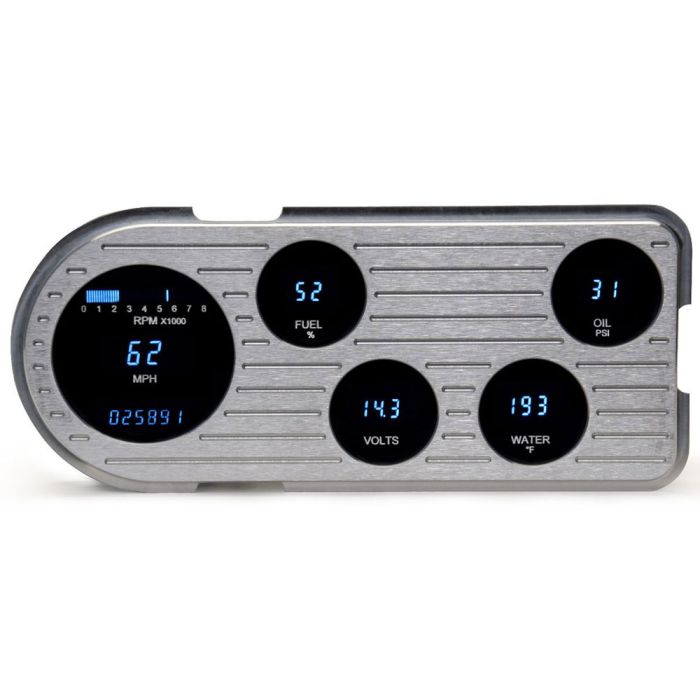

Combining classic style with modern technology is a great way to set your classic 1948-1950 F-100 apart from the crowd on the road or at the show. This Dakota Digital VFD3-49F-B VFD3 Digital Instrument Gauge System with Blue and Teal Lenses will bring your dashboard instrumentation into the 21^st century while maintaining the late 40s era style of the exterior. Your new Digital Instrument System features high brightness vacuum fluorescent displays for increased accuracy and improved functionality. The sturdy construction ensures your new instrumentation will last for years in the dash of your classic F-100.

Operated by the push of a button, this Dakota Digital instrumentation can be programmed to fit your needs on the fly. Simply mount the included push-buttons supplied with your gauges in a convenient and easily accessible location. Once mounted, these buttons are used to calibrate your speedometer as well as setting the cylinder count and the fuel level gauge. When your configuration is complete, the same buttons are utilized to access the wealth of information located in the Digital Message Centers.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal
- Digital Message Centers

Standard Displays:
- Odometer: One time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0-255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and right hand
- High Beam
- Check Engine
- Parking Brake
- Cruise Control: On/on and engaged when vehicle is equipped
- Gear Position: Optional GSS-2000 sensor required
- 4x4: When vehicle is equipped
- Wait to start: When vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses.

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-49F-B VFD3 Digital Instrument Gauge System for your 1948, 1949 or 1950 F-100 today from CJ Pony Parts.
