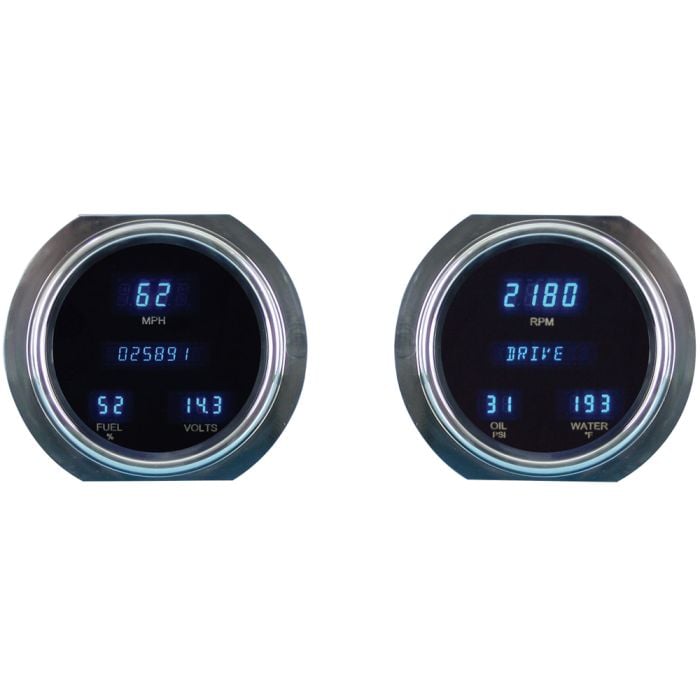

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1951-1952

Take the instrumentation system in your classic 1951-1952 F-100 to the next level with this Dakota Digital VFD3-51F-PU-Z VFD3 Digital Instrument Gauge System. This system will modernize the interior of your F-100 while maintaining the classic exterior you’ve come to love. Blue and teal lenses are included for further customization of your F-100 interior. Whether your gauges are malfunctioning or you are simply restoring the interior of your early 50s era truck, this instrumentation system is the perfect fit for your needs.

Programmed and operated through the simple push of a button, your new Digital Instrument Gauge System can be customized to suit your needs. Simply mount the included push buttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal
- Digital Message Centers

Standard Displays:
- Odometer: One time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0-255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and right hand
- High Beam
- Check Engine
- Parking Brake
- Cruise Control: On/on and engaged when vehicle is equipped
- Gear Position: Optional GSS-2000 sensor required
- 4x4: When vehicle is equipped
- Wait to start: When vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Gauge Instrument System includes chrome housing to fit 1951-52 Ford Pickup.

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-51F-PU-Z VFD3 Digital Instrument Gauge System for your 1951 and 1952  F-100 today from CJ Pony Parts.
