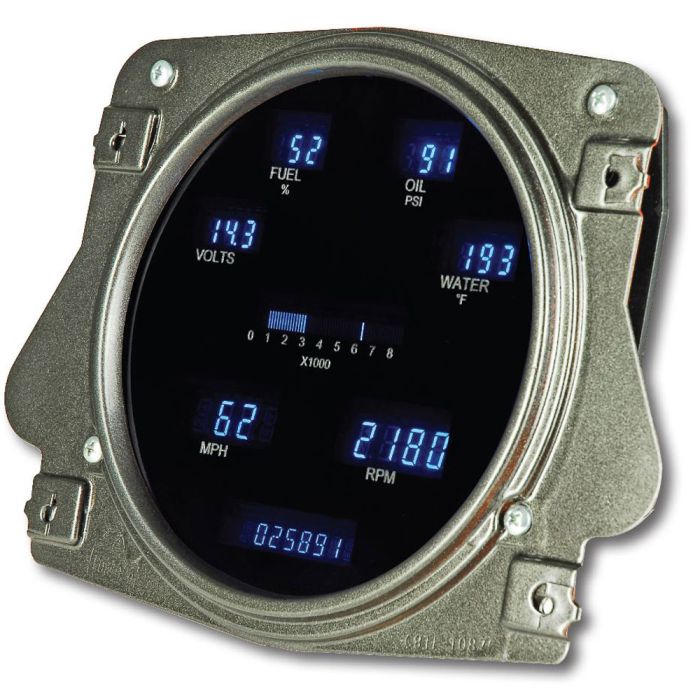

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1961-1966

If you’re looking to ensure the visibility and accuracy of the information coming out of your 1961-1966 F-100s instruments, this new Dakota Digital VFD3-66F-BRON-Z VFD3 Digital Instrument Gauge System will make sure you are. Featuring high brightness vacuum fluorescent displays that provide a lifetime of trouble free use, this gauge includes blue and teal lenses to further customize your new in-dash elements. This American made system will bring the interior of your F-100 pick-up rocketing into the 21^st century.

This full six gauge instrument system fits directly into the single round opening of your factory bezel in your 60s era F-100 pickup. You may be required to cut some of the stock dash behind your factory bezel for fitment purposes.

Featuring push button operation, this Dakota Digital VFD3 Digital Instrument Gauge System is programmed by and then operated by the same button assembly. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal

Digital Message Centers:
- Standard Displays: Odometer one time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0- 255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and Right
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On and Engaged when vehicle is equipped)
- Gear Position optional GSS-2000 sensor required
- 4x4 when vehicle is equipped
- Wait to start when vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Full 5 Gauge Instrument System fits into OEM bezel for 1957-1960 Ford Pickups.

Tech Tip: Full 6 Gauge Instrument System fits into OEM bezel with single round opening for 1961- 1966 Ford Pickup. Fits directly into existing bezel with single round opening with some cutting of stock dash, behind OEM bezel (not included).

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-66F-BRON-Z VFD3 Digital Instrument Gauge System for your 1961, 1962, 1963, 1964, 1965 or 1966 F-100 today from CJ Pony Parts.
