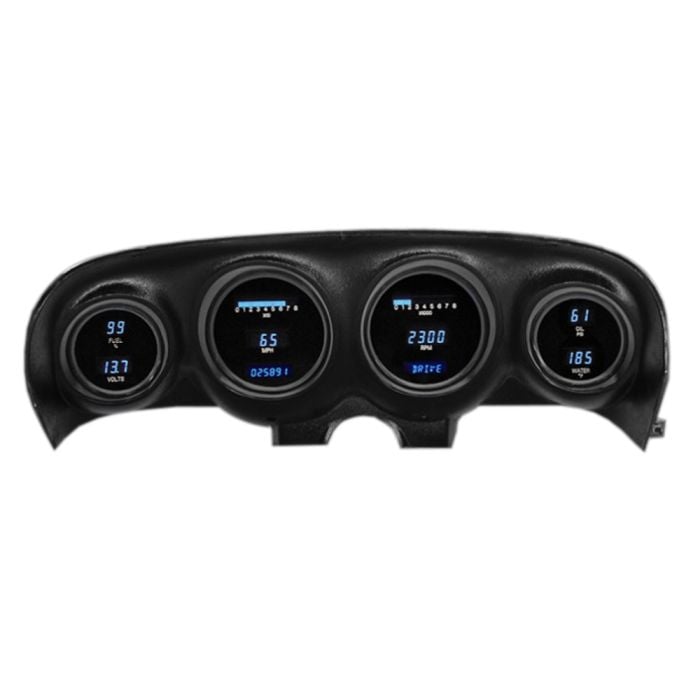

Dakota Digital VFD3 Digital Instrument Gauge System Without Bezel Mustang 1969-1970

Retain your factory style while massively upgrading the instrumentation gauges in your classic 1969-1970 Mustang with this Dakota Digital VFD3-69M-Z VFD3 Digital Instrument Gauge System without a Bezel. This six-gauge system is designed to mimic the factory appearance of your original instrumentation while taking the style and information distribution to a modern pinnacle.

Features and Benefits:
- Highly visible LCD message center
- User-customized display feedback
- Works with OEM or aftermarket sensors
- Easy set-up and troubleshooting
- Built-in illumination
- Built in blue or teal illumination

Some of the behind the scenes attributes include a micro-controlled precision stepper motor as well as, laboratory-grade, solid state sensors that allow for incredibly efficient readings. The solid-state sensors read water temperature, oil pressure and speedometer pulse generation. In addition to being fully programmable for various tire sizes and rear-end gearing, the included speedometer effectively converts a mechanical speedometer cable to digital. The water temperature and oil pressure sensors have 1/8" NPT sensors along with bushings to adapt to 1/4", 3/8" and 1/2" NPT. The other displays will work with any sensor you have, OEM or aftermarket alike.

Digital Gauge Displays Include:
- Speedometer – 0 - 255 MPH
- Tachometer – 0 -17,500 RPM
- Water Temperature – 0 – 300F
- Oil Pressure - 0-99 psi
- Fuel Level - 0-99% d
- Voltmeter - 8-17 VDC

Gauge Indicators Include:
- Turn Signals  (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/Off for cruise control equipped vehicles)
- Gear Position (Optional sensor required)

Sensors Included:
- Water Temperature
- Oil Pressure
- Speed Sensor

Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual A/B Trip Meter (0-9,999.9)

Performance Meters:
- 0- 60 MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Please Note: The Dakota Digital Gear Shift Indicator Sending Unit (Product #: GSS2000) is sold separately and is needed for gear position indicator function.

*Does not include instrument bezel, must be purchased separately.

Dakota Digital manufactures restoration and replacement style gauges and gauge pods for early model Mustangs that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Dakota Digital VFD3-69M-Z VFD3 Digital Instrument Gauge System without a Bezel for your 1969 or 1970 Mustang today from CJ Pony Parts.
