Diode Dynamics Lightbar Kit SS5 Grille CrossLink Combo Raptor 2017-2020
Highlights
- Six Ultra-Intense LED Pods
- Single-Piece Aluminum Link
- Heavy-Duty Construction
- Control W/ OEM Aux Switch Bank
Diode Dynamics Stage Series 5 Grille CrossLink Combo Lightbar Kit for 2017, 2018, 2019, and 2020 Ford Raptors.

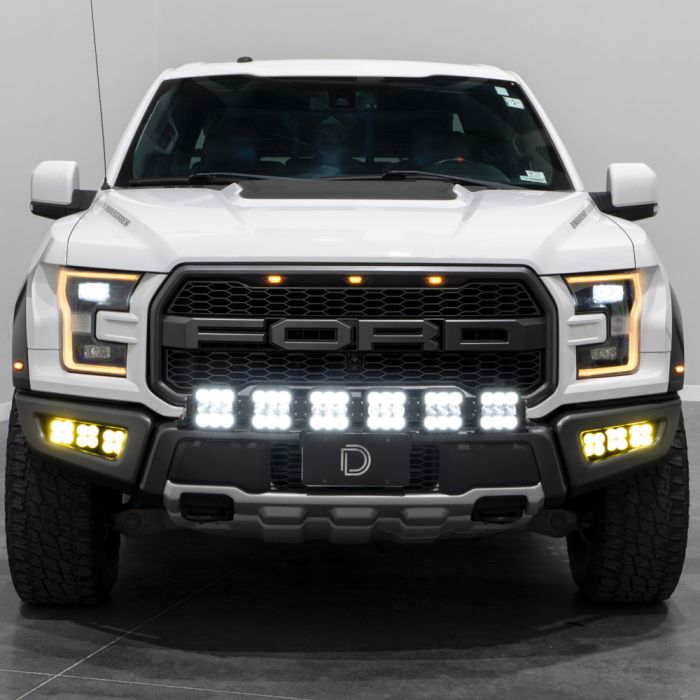

Give your 2017-2020 Raptor superior lighting with this Diode Dynamics SS5 Grille Crosslink Combo Lightbar Kit! It’s a direct-fit upgrade that bolts into place with the stock mounting points, so it’s easy to install the six SS5 LED pods in front of your factory grille. The LED pods are ultra-high intensity and have advanced TIR optics, giving you an impressive amount of visibility. Innovative CrossLink technology lets you link the six LED pods together, while the single-piece link and the pods’ inset threaded mounts allow you to make a rigid yet adjustable lightbar!
Features and Benefits:
- Bolt-on upgrade for 2017-2020 Raptor
- Mounts a six-pod CrossLink lightbar across the grille
- Ultra-high intensity & custom-engineered TIR optics
- White kit has 8 selectable backlight colors
- Torture-tested heavy-duty construction
- Control W/ factory aux switch bank
- Uses OEM mounting points for easy installation
- White or yellow light kit
- Sport or Pro options available
To suit your specific needs, a 6000K white lightbar kit and a 3000K yellow kit are both available. The yellow kit is excellent for those who need high contrast in severe weather. The white kit has a selectable backlight option, allowing you to choose between eight different color options. No need to navigate difficult programming, all you need to do is switch the power on and off to change the color. The LED pods’ backlights illuminate the TIR optics, producing a distinct accent light. This backlight option is perfect for those who want a touch of style or visibility when the main beam is off!
This kit includes a factory-correct aux switch adapter wire that connects to the harness, giving you the ability to control your lights with your OEM switch bank. Two switches for the main beam and backlight will be used. Don’t have a stock switch bank? No worries, this kit contains a toggle switch adapter to mount a switch!
To guarantee maximum performance, the beam pattern options are designed with optical simulation modeling to efficiently shape the light output. This product’s combo light pattern has driving and flood optics, shining light downrange in a 30x20 driving beam and filling the surrounding area, creating a 70x30-degree pattern. The middle row of driving optics and the top and bottom flood optics give you light in all kinds of conditions. To top it off, you can choose between a 40W Sport light kit that’s great for everyday use or a 90W Pro kit that is ideal for dark, off-road adventures!
Kit Includes:
- (2) Application-specific heavy-duty steel brackets
- (2) Low mount heavy-duty steel brackets
- (6) Stage Series 5” LED pods
- (1) Heavy-duty single-output 4-pin wiring harness or (1) Ultra heavy-duty single-output 4-pin wiring harness
- (5) Heavy-duty CrossLink splitter wiring harnesses or (4) Ultra heavy-duty CrossLink splitter wiring harnesses and (1) Ultra heavy-duty terminating wiring harness
- (1) CrossLink end mount kit
- (5) Crosslinks with hardware
- Installation Guide
Please Note: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
California Residents: Proposition 65 Warning
Related Categories: Ford F-150 Raptor Parts, Ford F-150 Parts, F-150 Raptor Body & Appearance, F-150 Raptor Lighting, F-150 Raptor Fog Lights

Installation Difficulty

Novice skill is required for this installation.
