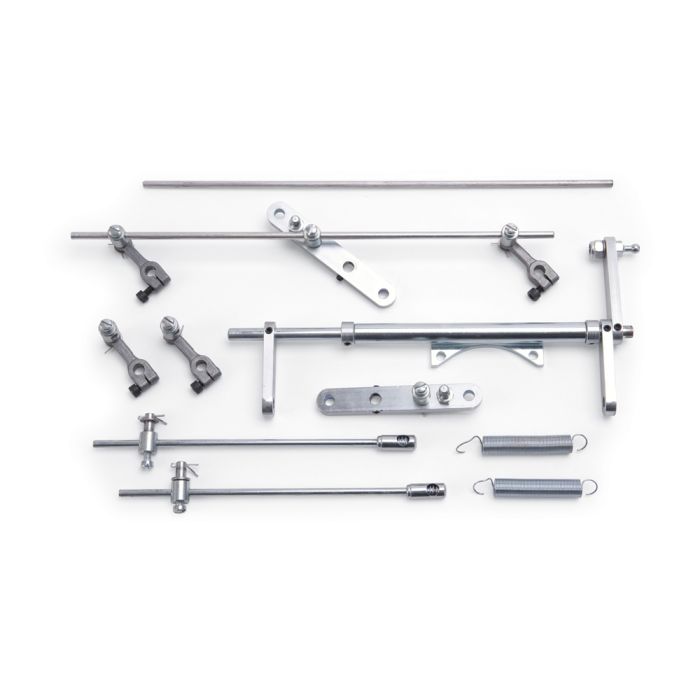

Edelbrock 94 Carburetor Throttle Linkage Kit Straight For Small Block Chevy X1 Manifold

Features and Benefits:
- Straight throttle linkage kit
- Fits Edelbrock 94 carburetor on Small Block Chevy engines
- Supports (x6) 2-barrel carburetors on X1 manifold
- Non-progressive design opens all carbs at once
- Maintains throttle angle relative to pedal
- Extended length throttle shaft offers a bolt-on installation
- Included control arm and ball end stud connects to throttle rod/cable
- Made in the USA

This Straight Throttle Linkage Kit bolts onto Edelbrock 94 carburetors using an extended length throttle shaft. It supports six (x6) 2-barrel carburetors on a Small Block Chevy engine with an X1 manifold, offering a non-progressive design. This makes all carburetors open simultaneously rather than one-by-one. This operation also maintains your throttle angle. This Throttle Linkage Kit (1031) is made by Edelbrock in the USA.

Installation Notes:
- The throttle linkage should be installed on a level surface with the manifold removed from the engine.
- Identify where the throttle rod/cable ends so the linkage control arm can mount to the linkage operating shaft.
- Keep breathers and/or PCV valves out of the way of the linkage.
- All carbs should have throttles wide open during any adjustments to keep operations synced.
- Ensure no carb arms are inverted once adjustments are complete.
