Edelbrock Accu-Drive Camshaft Gear Drive Big Block Chevrolet

Edelbrock:
7891
$260.95

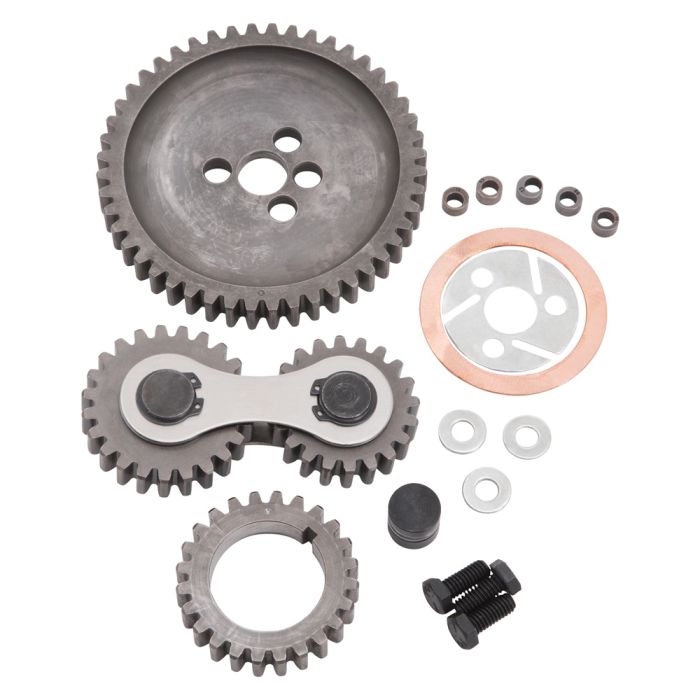

Edelbrock Accu-Drive Camshaft Gear Drive Big Block Chevrolet

Edelbrock Part # 7891 Accu-Drive camshaft gear drive kit for big-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive kit for big-block Chevy engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts. Features Include: - Accurate timing control...No chain to stretch - Provides multiple cam timing adjustments for optimum performance - Smooth cam rotation for precise valve timing

Mounting Hole Quantity 3
Mounting Hole Diameter 0.399 in
Thrust Bearing Included Yes
Keyway Notch Yes
Chain Included No
Sprocket Type Gear
Tooth Quantity 48
Tooth Width 0.1534 in
Adjustable No
Diameter 4.954 in
Inside Diameter 0.751 in
Material Steel
Outside Diameter 4.954 in
Thickness 0.585 in

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
