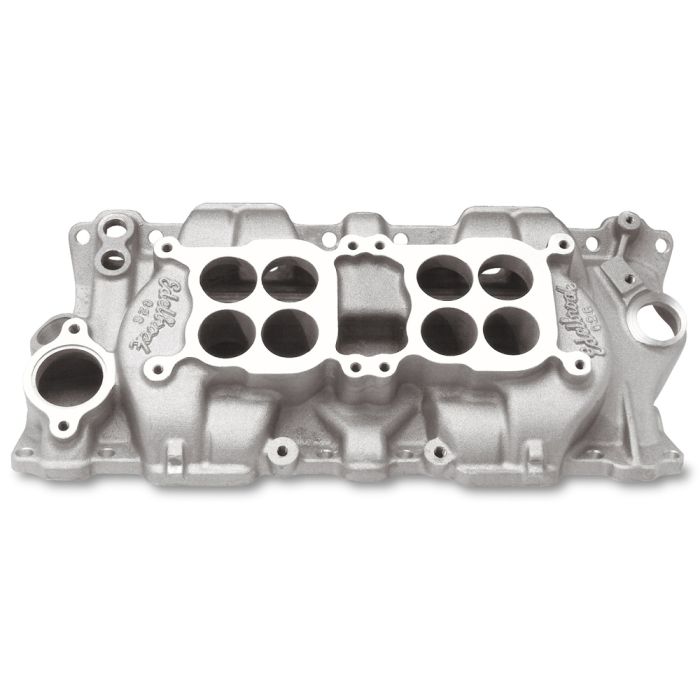

Edelbrock C-26 Dual Quad Intake Manifold For Non-EGR Small Block Chevy

Features and Benefits:
- Fits 1955-1986 Small Block Chevrolet engine with 262-400 c.i.d.
- Machined for use with a 4-bolt carburetor pattern
- Includes A/C bosses and front oil filler tube boss
- 6-7/16" carb center-to-center distance
- Aluminum construction
- Dual plane type manifold
- Made in the USA

Edelbrock's C-26 Dual-Quad Intake Manifold fits Small Block Chevy engines with a c.i.d. of 262 to 400. It is a dual plane type manifold that's made in the USA from aluminum. It is machined for use with a 4-bolt carb and can operate at 2,500 to 6,500 RPM. It also features a rear maximum height of 3.55 inches. Air conditioning bosses and a front oil filler tube boss are included with this intake manifold (5425) from Edelbrock.

Tech Tip: Use with Performer-Plus cam #2103 for low-end torque or Torker-Plus cam/kit #5002 for top-end power.

Please Note: Do NOT use an end seal gasket. Do NOT overtighten NPT/pipe fittings.

Specifications:
- Carb Pad Height: 3.250"
- Center Maximum Height: 3.250"
- Front Maximum Height: 2.950"
- Rear Maximum Height: 3.550"
- Port Exit Dimensions: 1.18" x 1.90"

Vehicle Fitment:
- 1975-1986 Chevrolet C10
- 1979-1986 GMC C1500
- 1979-1986 GMC C2500
- 1979-1986 GMC C3500
