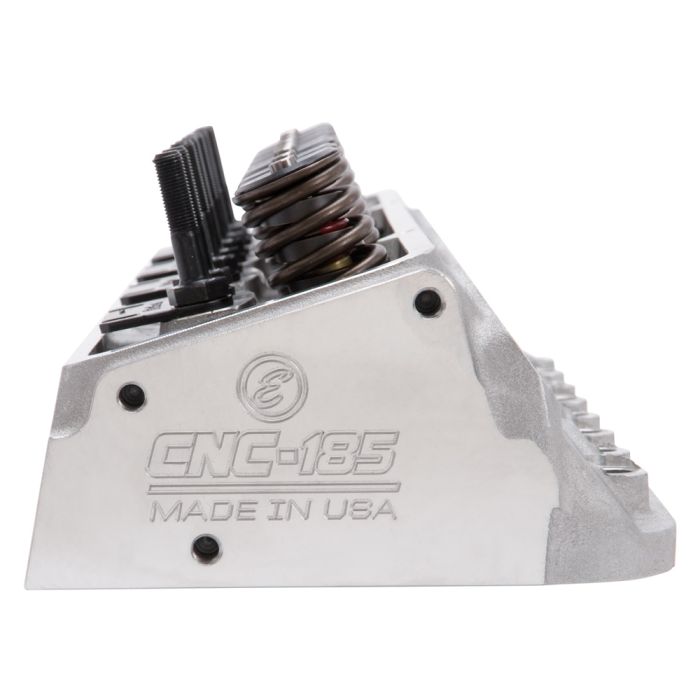

Edelbrock E-CNC Complete Hydraulic Roller Camshaft 64cc Cylinder Head Small Block Chevy

Get your small block Chevy engine the Edelbrock complete hydraulic roller camshaft 64cc cylinder head, precision-crafted for power optimization (79895). Designed for high-performance street and racing applications, this cylinder head is CNC-ported to maximize horsepower and torque output. It features high-quality, lightweight valve springs and heavy-duty hardware. When combined, it ensures the cylinder head has optimal stress management and maximum lift for enhanced performance.

Features and Benefits:
- Ideal for high-performance street and racing applications
- CNC ported for maximum horsepower and torque
- High-quality lightweight valve springs for better stress management
- Heavy-duty hardware for maximum lift
- Maintains stock port location
- Uses intake flange bolt pattern for use with 1986 and earlier manifolds
- Improved airflow and engine performance potential
- Angled spark plugs for increased fuel efficiency
- Compatible with hydraulic roller applications
- Made in the USA

Compatible with 1986 and earlier intake manifolds, this cylinder head offers improved airflow. Equipped with angled spark plugs, it promotes increased fuel efficiency, making it ideal for street and track use.

Specifications:
- Combustion chamber volume: 64.0 cc
- Deck height: 9.025”
- Deck thickness: 0.562”
- Exhaust valve diameter: 1.600”
- Guide plates included: yes
- Intake runner volume: 185.0 cc
- Material: aluminum
- Push rod diameter: 0.312”
- Rocker stud diameter: 0.375”
- Valve angle: 23-degree
- Valve spring diameter: 1.460”
- Valve spring maximum lift: 0.575”
- Valve stem diameter: 0.341”

Tech Tip: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with a flat gasket seat.
