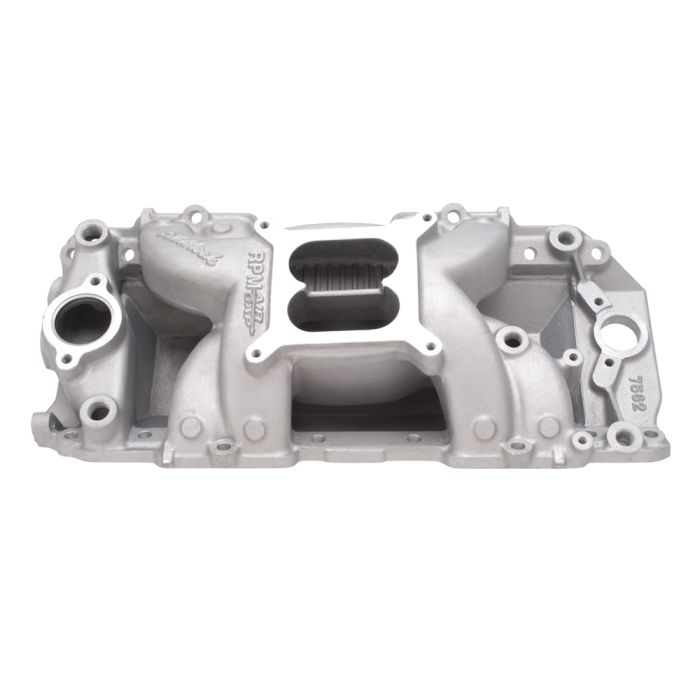

Edelbrock Intake Manifold Performer RPM Air-Gap 2-R Big Block Chevrolet

Available from Edelbrock, this Performer RPM Air-Gap 2-R Intake Manifold (7562) is the solution for your Big Block Chevrolet Engine with high-performance rectangular port heads. The dual-plane design makes it an excellent choice for street applications when compared to single plane options.

Features and Benefits:
- Open-Air Space Separates Runers from Hot Engine Oil
- Dual-Plane Design Suitable for Street Applications
- Made of Aluminum in a Satin Finish
- Includes Rear Water Outlets and Nitrous Bosses
- Two Distributor Clamp Locations
- Proudly Made in the USA!

Specifications:
- Center Maximum Height: 5.220 Inches
- CNC Ported: No
- Front Maximum Height: 4.450 Inches
- Rear Maximum Height: 6.000 Inches
- Carb Pad Height: 5.22 Inches
- Port Exit Dimensions: 1.56 Inches x 2.24 Inches

The Performer RPM Air-Gap strategically separates the runners from high-temperature engine oil. The resulting air/fuel mixture is cooler, which in turn produces a denser charge and increased power. Edelbrock incorporates race-winning technology in the production of this Intake Manifold for the best performance.

Engine Applications:
- Street 396-502 c.i.d. Chevrolet V8
- High-Performance Rectangular-Port Heads Required

Tech Tips:
- Accepts all late model alternator and A/C brackets for the street.
- Recommended intake gasket: Edelbrock P/N: EDL7202.
- Recommended carburetor: Edelbrock AVS2 or Performer Series 750-800 cfm. Use bracket P/N: EDL8031 for 1972-1978.

Additional Notes:
- Will not fit under stock hood of Corvette, 1964-1967 Chevelle, or 1967-1981 Camaro.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant P/N: EDL1076. Do not use end seals gaskets.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
