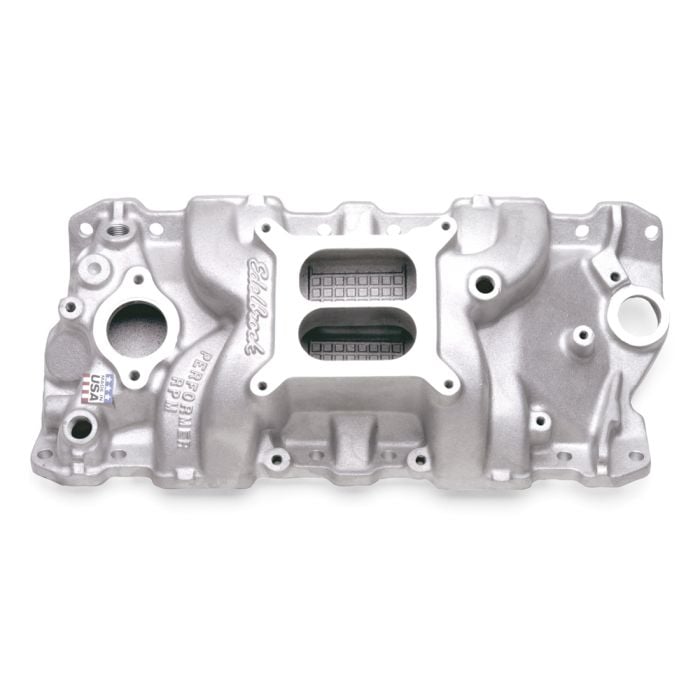

Edelbrock Intake Manifold Performer RPM Aluminum Chevrolet 262-400 Small-Block V8

This Edelbrock Performer RPM Intake Manifold (7101) fits your Chevrolet 262-400 Small-Block V8 engine with a dual-plane design. This manifold is the perfect option for use in high-performance street and marine engines!

Features and Benefits:
- Designed for 1955-1986 262-400 c.i.d. Chevy Small-Block V8
- Perfect for high-performance street/marine engines
- Offers max power and broad torque curve
- Dual-plane/high-rise design
- Single-plane power with dual-plane throttle response
- Aluminum construction with satin finish
- Made in the USA!

This Intake Manifold is made from aluminum with a satin finish. It is designed for maximum horsepower and a broad torque curve. Its high-rise, dual-plane design provides single-plane power with dual-plane throttle response. If threads extend into the lifter valley or coolant passage, ensure that sealant is used on the intake bolt threads. The NPT/pipe thread feature a tapered style. This Intake Manifold (7101) is made in the USA!

*Do NOT use end seals gaskets. Do NOT overtighten NPT/pipe fittings.

Specifications:
- Center Max Height: 4.72 inches
- Front Max Height: 4-1/5 inches
- Rear Max Height: 5-1/4 inches
- Carb Pad Height: 4.27 inches
- Port Exit: 1.16 x 1.92 inches
- Operating RPM Range: 1,500-6,500

Tech Tip: It is recommended to use Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 or #8036 for 1972-1978.

Please Note: Features provisions for an oil fill tube. Does not have provisions for exhaust heated or stock-style choke. Accepts late-model water necks, A/C, alternators, and H.E.I. Fits cast iron Chevy Bowtie heads but will not fit 1987 or later cast iron heads. Does not fit under a stock Corvette hood.
