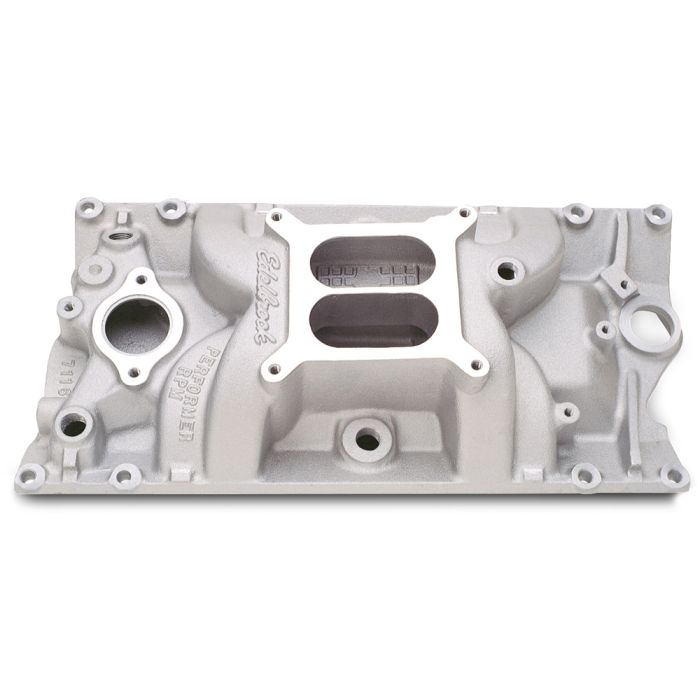

Edelbrock Intake Manifold Performer RPM For Vortec Heads Small Block Chevrolet

The Performer RPM Intake Manifold (7116) supplies the perfect mixture of air and fuel to be burned by your Small Block Chevrolet Engine. Use it with 1996 and later Vortec (L31) Cast Iron or Edelbrock E-Tec Aluminum Heads. Based on Edelbrock P/N: EDL7101, this Edelbrock Performer RPM Intake Manifold features a single four-barrel intake optimized for street rod, marine, and engine swap market applications.

Features and Benefits:
- Aluminum Construction
- Satin Finish
- Dual Plane Design
- External Water Bypass Boss Machined into Front of Water Crossover
- 1,500 RPM to 6,500 RPM Power Band

Specifications:
- Center Maximum Height: 4.720 Inches
- CNC Ported: No
- Front Maximum Height: 4.200 Inches (.70" taller than P/N: EDL2101)
- Rear Maximum Height: 5.250 Inches (.70" taller than P/N: EDL2101)
- Carb Pad Height: 4.27 Inches
- Port Exit Dimensions: 2.05 Inches Tall with Slanted Side Walls

Engine Applications:
- Small Block Chevrolet Engines (262-400 c.i.d.) with 1996 and later Vortec (L31) Cast Iron or Edelbrock E-Tec Aluminum Heads

Tech Tips:
- Recommended carburetor: Edelbrock AVS2 or Performer Series 650-800 cfm. Manifold accepts square-bore carbs only. Use bracket P/N: EDL8032 for 1972-1978.
- Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket P/N: EDL8032.
- Recommended intake gasket: Edelbrock P/N: EDL7235.
- Use P/N: EDL8516 Edelbrock bolt kit.
- Edelbrock does not recommend the use of an economy-type carburetor such as the Performer series P/N: CARBEDL1 or P/N: CARBEDL9 on Performer RPM Intake Manifolds. Economy-type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake.

Additional Notes:
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant P/N: EDL1076. Do not use end seals gaskets.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
- Do not overtighten NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Will not fit under stock Corvette hood.
